Description
Part Number: JD-603D

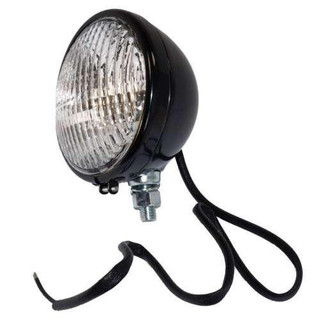

6 Volt Complete Headlight Assembly
6 volt complete headlight assembly for Allis Chalmers, Avery, Cockshutt, John Deere, Minneapolis Moline, Oliver, and White applications.
4-3/4" curved lens with 1-1/2" stud length. Can be installed on front or rear.
Fits
- Allis Chalmers WC (Usable as a rear light on SN: 74330 & up)
- Allis Chalmers RC (Usable as a rear light)
- Allis Chalmers WF (Usable as a rear light on SN: 1904 & up)
- Avery A, BF, BG, R, V
- Cockshutt 20, 30, 35 Blackhawk, 40, 40 Blackhawk, 50, 50 Blackhawk, 540
- Co-Op with Continental F124: E2
- Co-Op with Buda Over Head Valve Engine: E3, E4, E5
- John Deere 820 2 cylinder, A (Styled WITH SHEET METAL DASH sn 584001 and up), AO, AR, B (WITH SHEET METAL DASH sn 201000 and up), BN, BNH, D (sn 143800 and up), H, R, 50, 60, 70, 720, 730 (Diesel), 70, 80, 520, 530, 620, 630, 720, 730
- Minneapolis Moline A, BF, BG, R, V
- Oliver HG, OC-3
Replaces / Cross Reference
- Allis Chalmers 70208233
- Allis Chalmers 208233
- Allis Chalmers 70237100
- Allis Chalmers 237100
- Avery AT269
- Avery 120017
- Cockshutt TO7720
- Cockshutt TO19437
- Cockshutt TO19438
- John Deere AF3817R
- John Deere AA3075R
- White 114136
- White 115176
- White 115465
Specs
- 4-3/4" curved lens
- 1-1/2" stud length
Notes
- Can be installed on front or rear.
- Black bullet style.
- Interchangeable with IH-352D, IH-353BD, IH-354D, IH-436D, IH-355D, AB-320D, and IH-475D.
