Brake Parts

Brake return spring for Allis-Chalmers 170, 175, and late D17 models.Part Number: 70237328FitsAllis Chalmers - D17 (Sn# 42001 & up)Allis Chalmers - 170Allis Chalmers - 175Replaces / Cross Reference70237328237328Specs13-1/2" Long1" spring body OD0...

Brake Band Only Sold individually for the listed Allis Chalmers tractors. Part Number: 70277379-NH Fits Allis Chalmers - D17 (SN 42001 and up), D19, D21, 170, 175, 180, 185, 190, 190Xt, 190XT III, 200 (up to SN 4000) Replaces / Cross...

Brake lock lever spring for select Allis Chalmers tractors and hydraulic remote adjustment rod applications. Part Number: 70230364Fits Allis Chalmers D10 Allis Chalmers D12 Allis Chalmers D14 Allis Chalmers D15 Allis Chalmers D17 Allis Chalmers...

Brake pedal spring for Allis Chalmers 190, 190XT, 190XT III, 200, and D21 tractors.Use the verified model fitment and replacement number below when matching your part.Part Number: 70239305FitsAllis Chalmers 190Allis Chalmers 190XTAllis Chalmers 190XT...

Brake Band Hardware Kit for Allis-Chalmers and Case tractors.2 kits used per side. Order 4 kits if servicing both sides.Part Number: 70235614FitsAllis Chalmers - D17 (SN 42001 & up), D19, D21, 170, 175, 180, 185, 190, 190XT, 200 (up to SN 4000)Case -...

Brake Friction PlateFor Allis Chalmers D17, 170, 175, 180, and 185 models.Part Number: 70237215FitsAllis Chalmers D17Allis Chalmers 170Allis Chalmers 175Allis Chalmers 180Allis Chalmers 185Replaces / Cross Reference23721570237215

Brake pivot pin for Allis-Chalmers 200 tractors with serial number 4001 and up.Part Number: 70256977FitsAllis-Chalmers 200 (SN 4001 and up)Replaces / Cross Reference70256977Specs3.850" long0.874" diameter

Brake band pivot pin for select Allis Chalmers tractors.Part Number: 70249980Fits190, 190XT SN 16940 and up200 up to SN 4000Replaces / Cross Reference70249980Specs3.650 long0.436" diameter

Brake plate assembly with lining for select Allis Chalmers tractors. Listed with 20 spline and 6.50" O.D. specifications.Part Number: 70277327FitsAllis Chalmers D17 S/N 42001 & upAllis Chalmers 170Specs20 spline6.50" O.D.

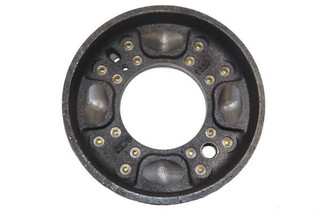

Part Number: 70277329Allis-Chalmers Brake Drum AssemblyBrake drum assembly for Allis-Chalmers D19, 190, and 190XT.FitsD19190190XTReplaces / Cross Reference70235603Ordering NotesCheck mounting location, dimensions and tractor application before ordering...

Brake plate assembly with lining for Allis-Chalmers 170, 180, and 185 models.Part Number: 70277326FitsAllis-Chalmers 170Allis-Chalmers 180Allis-Chalmers 185Replaces / Cross Reference7027732670248221Specs25 spline6.50 in. diameter

Allis-Chalmers Brake Pedal Return SpringPart Number: 70235327This brake pedal return spring is listed for Allis-Chalmers D19 tractors. Use it as a replacement when you need to restore brake pedal return action.FitsAllis-Chalmers D19

Upper Brake Pin for Allis-Chalmers tractors.New part identified as 70237217.Part Number: 70237217FitsAllis-Chalmers D17 Series IVAllis-Chalmers 170Allis-Chalmers 175Allis-Chalmers 180Allis-Chalmers 185

Lower Brake Pin for Allis Chalmers tractors.Fits D17 Series IV, 170, 175, 180, and 185 models.Part Number: 70237216FitsD17 Series IV170175180185NotesNo longer available from AGCO.

Brake Pin Puller Removal Tool for Allis-Chalmers WD, WD45, WD45 (diesel), and D17 (up to SN: 42000).Part Number: AC-3558DFitsAllis-Chalmers WDAllis-Chalmers WD45Allis-Chalmers WD45 (diesel)Allis-Chalmers D17 (up to SN: 42000)Mechanic NotesUseful when...

Brake band return spring for Allis Chalmers applications listed below. New part.Part Number: 70250446FitsAllis Chalmers D19Allis Chalmers 190Allis Chalmers 190XTAllis Chalmers 190XT IIIAllis Chalmers 200AC Gleaner Combines - L, G, F2, F3, FUni-Power...

Allis Chalmers D17, 170, 175, 180, 185Brake Band Return SpringPart Number: 70250447FitsD17170175180185Replaces / Cross Reference70250447250447Notes4 used per tractorOrdering NotesCheck spring location and tractor model before ordering.Compare length,...

Brake disc return spring for select Allis-Chalmers tractors, AC Gleaner combines, and AC miscellaneous equipment.Part Number: 70250435FitsAllis Chalmers - D17, D19, D21, 170, 175, 180, 185, 190, 190XT, 190XT III, 200 (Prior to SN 4001)AC Gleaner Combines...
