Allis Chalmers 185 Tractor Parts

About the Allis-Chalmers 185

The Allis-Chalmers 185 was introduced in 1970 as one of the company's Crop Hustler tractors. Its six-cylinder diesel, power steering, continuous PTO, and partial power-shift transmission gave it the size and equipment needed for heavier field work.

The 185 remained in production through 1981 and is identified as a diesel model in the Allis-Chalmers Heritage catalog. Its beginning serial number changed each year, so the tractor serial number helps identify the correct year within the 185 production run.

Serial Number Reference

Serial number locations: The tractor serial number is at the front of the torque housing on the right side. The engine serial number is on the front left side of the cylinder block near the alternator.

The table below shows the beginning tractor serial number for each Model 185 year:



1970-1973
Model 185 year Beginning serial number
1970 1,001
1971 1,952
1972 2,935
1973 3,763
1974-1977
Model 185 year Beginning serial number
1974 4,961
1975 6,542
1976 8,292
1977 10,003
1978-1981
Model 185 year Beginning serial number
1978 11,631
1979 13,160
1980 14,672
1981 15,648

Total production: 14,961 Model 185 tractors (diesel).

Allis-Chalmers 185 Paint Reference

For restoration planning, the Allis-Chalmers 185 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers 185 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream Cream, Aluminum Persian Orange 2 Persian Orange 2

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • A two-position push-pull ignition and light switch for an Allis-Chalmers farm tractor, shown isolated on a white background. It has a rectangular metal housing, exposed electrical terminals on top, and a yellow pull knob on a threaded shaft.

    Universal 2 Position Push Pull Ignition Light Switch

    Allis-Chalmers
    $7.50
    SSW2809
    Universal 2 position push/pull switch for ignition or light use. It is non-fused and includes a plastic knob. Part Number: SSW2809 Fits Allis Chalmers - Various Case - Various Cockshutt -...
    Add to Cart
  • Round AGCO OEM Allis-Chalmers water temperature gauge for a farm tractor, with a chrome bezel, white dial, white-green-red temperature range, and needle pointing to the low end.

    OEM Allis Chalmers Water Temperature Gauge

    AGCO
    $85.50
    70240989
    OEM AGCO water temperature gauge for listed Allis Chalmers tractors, including 175 Diesel and 190XT with effective serial number 2695 and up.Part Number: 70240989FitsAllis Chalmers 175 DieselAllis...
    Add to Cart
  • Round Allis-Chalmers ammeter gauge for farm tractors, marked AMPERES with a 60-0-60 scale, negative and positive indicators, and a central needle at zero.

    OEM Allis Chalmers Ammeter Gauge 60-0-60

    AGCO
    $44.50
    70254407
    OEM AGCO ammeter gauge marked Amperes 60-0-60 for listed Allis Chalmers tractors and power units.Part Number: 70254407FitsAllis Chalmers D10Allis Chalmers D12Allis Chalmers D14Allis Chalmers D15Allis...
    Add to Cart

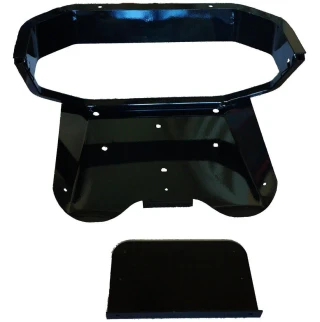

  • Black metal Allis-Chalmers Super Deluxe tractor seat frame with a separate flat mounting plate, shown against a white background.

    Allis Chalmers Super Deluxe Seat Frame 70243509

    Allis-Chalmers
    $339.50
    70243509
    Allis Chalmers Super Deluxe Seat Frame for a 3 piece seat.New reproduction in primer grey. Bolts not included.Part Number: 70243509FitsAllis Chalmers - 180, 185, 190, 190XT, 190 XT III, 200, 210,...
    Add to Cart
  • Round Allis-Chalmers tractor fuel gauge with a silver bezel, white face, black needle, and fuel-level scale marked E, 1/2, and F; the low-fuel segment is red. Part number 70240988.

    Allis Chalmers OEM Fuel Gauge 70240988

    Allis-Chalmers
    $85.50
    70240988
    Allis Chalmers OEM Fuel Gauge for select tractors.This dash mounted fuel gauge is listed as AGCO Brand.Part Number: 70240988FitsAllis Chalmers - D21, 170, 175, 180, 185, 190, 190XT, 190 XT...
    Out of stock
  • Allis-Chalmers Tractor Parts Catalog 2025, vintage farm tractor parts catalog cover with sunset landscape background.

    Allis Chalmers Tractor Parts Catalog

    Allis-Chalmers
    $0.00
    0000
    The Allis Chalmers Tractor Parts Catalog (2025) is a comprehensive parts guide for Allis Chalmers tractors. It is available as a hard copy and as a printable PDF catalog. Part Number: 0000 Current...
    Add to Cart
  • Red cylindrical Baldwin hydraulic filter for Allis-Chalmers farm tractors, with black installation pictograms printed on the side.

    Hydraulic Filter for Allis-Chalmers D15 D17 D19 D21 180 185 190 190XT

    Baldwin
    $16.00
    70239930
    Hydraulic Filter for Allis-Chalmers D15, D17, D19, D21, 180, 185, 190, and 190XT.Also fits the 860 Cotton Stripper (1978) with diesel engine (590577-4302 - 9999), 82 SH Side Mounted Mower, and I40 /...
    Add to Cart
  • Close-up of a glossy red Allis-Chalmers throttle/fuel shut-off knob, part 70254706, with a hollow mounting opening at one end, on a white background.

    Allis Chalmers Throttle / Fuel Shut Off Red Knob 70254706

    Allis-Chalmers
    $9.75
    70254706
    Red throttle / fuel shut off knob for select Allis Chalmers tractors.Fits Allis Chalmers 170, 175, 180, and 185.Part Number: 70254706Replaces / Cross Reference70254706254706FitsAllis Chalmers...
    Add to Cart
  • Cream-colored metal tractor seat pan for Allis-Chalmers D10, D12, D14, D15, D17, D19, and D21 farm tractors.

    Allis Chalmers Metal Seat Pan for D10, D12, D14, D15, D17, D19, D21

    Allis-Chalmers
    $188.00
    KM7539
    Allis Chalmers metal seat pan for select tractor models. Made in the USA with a steel frame and restoration-quality construction.Part Number: KM7539FitsD10D12D14D15D17D19D21Also fits 170, 175, 180,...
    Add to Cart
  • Black Allis-Chalmers small back bracket for farm tractors, shown as a flat rectangular plate with rounded rear corners, several mounting holes, and a folded front edge with holes. Fits models 180, 185, 190, 190XT, 200, 210, 220, and 220 FWA.

    Small Back Bracket - Allis Chalmers 180 185 190 190XT 200 210 220 220 FWA

    Allis-Chalmers
    $32.75
    KM7777
    Bracket to attach a smaller upper backrest to a large wraparound main backrest.Part Number: KM7777FitsAllis Chalmers - 180, 185, 190, 190XT, 200, 210, 220, 220 FWANotesBracket to attach smaller upper...
    Add to Cart
  • Curved Allis-Chalmers farm tractor back and armrest cushion with a black outer edge and cream-colored padded center, shown against a white background.

    Allis-Chalmers Back and Arm Rest Cushion

    Allis-Chalmers
    $236.00
    KM7022
    Part Number: KM7022Product OverviewBack and arm rest cushion for select Allis-Chalmers tractors. White and black on steel.FitsAllis-Chalmers 180Allis-Chalmers 185Allis-Chalmers 190Allis-Chalmers...
    Add to Cart
  • White, rounded rectangular upper backrest cushion with black edging for an Allis-Chalmers farm tractor.

    Allis-Chalmers Upper Back Rest Cushion

    Allis-Chalmers
    $82.00
    KM7020
    Part Number: KM7020Product OverviewUpper back rest cushion for select Allis-Chalmers tractors. White and black on steel.FitsAllis-Chalmers 180Allis-Chalmers 185Allis-Chalmers 190Allis-Chalmers...
    Add to Cart
  • White Allis-Chalmers farm tractor bottom seat cushion with a contoured shape and black sides, shown on a white background.

    Allis-Chalmers Bottom Seat Cushion

    Allis-Chalmers
    $195.00
    KM7021
    Part Number: KM7021Product OverviewBottom seat cushion for select Allis-Chalmers tractors. White and black on steel.FitsAllis-Chalmers 180Allis-Chalmers 185Allis-Chalmers 190Allis-Chalmers...
    Add to Cart

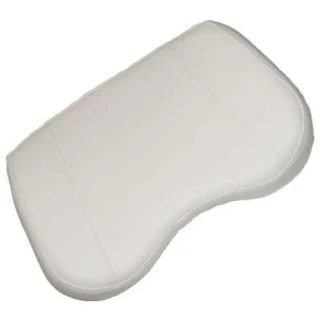

  • Light gray Allis-Chalmers tractor bottom seat cushion, compatible with models 180, 185, 190, 190XT, 200, 210, and 220.

    Allis Chalmers Bottom Seat Cushion for 180 185 190 190XT 200 210 220

    Allis-Chalmers
    $165.00
    YF142
    Bottom seat cushion for Allis Chalmers tractors. Fits 180 through 220 and 220 FWA models. All white on wood bottom seat cushion.Part Number: YF142FitsAllis Chalmers 180Allis Chalmers 185Allis...
    Add to Cart
  • White curved back and armrest cushion for an Allis-Chalmers farm tractor, model YF143.

    Allis-Chalmers Back and Arm Rest Cushion YF143

    Allis-Chalmers
    $102.00
    YF143
    Back and arm rest cushion for Allis-Chalmers tractors. Listed for specific models and finished in All Black on Wood.Part Number: YF143FitsAllis-Chalmers 180Allis-Chalmers 185Allis-Chalmers...
    Add to Cart
  • Light gray Allis-Chalmers upper back rest cushion for a farm tractor, shown alone on a white background.

    Allis-Chalmers Upper Back Rest Cushion YF144

    Allis-Chalmers
    $31.50
    YF144
    Upper back rest cushion for Allis-Chalmers tractors. Listed for specific models and finished in All White on Wood.Part Number: YF144FitsAllis-Chalmers 180Allis-Chalmers 185Allis-Chalmers...
    Add to Cart
  • One-quart can of Northern Fuel Tank Liner, a gas tank sealer for Allis-Chalmers farm tractors. The can has a blue-and-white label with yellow lettering and a silver metal lid.

    Gas Tank Sealer - 1 Quart Can

    Allis-Chalmers
    $69.99
    ACR2043
    Gas tank sealer in a 1 quart can.Part Number: ACR2043FitsAllis-Chalmers - VariousCase - VariousCockshutt - VariousFord - VariousInternational - VariousJohn Deere - VariousMassey Ferguson -...
    Add to Cart
  • Close-up of a silver 55-amp alternator with a black tachometer gear box and threaded pulley shaft, for Allis-Chalmers farm tractors.

    55 Amp Alternator with Gear Box for Tachometer for Allis-Chalmers D21, 170, 175, 180, 185, 190, 190XT, 190XT III, 200, 210, 220, H4, HD4

    Allis-Chalmers
    $258.50
    70245330
    55 amp alternator with gear box for tachometer for select Allis-Chalmers tractors. Tach drive is already bolted on.Part Number: 70245330FitsAllis Chalmers - D21, 170, 175, 180, 185, 190, 190XT, 190XT...
