Allis Chalmers IB Tractor Parts

About the Allis-Chalmers IB

The IB was Allis-Chalmers' industrial version of the Model B. It kept the compact four-cylinder layout but added a heavier frame and front axle, along with a foot throttle for industrial work.

IB tractors built before 1946 shared the serial-number sequence used by the farm Model B. From 1946 onward, the IB used its own IB-prefixed serial numbers, and the model continued into the 1950s.

Serial Number Reference

Serial number locations: The tractor serial number is stamped behind the gear shift lever on top of the transmission case. The engine serial number is on the rear left-hand side of the engine between the carburetor and fuel filter.

The table below shows the beginning tractor serial number for each Model IB year:



1938-1943
Model IB year Beginning serial number
1938 - Shared with Model B 97
1939 - Shared with Model B 11,800
1940 - Shared with Model B 33,502
1941 - Shared with Model B 49,721
1942 - Shared with Model B 56,782
1943 - Shared with Model B 64,501
1944-1948
Model IB year Beginning serial number
1944 - Shared with Model B 65,502
1945 - Shared with Model B 70,210
1946 - IB serial prefix IB1001
1947 - IB serial prefix IB1003
1948 - IB serial prefix IB1010
1949-1953
Model IB year Beginning serial number
1949 - IB serial prefix IB1282
1950 - IB serial prefix IB1556
1951 - IB serial prefix IB1879
1952 - IB serial prefix IB2219
1953 - IB serial prefix IB2570

Total production: 2,850 Model IB tractors.

Filter By

Sort By:

Display Type:
Filters
  • A brass bushing for Allis-Chalmers farm tractors, specifically the Front Governor Shaft Bushing for models B, C, CA, D10, D12, D14, D15.

    Allis-Chalmers Front Governor Shaft Bushing B C CA D10 D12 D14 D15

    Allis-Chalmers
    $14.75
    AC-3739D
    Front Governor Shaft Bushing for Allis-Chalmers tractors and combines.Part Number: AC-3739DFitsAll the following gas and LP tractors: B, C, CA, D10, D12, D14, D15, D272, IB, RCAllis Chalmers Combines...
    Add to Cart
  • A close-up image of a gold-colored metal bushing, identified as a governor gear bushing for Allis-Chalmers farm tractors, specifically models B, C, CA, D10, D12, D14, D15.

    Allis-Chalmers Governor Gear Bushing B C CA D10 D12 D14 D15

    Allis-Chalmers
    $19.75
    AC-3733D
    Governor Gear Bushing for Allis-Chalmers tractors and combines.Part Number: AC-3733DFitsAll gas and LP tractors: B, C, CA, IB, RC, D10, D12, D14, D15, D272Allis Chalmers Combines - 60, 60A, 60H, 66,...
    Add to Cart
  • Allis-Chalmers Spring Loaded Clutch Disc with an 8-1/2 inch diameter. The disc features several coil springs and a central spline for attachment.

    Allis-Chalmers Spring Loaded Clutch Disc 8-1/2 in.

    Allis-Chalmers
    $97.50
    70226730
    New Spring Loaded Clutch Disc for Allis-Chalmers tractors.Part Number: 70226730FitsAllis Chalmers - B, C, CA, IB, B125Replaces / Cross Reference70226730226730Specs8-1/2"10 spline1-1/8" spline diameter
    Add to Cart
  • Image of a Zenith Carburetor designed for Allis-Chalmers farm tractors including models B, C, CA, RC, D10, D12.

    Zenith Carburetor for Allis-Chalmers B, C, CA, RC, D10, D12

    Allis-Chalmers
    $386.00
    1603-0002
    Zenith style replacement carburetor for Allis-Chalmers tractors. Bolt spacing is 2 5/16" C to C and it can be used with or without cable choke.Part Number: 1603-0002FitsAllis Chalmers - IB, RC, B, C,...
    Add to Cart
  • Allis-Chalmers sediment bowl assembly for farm tractors, shown with metal components, a transparent bowl at the bottom, and an attached valve and brass fittings.

    Sediment Bowl Assembly for Allis-Chalmers B, C, CA, IB, RC, D14, D15, D17, D19

    Allis-Chalmers
    $29.75
    AB-092D
    Sediment Bowl Assembly for Allis-Chalmers B, C, CA, IB, RC, D14, D15, D17, and D19. Confirm the fuel bowl style and outlet before ordering.Includes a shallow bowl with a 90 degree outlet only.Part...
    Add to Cart
  • A brass fuel line compression fitting designed for Allis-Chalmers farm tractors. It connects a 5/16 inch fuel line to a 1/8 inch pipe, suitable for various model tractors.

    Fuel Line Compression Fitting 5/16" Line to 1/8" Pipe - Various Models

    Allis-Chalmers
    $3.75
    516FITTING
    Fuel line compression fitting for various Allis-Chalmers models. Connects 5/16" line to 1/8" pipe and is used on sediment bowls in most applications.Part Number: 516FITTINGFitsAllis Chalmers -...
    Add to Cart
  • Allis-Chalmers Dip Stick Gage Bushing for various tractor models including CA B C WC WF WD WD45 D10 D12 D14 D15 D17 D19, designed for farm tractors.

    Dip Stick Gage Bushing - Allis-Chalmers CA B C WC WF WD WD45 D10 D12 D14 D15 D17 D19

    Allis-Chalmers
    $28.75
    70211825
    Dip Stick Gage Bushing for listed Allis-Chalmers and AC Miscellaneous models.Part Number: 70211825FitsAllis Chalmers - CA, B, IB, C, WC, WF, WD, WD45, D10, D12, D14, D15, D17, D19AC Miscellaneous -...
    Add to Cart
  • Allis-Chalmers Stainless Steel Raincap for 1-1/2 inch pipes, designed for farm tractors, made of stainless steel with a rounded top and mounting bracket.

    Stainless Steel Raincap 1-1/2" - Various Models

    Allis-Chalmers
    $33.75
    AB-3240D
    Stainless steel raincap 1-1/2" for various tractor models. Fits mufflers and exhaust pipes with a 1.500" to 1.600" O.D. range. Part Number: AB-3240D Fits Allis-Chalmers - various models Case -...
    Add to Cart
  • A set of small bowl Marvel Schebler carburetor gaskets and o-rings for Allis-Chalmers farm tractors, including a large flexible gasket, a smaller gasket, and three small o-rings of different sizes.

    Carburetor Gasket Kit - Small Bowl Marvel Schebler

    Allis-Chalmers
    $6.75
    AB-3233D
    Carburetor Gasket Kit - Small Bowl Marvel ScheblerNew gasket kit with broad tractor application coverage and multiple listed replacement numbers.Part Number: AB-3233DFitsAllis Chalmers: B, C, CA,...
    Add to Cart
  • Manual for setting up and repairing parts of Allis-Chalmers Moldboard Plow, designed for farm tractors (not automobiles). The manual covers the No. 5 Series 1 Bottom and No. 52 Series 2 Way Pick-Up Plow. The cover is orange with a black illustration of the tractor and plow, and includes details about the manufacturer, Allis-Chalmers Manufacturing Co., located in Milwaukee, Wisconsin, U.S.A.

    Allis Chalmers Moldboard Plow Setting Up & Repair Parts Manual

    Allis-Chalmers
    $21.75
    MAN3499D
    Allis Chalmers Moldboard Plow Setting Up & Repair Parts ManualReprinted manual with 23 pages of exploded views and part numbers for manual lever lift plows.Part Number: MAN3499DFitsAllis Chalmers...
    Add to Cart
  • Image of a gasket for Allis-Chalmers farm tractors, specifically for the governor cover. The gasket is an irregular square with rounded corners and a large central hole, as well as five smaller holes around the perimeter.

    Allis-Chalmers Governor Cover Gasket B C IB CA D10 D12 D14 D15

    Allis-Chalmers
    $5.50
    70233213
    Part Number: 70233213Governor Cover GasketGovernor cover gasket for Allis-Chalmers tractors. Fits the models listed below and replaces the referenced part numbers.FitsAllis-Chalmers BAllis-Chalmers...
    Add to Cart
  • A set of ten main bearing cap shim kits for Allis-Chalmers farm tractors, specifically for models B, C, CA, IB, RC, and D272.

    Allis Chalmers B C CA IB RC D272 Main Bearing Cap Shim Kit

    Allis-Chalmers
    $29.75
    AC-3492D
    Main bearing cap shim kit for Allis Chalmers B, C, CA, IB, RC, and D272. Includes 12 shims.Part Number: AC-3492DFitsAllis Chalmers - B, C, CA, IB, RC, D272AC Combines - 66, 60, 60A, 60HAC...
    Add to Cart
  • Set of small, gold-colored connecting rod shim stock kits for Allis-Chalmers farm tractors, including models B, C, CA, IB, RC, with D272 engine.

    Allis Chalmers B C CA IB RC D272 Connecting Rod Shim Stock Kit

    Allis-Chalmers
    $26.75
    AC-3486D
    Connecting rod shim stock kit for Allis Chalmers B, C, CA, IB, RC, and D272. Includes 16 shims.Part Number: AC-3486DFitsAllis Chalmers - B, C, CA, IB, RC, D272AC Combines - 66, 60, 60A, 60HAC...
    Add to Cart
  • A carburetor kit with various metal and rubber parts, including gaskets, screws, pins, and a dowel for Allis Chalmers farm tractors.

    Platinum Carburetor Kit for Allis Chalmers B C IB RC

    Allis-Chalmers
    $62.75
    ACR7818
    Platinum carburetor repair kit for Allis-Chalmers tractors with Marvel Schebler carburetors.Part Number: ACR7818FitsAllis Chalmers - B, C, IB, RC w/ Marvel ScheblerAll with Marvel Schebler TSX154...
    Add to Cart
  • Allis-Chalmers Oil Pump Repair Kit, engine gasket, repair parts, springs, metal components.

    Allis Chalmers Oil Pump Repair Kit

    Allis-Chalmers
    $149.75
    AC-3420D
    Allis Chalmers oil pump repair kit for listed tractors, forklifts, combines, power units, and a loader.Kit includes a rotor blade set, rotor blade springs, rotor blade shaft, and gaskets. Some...
    Add to Cart

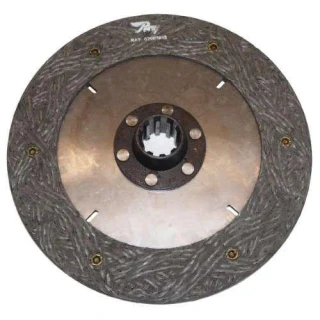

  • Allis-Chalmers Allis Chalmers B, IB, C, CA, 8-1/2" Rigid Clutch Disc - 70226729

    Allis Chalmers 8-1/2" Rigid Clutch Disc

    Allis-Chalmers
    $95.00
    70226729
    Allis Chalmers 8-1/2" rigid 10 spline clutch disc for select B, IB, C, CA, and AC Power Units applications.Some models use an 8-1/2" diameter clutch instead of a 9" diameter clutch. Must measure old...
    Add to Cart
  • Allis-Chalmers COMPLETE ZENITH CARBURETOR REPAIR KIT - B, IB, C, RC, WC, D10, D12

    Allis Chalmers Zenith Carburetor Kit | ACR0083

    Allis-Chalmers
    $39.25
    ACR0083
    Complete Zenith carburetor repair kit for Allis Chalmers B, IB, C, RC, WC, D10, and D12 models.Part Number: ACR0083FitsAllis Chalmers BAllis Chalmers IBAllis Chalmers CAllis Chalmers RCAllis Chalmers...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Steering Wheel Shaft Support / Clutch Pilot Bushing 70206968 70228255

    Allis Chalmers Steering Wheel Shaft Support / Clutch Pilot Bushing

    Allis-Chalmers
    $13.50
    70228255
    Steering wheel shaft support and clutch pilot bushing for select Allis Chalmers tractors. Includes the listed applications and size specifications.Part Number: 70228255FitsAllis Chalmers - D21...
