Description

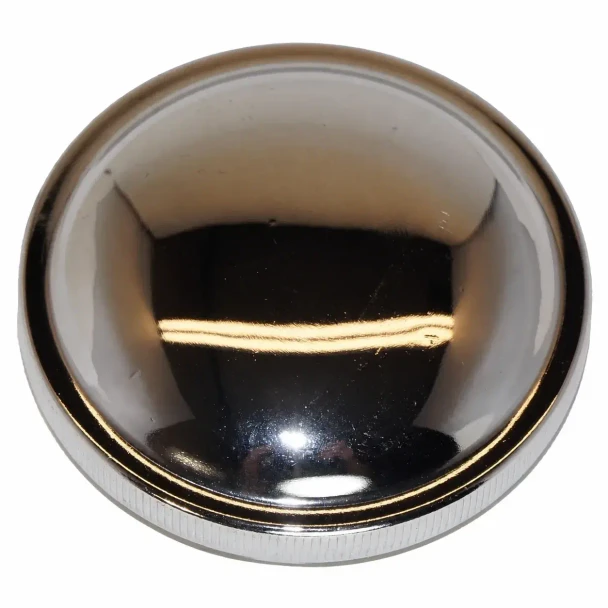

Allis-Chalmers cap used as a radiator cap or a fuel cap depending on the tractor model.
This unvented cap is for non-pressurized radiator systems and selected fuel cap applications.
Part Number: MH-045D
Fits
- Allis Chalmers: radiator cap non-pressurized system, early original style B, C
- Case: radiator cap only V, VC, VA, VAC, VAH, VAI, VAO
- Cockshutt: radiator cap 20, 30, 40, 50
- John Deere: fuel cap 50 (sn 5018450 and up), 60 (sn 6035350 and up), 70 GAS (sn 7012350 and up), 70 DSL, 520, 530, 620, 630, 720, 730
- Massey Harris: radiator cap 81, 20, 22, Early Pony (up to sn PGA2957), Colt, Mustang, early 101 JR., 102 JR., 101 SR., 102 SR.
Replaces / Cross Reference
- Allis Chalmers: 206459, 70206459
- Massey Harris: 14628A
- John Deere: AT20911, ATR28483, AF2914R
- Case: G13271
- Cockshutt: T8754
Specs
- 1.750" tang to tang
- 2.710" inside diameter
- .399" tang width
- tang is from the center of the cap out
Notes
- This is the correct non-vented fuel cap for the John Deere applications listed above.
- When used as a radiator cap it is only for non-pressurized systems.
- Condition: New
- Part Number: MH-045D
Details
Tang Width: |
0.399 in. |
Condition: |
New |
Replaces / Cross Reference: |
206459; 70206459; 14628A; AT20911; ATR28483; AF2914R; G13271; Cockshutt : T8754 |
Inside Diameter: |
2.710 in. |
Width: |
.399 in. tang |
