Description

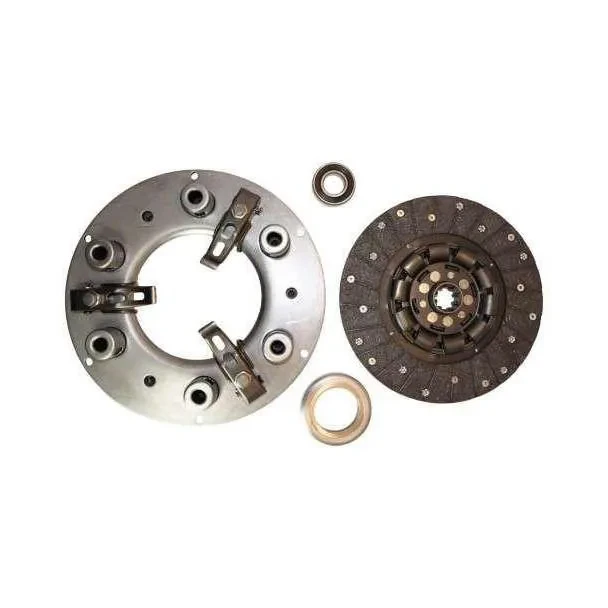

New clutch kit for Allis Chalmers WC, WD, WD45, and WF. Includes a pressure plate, clutch disc, throw-out bearing, and pilot bearing.
Part Number: AC-2972D
Fits
- Allis Chalmers - WC, WD, WD45 (up to SN 99647), WF
Replaces / Cross Reference
- Clutch: 70226764, 70227074, 210298, 219646, 207199, 204838, 226764, 227074
- Pressure Plate: 70230506, 70208286, 204837, 207196, 216019, 230506, 70216791, 208286, 216791, 204842
- Throw-out Bearing: 70204829, 204829
- Pilot Bearing: 70226859, 226859
Specs
- 10" diameter
- 1-1/4" diameter - 10 splined clutch hub
- 6 spring pressure plate
- Pilot bearing: 0.98" I.D., 2.05" O.D., .590" thick
Notes
- Does not include pilot bushing used instead of bearing on WC & WF.
Details
Diameter: |
10 in. |
Hub Size: |
1-1/4 in. |
Spline Count: |
10 spline |
Pressure Plate Springs: |
6 springs |
Pilot Bearing: |
0.98 in. I.D.; 2.05 in. O.D.; 0.590 in. thick |
Part Type: |
Clutch kit |
Outside Diameter: |
10 in. |
Outside Diameter: |
1-1/4 in. |
Pilot Bearing: |
0.98" I.D., 2.05" O.D., .590" thick |
