Description

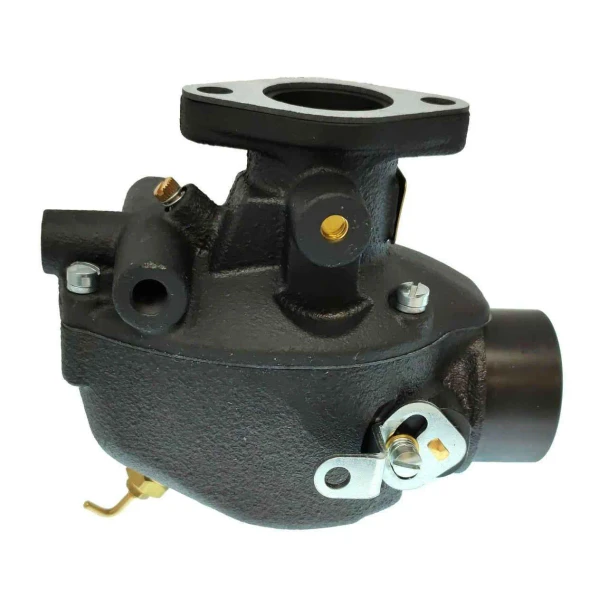

Brand new Marvel Schebler style carburetor for Allis-Chalmers WD45 and D17 up to SN 42000. Comes with a mounting gasket and the listed specifications below.
Part Number: ACR7934
Fits
- Allis Chalmers WD45
- Allis Chalmers D17 (up to SN 42000)
- AC Miscellaneous Motor Grader D (SN: 3370 and up)
- AC Miscellaneous Loaders TL10, TL11 (SN: 3370 and up)
Replaces / Cross Reference
- 231431
- 70226258
- 70226275
- 226258
- 226275
- 70231431
- TSX464
- TSX773
- TSX561
Specs
- Brand new — never refurbished
- Includes mounting gasket
- 2-3/8" center-to-center mounting bolt configuration
- 1-3/16" throttle body throat width
- 1-7/8" outer diameter choke air horn (air intake)
- 1/8" NPT fuel inlet
Notes
- NEW Marvel Schebler Style Carburetor, Not Rebuilt
- Please make sure you have clean fuel.
- If your tank is rusting then this will contaminate your fuel.
- If your fuel is contaminated, you cannot fix the problem with a new carburetor.
- No refunds or replacements will be given if dirt, rust, contamination is found inside the carburetor or if the carburetor has been taken apart.
