Description

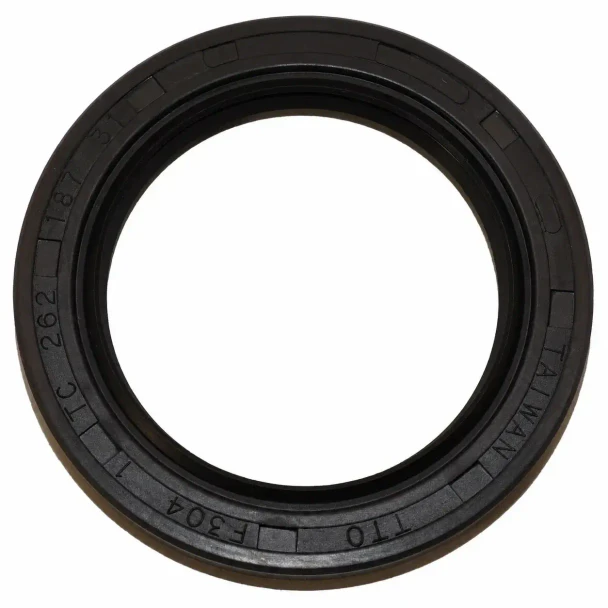

Front crankshaft seal for applications listed below.
Use the fitment and cross-reference details below to verify the correct application.
Part Number: IH-1307D
Fits
- Allis Chalmers: WD45, D15, D17 - D19 (gas and dsl); combines with 6 cyl Buda: A, C, F, G230, 262, D262; industrial (gas): AT40, AT60, AT80, AT100, AT120, EP40, EP50, EP60, EP70, EP80, F30, F40, FP40, F50, FP50, F60, FP60, F70, FP70, F80, FP80, F100, F120; Dsi: FD30, FD40, FD50, FD60, FD70, FD80, FD100, FD120, FL60, FL70, FL80, FL100, FL120, HD3, I60, I600, TL10, TL11, TL12, TL14; following models with D175 Buda dsl: 510, 512, 610, 612, 614, 616, 621, 622, 801, 802
- Cockshutt: Following gas, dsl and LP models with Buda 153, 230, 262, or 273 engine: CO-OP, E3, E4, E5, 30, 40, 50
- IH / Farmall: A, Super A, AV, Super AV, B, BN, C, Super C, 100, 130, 140, 200, 230, 240, 330, 340, 404, 424, 444, 504, 2404, 2424, 2444, 2504, 3514; crawlers T340, T5, 500; power units U2, U2A; Cub, Cub LoBoy, 154, 184, 185; H, HV, Super H, Super HV, M, MD, MV, MDV, Super M, Super MD, Super MV, Super MDV, 300, 350, 460; 300, 330, 340, 350, 460 without torque amplifier or independent pro drive
- Minneapolis Moline: 5 Star, M5, M504, M602, M604, early M670 dsl with a single 540 RPM single speed PTO up to sn 30000819, M670 gas / LP up to sn 29901891
- Oliver: 1655, White 2-70 when used as a transmission input shaft seal; White 2-135, 2-155, 2-180, 4-210, 4-225 when used as a PTO output shaft seal with 1000 RPM single PTO
- Engine applications: C113, C123, C135, C146, C153
Replaces / Cross Reference
- 389407R2, 389407R92, 49177D, 43442D, 46122DBX, 46122DCX, 46122DXA, 46122DAX, 363821R91, 367731R11, 378193R91
- Allis Chalmers: 4500307, 4506725, 4513621
- CKS: T5203
- Minneapolis Moline: 10A8557, 10A10908, 35A1122
- Oliver: K620, 72160018, 71353831, 803551, 70937160, 74513621
Specs
- I.D.: 1.875
- O.D.: 2.627
- Width: .312
