Description

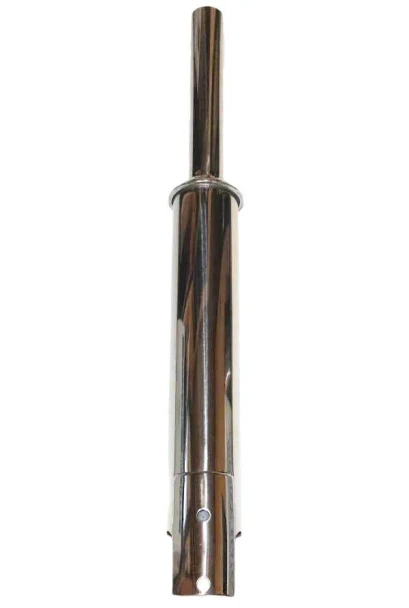

Restoration quality stainless steel muffler for Allis Chalmers WD45, WD45 Diesel, and D17 up to S/N 3200.
May also fit WC, WF, and WD if using aftermarket manifold AC-004D.
Part Number: AC-4470D
Fits
- Allis Chalmers WD45
- Allis Chalmers WD45 Diesel
- Allis Chalmers D17 up to S/N 3200
- May also fit WC, WF, and WD if using aftermarket manifold AC-004D
Replaces / Cross Reference
- 70229531
- 70226351
Specs
- Polished 304 stainless steel
- 31 1/8" overall length
- 11" outlet length
- 1 3/4" outlet O.D.
- 20 1/8" shell length
- 3 1/4" shell O.D.
- 1 1/2" inlet length
- 1 3/4" inlet O.D.
Details
Replaces / Cross Reference: |
70229531; 70226351 |
Overall Length: |
31 1/8 in. |
Outside Diameter: |
1 3/4 in. outlet |
Shell Length: |
20 1/8 in. |
Outside Diameter: |
3 1/4 in. shell |
Inlet Length: |
1 1/2 in. |
Inlet Outside Diameter: |
1 3/4 in. |
