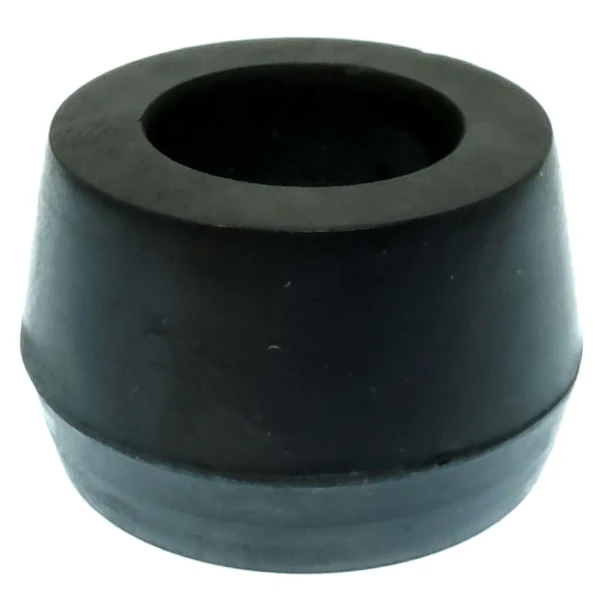

Rubber Seat Shock Bushing Allis Chalmers

Rubber seat shock bushing for listed tractor models. Sold individually and used on Monroe Easy-Ride seat and Float Ride seat applications where noted.

Part Number: IH-325D

Fits

• Allis Chalmers: B, C, CA, D10, D12, D14, D15, D17, D19, D21, RC, U, WC, WD, WD45, WF, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580
• Avery: A, BF, BG, R
• Case: D, DC, DC-3, DC-4, DCS, DEX, DH, DI, DI/NAR, DO, DO-VS, DO/STD, DOEX, DV, S, SC, SC-3, SC-4, SI, SO
• Cockshutt: 550, 560, 570
• Ford: 2N, 8N, 9N, NAA
• International: C, F20 (Late with Monroe Easy-Ride seat), F30, H, HV, M, MD, MDV, MTA, MV, Super C, Super H, Super HV, Super M, Super MD, Super MDV, Super MV, 200, 230, 450, 460, 560, 600, 650, 660, Farmall Rowcrop: 300, 350, 400
• John Deere: 820 2 cylinder, 830 2 cylinder, 50, 80, 520, 530, 620, 630, 720, 730, H, 240, 1020, 1030, 1035, 1520, 2020, 2030, 2035, 2130, 2135, 2140, 3040, 3140 (SN: 430000 & up), 2350, 2440, 2510, 2520, 2550, 2630, 2750, 2940, 2950, 3010, 3020, 3130, 3135, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4350, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960, 5010, 5020, 6030, 7020, 7520, 8430, 8630, Industrial: 300, 301, 302, 310, 400, 401, 410, 570, 600, 670, 690, 700, 760, 770
• Massey Harris: Mustang (23), 22, 30, 33, 44, 333, 444, 555
• Minneapolis Moline: BF, BG, BIG, General
• Oliver: 60, 70, 80, 90

Replaces / Cross Reference

• 70222488
• 222488
• T19118
• 230288
• 72696R1
• 250416R1
• F3296R
• R26832
• 760674M1

Specs

• Bushing is for the horizontal bolt hole
• Measures 1.223" OD at the largest point
• Hole ID is .597" ID
• Length measures .724" overall
• 2 to 4 used per shock
• Sold individually

Notes

• MODELS ABOVE WHEN EQUIPPED WITH MONROE EASY RIDE SEAT AND FLOAT RIDE SEAT
• Will work on these shock absorbers sold by DJS Tractor Parts: AC-161D, AC-196D, AC-219D, IH-329D, IH-347D
