Allis Chalmers D12 Tractor Parts

Allis-Chalmers D12 Tractor Parts

About the Allis-Chalmers D12

Allis-Chalmers introduced the D12 in 1959 as part of the new D Series. It was a compact row-crop tractor with a four-cylinder gasoline engine, four-speed transmission, live hydraulics, and a 540-rpm PTO. A D12 High Clearance version was also offered for cultivation work where extra clearance mattered.

The D12 stayed in production through 1968 and went through Series I, Series II, and Series III updates during that run. Early and later tractors can therefore differ in engine parts, air-cleaner parts, electrical equipment, and other details, even when both are called a D12. The serial number is the best starting point when checking parts.

Serial Number Reference

Serial number locations: The tractor serial number is stamped into the flange where the engine and transmission meet on the left side of the tractor. The engine serial number is on the rear left-hand side of the engine block behind the carburetor.

The table below shows the beginning tractor serial number for each Model D12 year and series:



1959-1961
Model D12 year Beginning serial number
1959 - Series I 1,001
1960 - Series I 1,950
1961 - Series I 2,801
1961 - Series II 3,001
1962-1964
Model D12 year Beginning serial number
1962 - Series II 3,638
1963 - Series II 5,501
1964 - Series II 6,012
1964 - Series III 9,001
1965-1968
Model D12 year Beginning serial number
1965 - Series III 9,192
1966 - Series III 9,508
1967 - Series III 9,830
1968 - Series III 9,979

Total production: About 4,070 Model D12 tractors.

Filter By

Sort By:

Display Type:
Filters
  • Fuel Cap for Allis-Chalmers, Case, Ford, JD, and Massey, display of a round metal fuel cap with a shiny surface and a bar handle.

    Fuel Cap for Allis-Chalmers, Case, Ford, JD, and Massey (Display)

    $7.75
    540
    Chrome vented fuel cap with gasket for listed tractor models. Includes gasket and measures 2-5/8" O.D. with 1/4" height. Part Number: MH-043D Fits Allis Chalmers: D10, D12, D14, D15, D17, D19, 170,...
    Add to Cart
  • Fuse Holder 20 Amp, display model with metal contacts and a black plastic casing for electrical connection.

    Fuse Holder 20 Amp (Display)

    $10.25
    601
    20 amp fuse holder for 3AG type fuses. Fits a 1/2" chassis hole and uses a nut for mounting. Part Number: AB-389D Fits Allis Chalmers: D10, D12, D14, D15, D17, D19, D21, 180, 185, 190, 190XT, 200,...
    Out of stock
  • Headlight Assembly 12 Volt for Allis-Chalmers and Ford, display of a round headlight with a reflective glass surface and wiring attached, used as a replacement part for tractors.

    Headlight Assembly 12 Volt for Allis-Chalmers and Ford (Display)

    $43.50
    565
    12 volt headlight assembly for select Allis-Chalmers and Ford models. Mounts to the side of the grille, not the fender. OD is 5-3/4" with a 1/2"-13 stud. Part Number: FD-193D Fits Allis Chalmers:...
    Add to Cart
  • Headlight Lens w/ Guide Name 4-3/4" (Display), transparent round car headlight lens with a textured surface for vehicle lighting.

    Headlight Lens w/ Guide Name 4-3/4" (Display)

    $12.50
    568
    Part Number: IH-352D Headlight Lens w/ Guide Name This 4-3/4" headlight lens has a "GUIDE" marking near the bottom of the lens and a dimpled outer surface. It is interchangeable with the original...
    Add to Cart
  • Headlight Reflector for Allis-Chalmers and Other Models, shiny chrome round reflector with mounting hole, displayed on a brown background.

    Headlight Reflector for Allis-Chalmers and Other Models (Display)

    $11.75
    569
    Part Number: AB-320D Fits Allis Chalmers - B, C, CA, D10, D12, D14, D15 (up to sn 9001), RC, WC, WD, WD45, WF Case - VA, VAC, VAH (all up to sn 5400000) Cockshutt - 20, 30, 40, 50, 540, 550, 560,...
    Add to Cart
  • Hood Latch Snap Latch for Allis Chalmers D10 D12 D14 D15 D17 D19 D21, metallic hood latch snap fitting on brown background

    Hood Latch Snap Latch for Allis Chalmers D10 D12 D14 D15 D17 D19 D21 (Display)

    $9.50
    650
    Part Number: CH4000 Hood Latch Snap Latch Hood latch snap latch for select Allis Chalmers tractors, bale throwers, balers, and some Gleaner combines. Strike not included. Fits ALLIS CHALMERS - D10,...
    Add to Cart

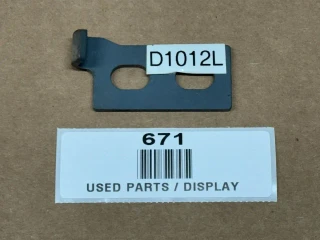

  • Left Side Hood Latch Bracket Allis Chalmers D10 D12, display image of a small gray metal bracket with two holes and a label D1012L on a cardboard background.

    Left Side Hood Latch Bracket Allis Chalmers D10 D12 (Display)

    $14.50
    671
    Left side hood latch bracket for Allis Chalmers D10 and D12 tractors. Bolts to the side of the radiator housing. Sold individually. Part Number: D10D12L Fits Allis Chalmers D10 Allis Chalmers...
    Add to Cart
  • Light Ring 4-3/4" (Display), black circular light ring used for display lighting or photography.

    Light Ring 4-3/4" (Display)

    $12.50
    567
    Interchangeable with original. Part Number: IH-353BD Fits Allis-Chalmers B, IB, C, CA, D10, D12, D14, D15 (up to sn 9001), WC, WD, WD45 Avery Case VA, VAC, VAH (All up to sn 5400000) Cockshutt CO-OP...
    Add to Cart
  • Light Visor for Allis-Chalmers D10 D12 D15 D17 D19, red curved tractor part for display or repair.

    Light Visor for Allis-Chalmers D10 D12 D15 D17 D19 (Display)

    $15.75
    575
    Light visor MF-108D for select Allis-Chalmers, Massey Ferguson, and Massey Harris applications. New condition. Part Number: MF-108D Fits Allis Chalmers: D10 (SN: 9001 & up), D12 (SN: 9001 & up), D15...
    Add to Cart
  • Manifold for Allis-Chalmers D10 D12 I40 I400, used tractor manifold part with rusted metal surface and multiple bolt holes.

    Manifold for Allis-Chalmers D10 D12 I40 I400 (Display)

    $246.25
    476
    Manifold for Allis-Chalmers D10, D12, I40, and I400. Measurements are listed below for verification before ordering. Part Number: AC-156D Fits Allis Chalmers D10 Allis Chalmers D12 Allis Chalmers...
    Add to Cart
  • Oil Fill Breather Cap Without Clip, display image of a black oil fill breather cap without clip on a beige surface.

    Oil Fill Breather Cap Without Clip (Display)

    $34.00
    556
    Oil fill breather cap without clip. Includes a copper filter element, has "OIL" stamped into the top, and is e-coated in black. Made in the USA. Part Number: AC-178D Fits Allis-Chalmers...
    Add to Cart
  • Persian Orange #1 Emblem for Allis-Chalmers Steering Wheel and Front Nose, display of a vintage metal emblem with orange and silver colors, featuring large letters A-C and the words Allis-Chalmers.

    Persian Orange #1 Emblem for Allis-Chalmers Steering Wheel and Front Nose (Display)

    $27.25
    528
    Persian Orange #1 Emblem for Allis-Chalmers steering wheel and front nose applications. Die cast, chromed, painted Persian #1 background. Part Number: A9900 Fits Allis Chalmers - ED40, D10, D12,...
    Add to Cart
  • Restoration Quality Muffler Allis Chalmers B C CA D10 D12, metallic muffler with a cylindrical shape and extendable pipe, displayed on a cardboard surface.

    Restoration Quality Muffler Allis Chalmers B C CA D10 D12 (Display)

    $63.75
    480
    Restoration quality muffler for Allis Chalmers D10, D12, CA, C, and B models with through-the-hood mufflers. Painted muffler with listed replacement numbers and mounting details below. Part Number:...
    Add to Cart
  • Right Hand Side Hood Latch Bracket for Allis Chalmers D10 D12, display image showing used part with label and barcode on a plain background.

    Right Hand Side Hood Latch Bracket Allis Chalmers D10 D12 (Display)

    $14.50
    670
    Right hand side hood latch bracket for Allis Chalmers D10 and D12 tractors. Bolts to the side of the radiator housing. Sold individually. Part Number: D10D12R Fits Allis Chalmers D10 Allis Chalmers...
    Add to Cart
  • Rim Stop Bolt for Allis Chalmers, Case, Ford, JD, Massey Ferguson, display showing a metallic bolt with a hexagonal head, screw threads, and a tapered end.

    Rim Stop Bolt for Allis Chalmers, Case, Ford, JD, Massey Ferguson (Display)

    $7.00
    662
    Rim stop bolt for listed tractor models from Allis Chalmers, Case, Cockshutt, Ford, IH/Farmall, JD, Massey Ferguson, Massey Harris, MM, Oliver, White, and Landini. Use with parallel or 90 degree...
    Add to Cart
  • Sediment Bowl Assembly for Allis Chalmers D10, D12, D14, WC, WD, WF, WD45, 170, and Case, used tractor parts display showing a metal and glass sediment bowl with mounting hardware on a brown background.

    Sediment Bowl Assembly for Allis Chalmers D10, D12, D14, WC, WD, WF, WD45, 170 and Case (Display)

    $27.75
    504
    Sediment bowl assembly for select Allis Chalmers and Case tractors. Includes a shallow bowl with 3/8" pipe inlet and two 1/8" pipe outlets. Part Number: AB-002D Fits Allis Chalmers D10 (Using 2...
    Add to Cart
