Allis Chalmers D12 Tractor Parts

Allis-Chalmers D12 Tractor Parts

About the Allis-Chalmers D12

Allis-Chalmers introduced the D12 in 1959 as part of the new D Series. It was a compact row-crop tractor with a four-cylinder gasoline engine, four-speed transmission, live hydraulics, and a 540-rpm PTO. A D12 High Clearance version was also offered for cultivation work where extra clearance mattered.

The D12 stayed in production through 1968 and went through Series I, Series II, and Series III updates during that run. Early and later tractors can therefore differ in engine parts, air-cleaner parts, electrical equipment, and other details, even when both are called a D12. The serial number is the best starting point when checking parts.

Serial Number Reference

Serial number locations: The tractor serial number is stamped into the flange where the engine and transmission meet on the left side of the tractor. The engine serial number is on the rear left-hand side of the engine block behind the carburetor.

The table below shows the beginning tractor serial number for each Model D12 year and series:



1959-1961
Model D12 year Beginning serial number
1959 - Series I 1,001
1960 - Series I 1,950
1961 - Series I 2,801
1961 - Series II 3,001
1962-1964
Model D12 year Beginning serial number
1962 - Series II 3,638
1963 - Series II 5,501
1964 - Series II 6,012
1964 - Series III 9,001
1965-1968
Model D12 year Beginning serial number
1965 - Series III 9,192
1966 - Series III 9,508
1967 - Series III 9,830
1968 - Series III 9,979

Total production: About 4,070 Model D12 tractors.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Precleaner Kit JD-741D 1306480 249888 70249888, green and clear precleaner assembly for agricultural machinery.

    Precleaner Kit JD-741D 1306480 249888 70249888

    Allis-Chalmers
    $104.50
    JD-741D
    Precleaner Kit JD-741DPart number: JD-741DReplacement numbers: 1306480, 249888, 70249888Metal precleaner kit with metal lid and base. Fits models with a 3" ID base and 7" bowl. Measure before...
    Add to Cart
  • Allis-Chalmers Wiring Harness Kit (Tractors with 1 Wire Alternator) Allis Chalmers D10 D12 Series III

    Allis Chalmers D10 D12 Series III Wiring Harness Kit

    Allis-Chalmers
    $319.00
    DJS1036-1
    Wiring Harness Kit for tractors with a 1-wire alternator.Built for Allis Chalmers D10 and D12 Series III applications.Part Number: DJS1036-1FitsAllis Chalmers D10 (SN 9001 & UP, Series III)Allis...
    Add to Cart
  • Wire Mini Alternator with Pulley 35 Amp, showing a compact automotive alternator with attached pulley and electrical connector on a brown background.

    1 Wire Mini Alternator with Pulley 35 Amp (Display)

    $159.50
    466
    1 wire mini alternator with pulley, 35 amp. Used to convert 6 volt systems to 12 volt systems on negative ground systems only. Preferred for tractors requiring a smaller diameter alternator for...
    Add to Cart
  • Wire Mini Alternator with Pulley 35 Amp, compact metal automotive alternator with pulley and wiring connector, displayed on a plain surface.

    1 Wire Mini Alternator with Pulley 35 Amp (Display)

    $159.50
    465
    1 wire mini alternator with pulley, 35 amp. Used to convert 6 volt systems to 12 volt systems on negative ground systems only. Preferred for tractors requiring a smaller diameter alternator for...
    Add to Cart
  • 105 Amp One Wire Alternator with Pulley for 6V to 12V Conversion, shiny metallic alternator with a pulley and an orange display tag attached.

    105 Amp One Wire Alternator with Pulley for 6V to 12V Conversion

    $103.75
    464
    105 amp one wire alternator with pulley, used for converting 6 volt to 12 volt systems. Built-in regulator and 1 wire hook up for 12 volt negative ground systems. Part Number: AB-418D Fits Allis...
    Add to Cart
  • 12-Volt Bullet Style Tail Light for Allis Chalmers B C CA G WD WD45 D10 D12 D14, black with red wiring and a red lens, used for tractor lighting.

    12-Volt Bullet Style Tail Light for Allis Chalmers B C CA G WD WD45 D10 D12 D14 (Display)

    $35.75
    572
    12-volt bullet style tail light for Allis-Chalmers tractors. Painted black piggy lamp. Part Number: OL-070D Fits Allis Chalmers: B, C, CA, G, WD, WD45, D10, D12, D14 Minneapolis Moline: 4 Star, 5...
    Add to Cart
  • 12-Volt Dash Light Assembly for Allis-Chalmers, display of used tractor dash light with wiring for vehicle dashboard

    12-Volt Dash Light Assembly for Allis-Chalmers (Display)

    $25.50
    592
    12-volt dash light assembly for Allis-Chalmers tractors. Chrome finish with a 0.658" socket diameter and 1" center-to-center mounting holes. Part Number: AC-273D Fits Allis-Chalmers...
    Add to Cart
  • 160 Degree Thermostat - Allis Chalmers, Case, Cockshutt, Massey Ferguson, display showing used parts for tractor cooling system.

    160 Degree Thermostat - Allis Chalmers, Case, Cockshutt, Massey Ferguson (Display)

    $27.75
    507
    160 degree thermostat for select Allis Chalmers, Case, Cockshutt, Massey Ferguson, and Massey Harris models. Part Number: AB-1898D Fits Allis Chalmers - D10, D12, D14, D15 with 4 bolt housing. WD,...
    Add to Cart
  • 4409X Sealed Beam Combination Rear Light Bulb 12V, round with reflective surface, for vehicle signaling, on display.

    4409X Sealed Beam Combination Rear Light Bulb 12V (Display)

    $16.00
    574
    Part Number: IH-899D Fits Allis Chalmers: D10, D12, D15, D17, D19, D21, 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 5040, 6040, 7030, 7040, 7050, 7060, 7080 Avery Case Cockshutt: models with...
    Add to Cart

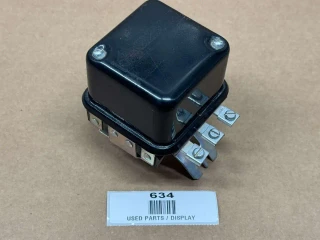

  • 6 Volt External Voltage Regulator for Allis Chalmers, Case, JD, MF, black mounted device with electrical connectors.

    6 Volt External Voltage Regulator for Allis Chalmers, Case, JD, MF (Display)

    $31.75
    633
    6 volt external voltage regulator. For ‘A’ type circuits in positive ground systems. Flat base for mounting. Condition: New. Fits Delco generators: 1100509, 1101404, 1100025, 1100055, 1100501,...
    Add to Cart
  • 6 Volt Starter Solenoid for Allis Chalmers B, C, IB, CA, D10, D12, D14, displayed on a cardboard surface.

    6 Volt Starter Solenoid for Allis Chalmers B, C, IB, CA, D10, D12, D14 (Display)

    $17.00
    594
    6 Volt Saddle Mount Starter Solenoid for Allis Chalmers tractors. Part Number: 70223334 Fits Allis Chalmers B Allis Chalmers IB Allis Chalmers C Allis Chalmers CA Allis Chalmers Early D10 Allis...
    Add to Cart
  • 63 Amp One Wire Alternator with Pulley for 6V to 12V Conversion, automotive electrical part displayed on a cardboard surface.

    63 Amp One Wire Alternator with Pulley for 6V to 12V Conversion (Display)

    $103.75
    462
    63 amp one wire alternator with pulley, used for converting 6 volt to 12 volt systems. Built-in regulator and 1 wire hook up for 12 volt negative ground systems. Part Number: AB-418D Fits Allis...
    Add to Cart
  • Allis Chalmers 12V Sealed Beam Combo Tail Light Assembly, display image of a round black and clear sealed beam tail light with wiring, used for agricultural or industrial vehicles.

    Allis Chalmers 12V Sealed Beam Combo Tail Light Assembly (Display)

    $93.50
    566
    Part Number: AC-355D Fits Allis Chalmers: 190XT (up to SN 19000), D10, D12, D15 (SN 9001 & up), D17 (SN 42001 & up), D19, D21, 190 Minneapolis Moline: JetStar 2, Jetstar 3 Super, M5, M504, M602,...
    Add to Cart
  • Allis Chalmers Amp Gauge (60-0-60) 12 Volt, a round electrical gauge with a white face, black markings, and a needle indicating zero, used for measuring electrical current in amps, displayed on a brown background.

    Allis Chalmers Amp Gauge (60-0-60) 12 Volt (Display)

    $23.75
    611
    12 volt Allis Chalmers amp gauge with a 60-0-60 scale and the Allis Chalmers logo. Part Number: AC-1833D Fits Allis Chalmers - Various (Any tractors that have been converted to 12 volt...
    Add to Cart
  • Allis Chalmers Amp Gauge, round meter displaying current ampere readings with 'Charge' and 'Discharge' indicators.

    Allis Chalmers Amp Gauge (Display)

    $23.75
    629
    Allis Chalmers amp gauge with a chrome bezel and restoration quality finish. Fits the Allis Chalmers models listed below. Part Number: AC-258D Fits Allis Chalmers: B, C, CA, G, WC, WD, WD45, WD45D,...
    Out of stock
  • Allis Chalmers Amp Gauge 60-0-60 70254407, display of a round amp gauge with a needle, black casing, and a white faceplate marked with ampere measurements.

    Allis Chalmers Amp Gauge 60-0-60 70254407 (Display)

    $35.50
    628
    Aftermarket 60-0-60 gauge made just like the original ones that came on the tractor when new. Made to give it that original look. Part Number: DJS70254407 Fits Allis Chalmers D10 Allis Chalmers...
    Add to Cart
