Description

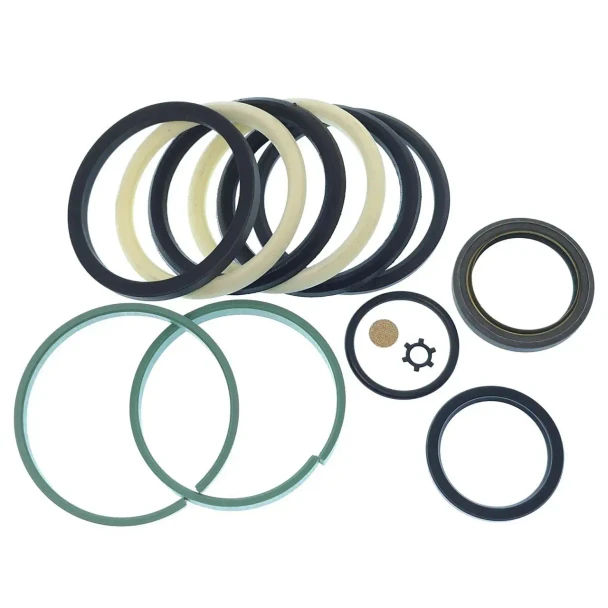

External hydraulic lift arm cylinder seal kit for select Allis Chalmers tractors. Two kits are used per tractor; sold individually.
Part Number: 70255805
Fits
- Allis Chalmers 170
- Allis Chalmers 175 (up to SN 5019)
- Allis Chalmers 180 (up to SN 5097)
- Allis Chalmers 190 (up to SN 25538)
- Allis Chalmers 190XT
- Allis Chalmers D17 (Series IV, SN 75000 & up)
- Allis Chalmers D19 (equip with 3PT)
Replaces / Cross Reference
- 70255805
- 70257772
- 255805
- 257772
- 70242326
- 70242345
- 70240178
- 70251878
Notes
- OEM AGCO kit includes: V-Ring packing (244575, 341040, 70244575, 70341040) 6 pieces; Piston Wear Strips (341380, 70341380) 2 pieces; O-Ring (1.359" ID x 0.139" thick) (240873, 924270, 70240873, 70924270); O-Ring for 190 only (2.734" ID x 0.139" thick) (70924686, 924686); O-Ring for 190 only (1.475" ID x 0.210" thick) (70923650, 923650); Seal (2" OD) late SN: 17071 to 25538 (70343382, 343382); Seal (1-7/8" OD) for 190 up to SN: 17071 (237415, 702160020, 70237415); Breather Retainer (70250542, 250542); Breather (70240188, 240188).
- Measure your cylinder before ordering.
- Condition: New
