Description
Part Number: AB-2082D

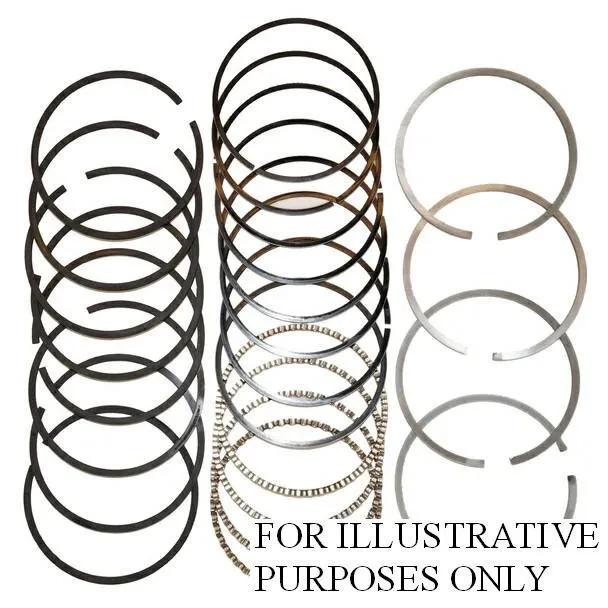

Allis-Chalmers Piston Ring Set
For select Allis-Chalmers, Case, International, and Massey Harris applications with 4" bore. Includes the listed compression and oil ring dimensions.
Fits
- Allis Chalmers - SOME: 170, 175, D17, WC, WD, WD45, WF (gas/LP w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- AC Miscellaneous - Industrial: D, DG, M65, TL10 (w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- AC Miscellaneous - Industrial: TL12 (w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- Case - 400, 401, 402, 403, 405, 410, 411, 412, 413, 415, 420, 425, 680, 700, 701, 701B, 702, 702B, 703, 703B, 705, 705B, 710, 710B, 711, 711B, 712, 712B, 713, 713B, 715, 715B, 725B, 730, 731, 732, 733, 734, 740, 741, 742, 743, 744, 770, 800, 800B, 801, 801B, 802, 802B, 803, 803B, 805B, 810, 810B, 811, 811B, 812, 812B, 813, 813B, 815, 815B, C, CC, CC-3, CC-4, CCS, CH, CI, CO, CO-VS, D, DC, DC-3, DC-4, DCS, DEX, DH, DI, DO, DO-VS, DOEX, DV, Super 400 (gas, LP, dsl w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- Case - 680B (early gas, LP, dsl w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- Case - Crawler: 750 (late) dsl w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring
- International - Wheatland: 400 (w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- International - 400, I6, M, MV, O6, OS6, Super M, Super MTA, Super MV, Super MVTA, Super W6, Super W6TA, T6, U6, W6 (w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
- Massey Harris - 44 (Orchard w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring), 44 (Standard w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring), 44, 44 Special (Gas, LP & Diesel w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring), 44 (Vineyard w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring), 444 (4 cylinder Gas, LP & Diesel w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring), 44K (w/ 4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring)
Replaces / Cross Reference
- A8086
- 357683R91
- 836132M91
- 841157M91
- abc2082
Specs
- 4" bore
- (3) 0.093" compression rings
- (1) 0.250" oil ring
Notes
- Do not order by tractor model only. Due to the many different piston manufacturers, there can be as many as 8 different ring sets available for one particular engine.
- Rings are NOT returnable if opened.
