Allis Chalmers WD Tractor Parts

About the Allis-Chalmers WD

The WD brought Allis-Chalmers' two-clutch Power Control system to the row-crop tractor market when it was introduced in 1948. The foot clutch handled the main drive, while the hand-operated wet clutch let the PTO keep turning when the tractor slowed or stopped.

Built through 1953, the WD also introduced power-shifted rear wheels and used a four-speed transmission. The WD was followed by the higher-powered WD45.

Serial Number Reference

Serial number locations: The tractor serial number is stamped at the left brake cover or the left rear of the axle housing. The engine serial number is on the left-hand side of the engine near the carburetor.

The table below shows the beginning tractor serial number for each Model WD year:



1948-1949
Model WD year Beginning serial number
1948 7
1949 9,250
1950-1951
Model WD year Beginning serial number
1950 35,445
1951 72,328
1952-1953
Model WD year Beginning serial number
1952 105,182
1953 131,243

Total production: 146,125 Model WD tractors.

Allis-Chalmers WD Paint Reference

For restoration planning, the Allis-Chalmers WD is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers WD paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Persian Orange 1

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers WD WD45 Hood Strap 70208109, black metal tractor hood support strap.

    Allis-Chalmers WD WD45 Hood Strap 70208109

    Allis-Chalmers
    $36.00
    70208109
    Hood strap for Allis-Chalmers WD and WD45 models.Fuel tank strap, hood strap, radiator strap 70208109 with an overall length of 44-1/2".Part Number: 70208109FitsAllis Chalmers WDAllis Chalmers...
    Add to Cart
  • Allis-Chalmers 10 X 28 (6 Dimple, 2 Blocks) Rear Rim

    10 x 28 Rear Rim for Allis Chalmers WC, WF, Early WD

    Allis-Chalmers
    $499.00
    WH-026D
    Allis Chalmers 10 x 28 rear rim with 6 dimple and 2 blocks.USA made, like original.Part Number: WH-026DFitsAllis Chalmers: WC (sn 81757 and up), WF (sn 1904 and up), Early WDMassey Harris: 22...
    Add to Cart
  • Illustrative image of assorted dark and silver piston rings arranged in several overlapping stacks. Text on image reads “FOR ILLUSTRATIVE PURPOSES ONLY.” Product: Allis-Chalmers four-cylinder piston ring set for some 170, 175, D17, WC, WD, WD45, and WF farm tractors.

    Allis-Chalmers Piston Ring Set 4-Cylinder SOME 170, 175, D17, WC, WD, WD45, WF

    Allis-Chalmers
    $146.75
    AB-2082D
    Part Number: AB-2082DAllis-Chalmers Piston Ring SetFor select Allis-Chalmers, Case, International, and Massey Harris applications with 4" bore. Includes the listed compression and oil ring dimensions...
    Add to Cart
  • Ammeter 60-0-60 AMP Gauge 2-inch Diameter (Display), round analog current meter for measuring electrical current with black face and red needle.

    Ammeter 60-0-60 AMP Gauge 2" Dia (Display)

    Allis-Chalmers
    $18.50
    627
    Universal 60-0-60 AMP ammeter gauge with a 2" dia. hole fitment. Condition: New. Part Number: AMG60 Fits Allis Chalmers - 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 2RCP, 4650, 4660,...
    Out of stock
  • Wire Mini Alternator with Pulley 35 Amp, showing a compact automotive alternator with attached pulley and electrical connector on a brown background.

    1 Wire Mini Alternator with Pulley 35 Amp (Display)

    Allis-Chalmers
    $159.50
    466
    1 wire mini alternator with pulley, 35 amp. Used to convert 6 volt systems to 12 volt systems on negative ground systems only. Preferred for tractors requiring a smaller diameter alternator for...
    Add to Cart
  • Wire Mini Alternator with Pulley 35 Amp, compact metal automotive alternator with pulley and wiring connector, displayed on a plain surface.

    1 Wire Mini Alternator with Pulley 35 Amp (Display)

    Allis-Chalmers
    $159.50
    465
    1 wire mini alternator with pulley, 35 amp. Used to convert 6 volt systems to 12 volt systems on negative ground systems only. Preferred for tractors requiring a smaller diameter alternator for...
    Add to Cart
  • 105 Amp One Wire Alternator with Pulley for 6V to 12V Conversion, shiny metallic alternator with a pulley and an orange display tag attached.

    105 Amp One Wire Alternator with Pulley for 6V to 12V Conversion

    Allis-Chalmers
    $103.75
    464
    105 amp one wire alternator with pulley, used for converting 6 volt to 12 volt systems. Built-in regulator and 1 wire hook up for 12 volt negative ground systems. Part Number: AB-418D Fits Allis...
    Add to Cart
  • 160 Degree Thermostat - Allis Chalmers, Case, Cockshutt, Massey Ferguson, display showing used parts for tractor cooling system.

    160 Degree Thermostat - Allis Chalmers, Case, Cockshutt, Massey Ferguson (Display)

    Allis-Chalmers
    $27.75
    507
    160 degree thermostat for select Allis Chalmers, Case, Cockshutt, Massey Ferguson, and Massey Harris models. Part Number: AB-1898D Fits Allis Chalmers - D10, D12, D14, D15 with 4 bolt housing. WD,...
    Add to Cart
  • 6 Volt Distributor Coil AB-011D, display model of a black ignition coil with electrical connectors on top on a cardboard surface

    6 Volt Distributor Coil AB-011D (Display)

    Allis-Chalmers
    $22.25
    550
    6 Volt Distributor Coil - AB-011D This 6 volt distributor coil is listed as AB-011D and fits listed tractor applications. It includes multiple cross-reference numbers across several brands...
    Add to Cart
  • 6 Volt Voltage Regulator for Allis-Chalmers, black rectangular display unit with electrical terminals on the side, used parts display

    6 Volt Voltage Regulator for Allis-Chalmers (Display)

    Allis-Chalmers
    $34.25
    634
    6 volt external voltage regulator for selected tractors and generators. For positive ground systems with an A-type circuit and 7 to 9 amp output. Part Number: AB-153D Fits Allis Chalmers - B, C, CA,...
    Add to Cart
  • 63 Amp One Wire Alternator with Pulley for 6V to 12V Conversion, automotive electrical part displayed on a cardboard surface.

    63 Amp One Wire Alternator with Pulley for 6V to 12V Conversion (Display)

    Allis-Chalmers
    $103.75
    462
    63 amp one wire alternator with pulley, used for converting 6 volt to 12 volt systems. Built-in regulator and 1 wire hook up for 12 volt negative ground systems. Part Number: AB-418D Fits Allis...
    Add to Cart
  • 7 PSI Radiator Cap for Allis Chalmers, Case, Ford, IH, John Deere, display of radiator cap on a brown background.

    7 PSI Radiator Cap for Allis Chalmers, Case, Ford, IH, John Deere (Display)

    Allis-Chalmers
    $8.50
    531
    7 PSI radiator cap. For listed applications with a 1-inch tall filler neck. Condition: New. Part Number: AB-1396D Fits Allis Chalmers - B (sn 61221 & up), C (sn 18581 and up), CA, G, RC, WC (sn...
    Add to Cart
  • Allis Chalmers Gear Shift Lever Pins, Pair Oversized (Display), two metal pins with different sizes and shapes on a brown background with a white label showing the number 653 and 'Used Parts / Display' text.

    Allis Chalmers Gear Shift Lever Pins, Pair Oversized (Display)

    Allis-Chalmers
    $11.75
    653
    Allis Chalmers gear shift lever pins, pair, oversized. AC-253D is used to tighten up a worn shift lever and must be ground to fit the existing worn lever. Part Number: AC-253D Fits Allis Chalmers...
    Add to Cart

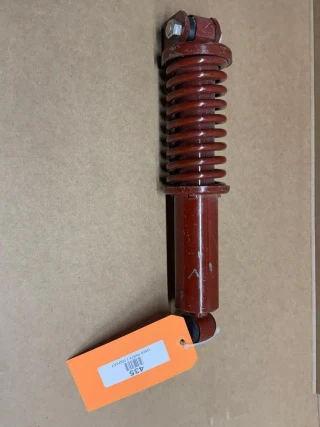

  • Allis Chalmers WD CA Seat Shock Absorber with Spring, display model, red color, vertical orientation.

    Allis Chalmers WD CA Seat Shock Absorber with Spring (Display)

    Allis-Chalmers
    $90.00
    435
    Allis Chalmers WD CA seat shock absorber with spring. Fits WD up to serial 127006 and includes CA modification notes. Must reuse outer spring as it is different. Part Number: AC-161D Fits Allis...
    Add to Cart
  • Allis Chalmers WD Seat Pivot Bolt Bushing, used part displayed on a brown surface with a label showing '680' and 'USED PARTS / DISPLAY'.

    Allis Chalmers WD Seat Pivot Bolt Bushing (Display)

    Allis-Chalmers
    $14.25
    680
    Part Number: AC-176D Overview Seat pivot bolt bushing for Allis-Chalmers WD tractors up to serial number 127007. Sold individually. Fits Allis Chalmers WD (up to sn 127007) Replaces / Cross...
    Add to Cart
  • Allis-Chalmers 12 Volt Chrome Bullet Style Tail Light Assembly, display showing a vintage chrome bullet-shaped tail light with wiring and mounting hardware on a brown background.

    Allis-Chalmers 12 Volt Chrome Bullet Style Tail Light Assembly (Display)

    Allis-Chalmers
    $23.25
    571
    12 volt chrome bullet style tail light assembly for select Allis-Chalmers and John Deere models. It is a 1 wire 12 volt chrome bullet style tail light assembly with a plastic lens. Part Number:...
    Add to Cart
  • Allis-Chalmers 4 PSI Radiator Cap, display showing used part with a metal radiator cap featuring a circular design with the word 'TIGHTEN' and 'REMOVE SLOWLY' embossed around the center.

    Allis-Chalmers 4 PSI Radiator Cap (Display)

    Allis-Chalmers
    $7.75
    538
    Allis-Chalmers 4 PSI radiator cap includes the gasket and is like the original. For 4 PSI pressurized systems with a 1.500" radiator neck ID. Part Number: AB-008D Fits Allis Chalmers: B (sn 61221 &...
    Add to Cart
  • Allis-Chalmers Cap Screw Bolt & Block 70202132, display image of a used bolt, a rectangular metal block with a hole, and a label indicating part number 665.

    Allis-Chalmers Cap Screw Bolt & Block 70202132 (Display)

    Allis-Chalmers
    $11.00
    665
    Cap screw, bolt, and block for fuel tank and radiator straps. Sold individually and supplied as 1 screw and 1 mounting block. Part Number: 70202132 Fits Allis Chalmers - B (prior to SN B-58401), IB,...
    Add to Cart
