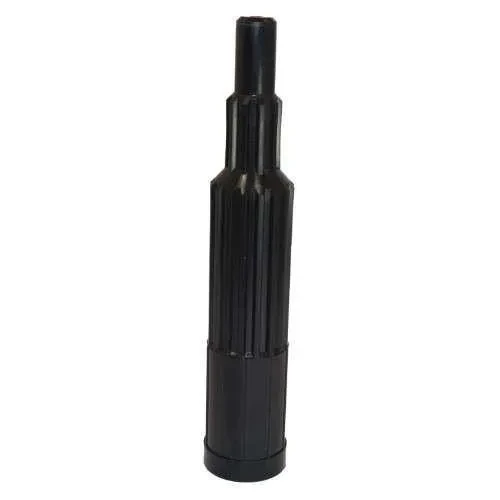

Clutch Alignment Tool for Case, Cockshutt, International

Clutch Alignment Tool for listed Case, Cockshutt, and International applications.

Part Number: AB-3109D

Fits

• Case - V, VA, VAC, VAC-11, VAC-12, VAC-13, VAC-14, VAH, VAI, VAIW, VAIW-3, VAO, VAO-15, VAS, VC, VI, VO, 200, 200B, 210B, 211B, 300, 300B, 301, 301B, 302, 302B, 310, 310B, 310D, 310E, 310F, 310G, 311, 311B, 312, 312B, 320, 320B, 350, 351, 400B, 410B, 411B, 420B, 420C, 500B, 510B, 511B, 600B, 610B, 611B, 614B, 630, 631, 632, 634, 640, 641, 642, 644 (with single disc clutch)
• Case - 430, 430CK, 431, 435, 440, 441, 445, 530, 530CK, 531, 535, 540, 541, 545 (with single disc clutch; up to SN: 8191147)
• Cockshutt - E3, 30
• International - 2504, 2544, 2606, 2656, 300, 330, 340, 350, 3514, 3616 (gas, up to SN: 1945), 3514, 3616 (diesel, up to SN: 2117), 460, 504, 544, 606, 656, 664, 666, 686

Specs

• Small spline: 1-1/8" spline O.D.
• Small spline: 10 splines
• Small spline: 0.787" pilot
• Small spline: 9-3/8" overall length
• Large spline: 1-11/16" spline O.D.
• Large spline: 16 spline
