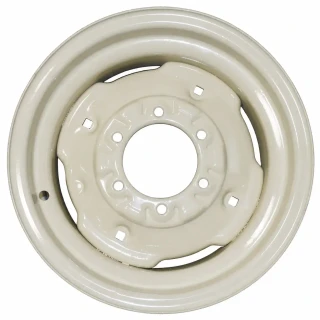

Front Wheel Rim 6 x 16 in 6 Lug Square Weight Holes

Front wheel rim with 6 x 16" size, 6 lug pattern, square weight holes, and valve stem guard.

Fits

• Allis Chalmers: Some D17 (SN: 75001 & up), D19, 160, 170, 175, 180, 185, 190, 190XT, 200, 6060, 6070, 6080, 7000, I60, I600, and others using 6 x 16" 6 lug rim
• Cockshutt - various models
• Case: Some 380CK, 430, 431, 440, 441, 530, 531, 540, 541, 730, 731, 741, 770, 830, 831, 840, 841, 870, 930, 970, 1030, 1070, 1175, and others using 6 x 16" 6 lug rim
• Ford: Some 2310, 2600, 2610, 2810, 2910, 3230, 3400, 3430, 3500, 3600, 3610, 3900, 3910, 3930, 4000, 4000 SU, 4100, 4110, 4130, 4140, 4400, 4500, 4600, 4610, 4830, 5000, 5030, 5110, 5190, 5200, 5600, 5610, 5640, 5700, 5900, 6000, 6410, 6600, 6610, 6700, 6710, 6810, 7000, 7100, 7200, 7600, 7610, 7700, 7710, 7740, 8000, 8200, 8600, 8700, 9000, 9700, 230A, 234, 334, 335, 530A and others using 6 x 16" 6 lug rim
• IH / Farmall: Some 385, 404, 424, 444, 460, 454, 464, 484, 504, 544, 560, 574, 584, 606, 656, 666, 674, 684, 686, 706, 756, 766, 784, 786, 806, 826, 856, 884, 886, 966, 986, 1026, 1206, 1256, 1456, 3088, 3288, 3688, Hydro 70, H84, Hydro 86, Hydro 100, and others using 6 x 16" 6 lug rim
• John Deere: Some of the following with 2 wheel drive (chek: 1020, 1120, 1250, 1450, 1520, 1530, 1650, 2010, 2020, 2120, 2030, 2040, 2240, 2440, 2630, 2640, 3010, 3020, 3120, 4000, 4010, 4020, 4030, 4040, 4230, 4240, 4320, 4430, 5065M, 5075E, 5075M, 5078E, 5083EN, 5085E, 5085M, 5093EN, 5095M, 5101EN, 5105, 5105M, 5200, 5205, 5210, 5220, 5225, 5300, 5303, 5310, 5310N, 5320, 5320N, 5325, 5325N, 5400, 5403, 5410, 5415, 5415K, 5415N, 5420, 5420N, 5425, 5425N, 5500, 5510, 5510N, 5520, 5520N, 5525, 5525N, 5600, 5603, 5605, 5615, 5625, 5700, 5705, 5715, 5715HC, 5725, 5275N and Industrial: 21C, 300, 300B, 301, 301A, 302, 302A, 310, 380, 400, 401, 401B, 401C, 480, 480A, 480B, 500, 500A and others using 6 x 16" 6 lug rim
• Massey Ferguson: Some 35 Turf Special, 50, 65, 85, Super 90, 202, 203, 204, 205, 2135, 3165 and others using 6 x 16" 6 lug rim
• MM: Some 335, 445, 4 Star, 4 Star Super, 5 Star, Big Mo 400, Big Mo 500, Big Mo 600, G1000, M5, M602, M670, U302
• Oliver: Some 1550, 1555, 1600, 1650, 1655, 1750, 1755, 1850, 1855, White: 2-70, 2-85, 2-88, 60 and others

Replaces / Cross Reference

• Allis Chalmers 70237405
• Allis Chalmers 70235727
• Case G45291
• Case G57046
• Ford 82005056
• Ford C5NN1007A
• International Harvester 364343R92
• John Deere JD1293
• John Deere JD3039
• Massey Ferguson 183027M91
• Massey Ferguson 509893M91
• MM 10A9409
• MM 10A9839
• MM 10A27292
• MM 11A989
• MM 10A22565
• Oliver 100014A
• Oliver 30-3040003

Specs

• 6 x 16" 6 lug rim
• Valve stem guard
• 6" bolt circle
• 4.625" pilot hole
• Backspacing: 4.75"
• Measure bead to bead on the inside to determine rim width

Part Number: WH-043BD
