Description

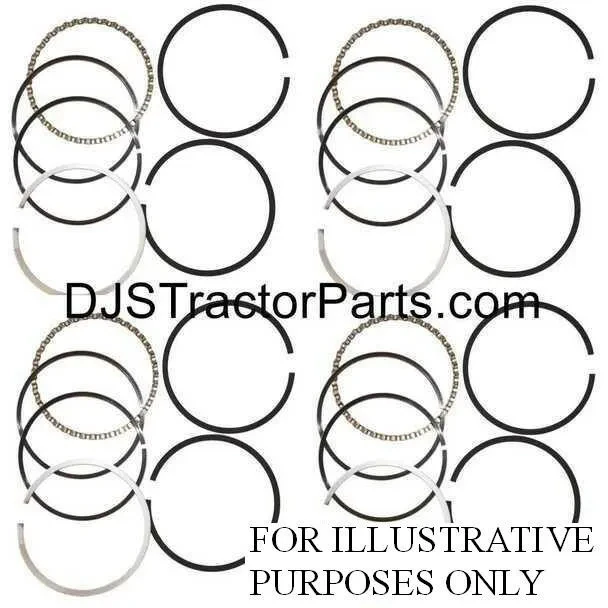

Piston ring set for select 4-cylinder engines with 3-1/4" bore. Verify old rings before ordering, and do not order by tractor model only.
Part Number: AB-2166D
Fits
- Allis Chalmers - B (Early w/ Waukesha flathead engine, if 3 ring piston discard 1 compression ring, and 3-1/4" bore, (3) 0.125" compression rings, (1) 0.187" oil ring)
- Allis Chalmers - B (Early w/ AC engine and 3-1/4" bore, (3) 0.125" compression rings, (1) 0.187" oil ring)
- Case - R, RC (w/ 3-1/4" bore, (3) 0.125" compression rings, (1) 0.187" oil ring)
- Massey Ferguson - TO30 (w/ 3-1/4" bore, (3) 0.125" compression rings, (1) 0.187" oil ring)
- Minneapolis Moline - W/ IXB3 HERCULES: BF, BG (w/ 3-1/4" bore, (3) 0.125" compression rings, (1) 0.187" oil ring; on 3 ring pistons discard one compression ring)
- Oliver - W/ IXB3 HERCULES: HG, OC-3 (w/ 3-1/4" bore, (3) 0.125" compression rings, (1) 0.187" oil ring; on 3 ring pistons discard one compression ring)
Specs
- 3-1/4" bore
- (3) 0.125" compression rings
- (1) 0.187" oil ring
Notes
- Do not order by tractor model only.
- Measure old rings before ordering.
- Due to the many different piston manufacturers, there can be as many as 8 different ring set available for one particular engine.
