Allis Chalmers 170 Tractor Parts

About the Allis-Chalmers 170

The Allis-Chalmers 170 was one of the larger tractors in the company's 1960s line. Introduced in 1967 as the One-Seventy, it used a four-cylinder engine, live PTO, hydraulic power assist, and an eight-speed transmission with two-speed power shift.

Early Allis-Chalmers literature calls it the One-Seventy, while later tractors use the numeric 170 marking. The model was available with gasoline or diesel power and was built through 1973, so the tractor year and serial number are useful when matching parts.

Serial Number Reference

Serial number locations: The tractor serial number is on the left front side of the torque housing. The gasoline engine serial number is at the rear left side of the engine block behind the carburetor. The diesel engine serial number is on the top right side of the cylinder block.

The table below shows the beginning tractor serial number for each Model 170 year:



1967-1969
Model 170 year Beginning serial number
1967 1,005
1968 2,721
1969 5,374
1970-1971
Model 170 year Beginning serial number
1970 6,369
1971 6,988
1972-1973
Model 170 year Beginning serial number
1972 7,797
1973 8,821

Total production: 9,303 Model 170 tractors; fuel-type production totals were not available.

Allis-Chalmers 170 Paint Reference

For restoration planning, the Allis-Chalmers 170 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers 170 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream Cream, Aluminum Persian Orange 2 Persian Orange 2

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • A glossy red, dome-shaped ribbed light lens with a ridged circular base, shown against a white background. It is an Allis-Chalmers Power Director tractor light lens.

    Allis-Chalmers Power Director Light Lens - Red Lens

    Allis-Chalmers
    $13.75
    70240838-R
    Red Power Director light lens for select Allis-Chalmers tractors.Part Number: 70240838-RFitsAllis Chalmers D17Allis Chalmers D19Allis Chalmers D21Allis Chalmers 170Allis Chalmers 175Allis Chalmers...
    Add to Cart
  • Allis-Chalmers farm tractor cigarette lighter, featuring a black knob with a cigarette symbol, a gold-toned metal body, and a red wire.

    Black Cigarette Lighter with Cigarette on Knob JD-974BD

    Allis-Chalmers
    $19.75
    JD-974BD
    Black cigarette lighter with a cigarette design on the knob. Listed under part number JD-974BD.Part Number: JD-974BDSpecsBlack cigarette lighterCigarette design on knobNotesCompare knob style before...
    Add to Cart
  • Allis-Chalmers Ammeter 60-0-60 AMP Gauge 2 inch Diameter, analog display of electrical current measurement with black dial and red needle.

    Ammeter 60-0-60 AMP Gauge 2" Dia

    Allis-Chalmers
    $23.00
    AMG60
    Universal 60-0-60 AMP ammeter gauge with a 2" dia. hole fitment. Condition: New.Part Number: AMG60FitsAllis Chalmers - 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 2RCP, 4650, 4660, 4W-220,...
    Add to Cart
  • Close-up of an Allis-Chalmers Autolite 405 spark plug for a farm tractor, with a white ceramic insulator, metal terminal, black threaded body, and curved electrode.

    Autolite 405 Spark Plug

    Allis-Chalmers
    $7.25
    AL405
    Autolite 405 spark plug for select Allis Chalmers, Cockshutt, Ford, MF Miscellaneous, and Oliver applications.Part Number: AL405FitsAllis Chalmers - 190XTAllis Chalmers - D17 (SN: 75001 and up)Allis...
    Add to Cart
  • Allis-Chalmers tractor seat rod hardware kit displayed on a white background, with two bronze-colored round washers, six split roll pins, and two silver three-pronged retaining clips.

    Allis Chalmers Seat Rod Hardware Kit

    Allis-Chalmers
    $12.75
    SEAT001
    Allis Chalmers seat rod hardware kit for select tractor models. Includes stainless washers, split retaining rings, and stainless roll pins.Part Number:...
    Add to Cart
  • Allis-Chalmers tractor water pump with a dark cast-metal housing, round pulley hub with four threaded holes, and a separate mounting gasket, for D17, 170, and 175 farm tractors.

    Water Pump for Allis-Chalmers D17, 170, 175

    Allis-Chalmers
    $118.75
    AC-2799D
    Water pump for Allis-Chalmers D17, 170, and 175 with late 226 cubic inch gas and LP engines.Includes fixed cast iron pulley, backing plate, and gasket.Part Number: AC-2799DFitsAllis Chalmers - D17,...
    Add to Cart
  • Long orange metal toolbox with a hinged lid and front latch, for Allis-Chalmers D17, D19, 170, 175, 180, 185, 190, 190XT, 200, 210, and 220 farm tractors. Shown against a white background.

    Toolbox for Allis-Chalmers D17, D19, 170, 175, 180, 185, 190, 190XT, 200, 210, 220

    Allis-Chalmers
    $59.75
    AC-144D
    Toolbox for Allis-Chalmers D17, D19, 170, 175, 180, 185, 190, 190XT, 200, 210, and 220 models.Part Number: AC-144DFitsAllis Chalmers - D17, D19, 170, 175, 180, 185, 190, 190XT, 200, 210, 220Replaces...
    Add to Cart

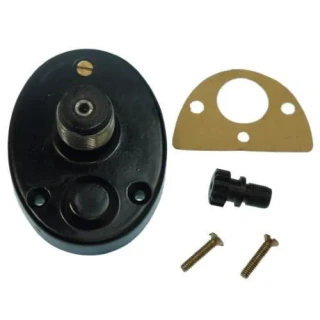

  • Tachometer drive gear assembly for Allis-Chalmers farm tractors, shown with a black oval housing, brass mounting plate, black fitting, and two screws. Fits models 190, 190XT, 200, 210, and 220.

    Tachometer Tach Drive Gear Assembly for Allis-Chalmers 190, 190XT, 200, 210, 220

    Allis-Chalmers
    $44.00
    70246764-A
    Tachometer Tach Drive Gear Assembly for Allis-Chalmers tractors with generator or alternator driven tachometer.Part Number: 70246764-AFitsAllis Chalmers - D21, 170, 175, 180, 185, 190, 190XT, 200,...
    Add to Cart
  • Allis-Chalmers farm tractor cap screw bolt and rectangular block, part 70202132. The long threaded screw has a slotted head and tapered end; the flat block has a central hole.

    Allis-Chalmers Cap Screw Bolt & Block 70202132

    Allis-Chalmers
    $13.75
    70202132 (009)
    Cap screw, bolt, and block for fuel tank and radiator straps. Sold individually and supplied as 1 screw and 1 mounting block.Part Number: 70202132 (009)FitsAllis Chalmers - D10, D12, D14, D15, D17,...
    Add to Cart
  • Allis-Chalmers tractor cap screw and rectangular block, part number 70202132. The long threaded screw has a tapered end and slotted head; the flat block has a centered hole.

    Allis-Chalmers Cap Screw Bolt & Block 70202132

    Allis-Chalmers
    $13.75
    70202132
    Cap screw, bolt, and block for fuel tank and radiator straps. Sold individually and supplied as 1 screw and 1 mounting block.Part Number: 70202132FitsAllis Chalmers - B (prior to SN B-58401), IB, C,...
    Add to Cart

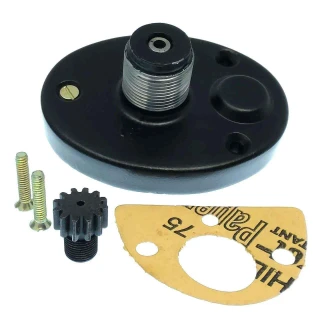

  • Allis-Chalmers farm tractor tachometer drive gear assembly kit, with black housing, threaded drive, separate gear, two screws, and gasket, shown on a white background.

    Allis-Chalmers Tachometer Drive Gear Assembly

    Allis-Chalmers
    $44.00
    70246764-B
    Tachometer drive gear assembly for the listed applications below. Note: 70246764-B is made for Aftermarket AlternatorsPart Number: 70246764-BFitsAllis Chalmers - D21, 170, 175, 180, 185, 190, 190XT,...
    Add to Cart
  • Allis-Chalmers Clutch Throw Out Bearing, a metallic automotive clutch component.

    Allis-Chalmers Clutch Throw Out Bearing

    Allis-Chalmers
    $24.75
    AB-2501D
    Sealed bearing, no need to grease. Use the fitment and cross references below to confirm application.Part Number: AB-2501DFitsAllis Chalmers - D17 (SN: 75001 and up), 170, 175, 210, 220, 7000Case -...
    Add to Cart
  • Allis-Chalmers Carburetor Gasket Kit for Big Bowl Marvel Scheblers, featuring several gasket parts and small O-rings for carburetor repair.

    Carburetor Gasket Kit for Big Bowl Marvel Scheblers

    Allis-Chalmers
    $6.75
    AB-2275D
    Carburetor gasket kit for Big Bowl Marvel Scheblers applications across multiple tractor brands.Part Number: AB-2275DFitsAllis Chalmers: 170, 175, 180, 185 (D Grader), D15, D17, WD45Case: 530, 531,...
    Add to Cart
  • Allis-Chalmers Choke or Fuel Shut Off Cable Clip, metallic hardware part used for engine control cable management.

    Choke or Fuel Shut Off Cable Clip

    Allis-Chalmers
    $6.75
    AB-2426D
    Choke or fuel shut off cable clip for listed Allis-Chalmers, Avery, Case, International, and John Deere applications.Part Number: AB-2426DFitsAC Combines - Industrial: 60 (for choke cable bracket...
    Add to Cart
  • Allis-Chalmers 2-Piece Rear Crankshaft Main Seal, black gasket ring for Allis Chalmers 170 175 D17 tractor.

    2-Piece Rear Crankshaft Main Seal - Allis Chalmers 170 175 D17

    Allis-Chalmers
    $11.75
    AC-2388D
    2-piece rear crankshaft main seal for the listed Allis Chalmers and other applications.Part Number: AC-2388DFitsAllis Chalmers: 170, 175, D17 (with 226" gas/LP)Combines: E, E3, K (with 226"...
    Add to Cart
  • Two gray semicircular Allis-Chalmers connecting rod bearing shells, .020-inch undersize, shown on a white background for D17, WD, WD45, 170, 175, WC, and WF farm tractors.

    Connecting Rod Bearing .020 Undersize for Allis-Chalmers D17, WD, WD45, 170, 175, WC, WF

    Allis-Chalmers
    $15.00
    AC-2562D
    Connecting rod bearing .020" undersize for the Allis-Chalmers applications listed below. Sold per journal.Part Number: AC-2562DFitsAllis Chalmers D17, WD, WD45, 170, 175 (gas, LP with G201, G226...
    Add to Cart
  • Two curved metal connecting rod bearing shells for Allis-Chalmers farm tractors, shown separately against a white background.

    Connecting Rod Bearing .010 Undersize for Allis-Chalmers D17, WD, WD45, 170, 175, WC, WF

    Allis-Chalmers
    $15.75
    AC-2493D
    Connecting rod bearing .010 undersize for the Allis-Chalmers applications listed below. Sold per journal.Part Number: AC-2493DFitsAllis Chalmers D17, WD, WD45, 170, 175 (Gas, LP with G201, G226...
    Add to Cart
  • Two silver-gray halves of a standard connecting rod bearing for Allis-Chalmers farm tractors, shown separated and curved into open semicircles.

    Standard Connecting Rod Bearing for Allis-Chalmers D17, WD, WD45, 170, 175, WC, WF

    Allis-Chalmers
    $14.25
    AC-2490D
    Standard connecting rod bearing for Allis-Chalmers applications listed below. Sold per journal.Part Number: AC-2490DFitsAllis Chalmers D17, WD, WD45, 170, 175 (gas, LP with G201, G226 engines)Allis...
    Add to Cart
