Allis Chalmers 170 Tractor Parts

About the Allis-Chalmers 170

The Allis-Chalmers 170 was one of the larger tractors in the company's 1960s line. Introduced in 1967 as the One-Seventy, it used a four-cylinder engine, live PTO, hydraulic power assist, and an eight-speed transmission with two-speed power shift.

Early Allis-Chalmers literature calls it the One-Seventy, while later tractors use the numeric 170 marking. The model was available with gasoline or diesel power and was built through 1973, so the tractor year and serial number are useful when matching parts.

Serial Number Reference

Serial number locations: The tractor serial number is on the left front side of the torque housing. The gasoline engine serial number is at the rear left side of the engine block behind the carburetor. The diesel engine serial number is on the top right side of the cylinder block.

The table below shows the beginning tractor serial number for each Model 170 year:



1967-1969
Model 170 year Beginning serial number
1967 1,005
1968 2,721
1969 5,374
1970-1971
Model 170 year Beginning serial number
1970 6,369
1971 6,988
1972-1973
Model 170 year Beginning serial number
1972 7,797
1973 8,821

Total production: 9,303 Model 170 tractors; fuel-type production totals were not available.

Allis-Chalmers 170 Paint Reference

For restoration planning, the Allis-Chalmers 170 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers 170 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream Cream, Aluminum Persian Orange 2 Persian Orange 2

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Round brown cork fuel-sending-unit gasket with a large center opening and five smaller mounting holes, for Allis-Chalmers and other farm tractors.

    Cork Fuel Sending Unit Gasket - Allis Chalmers, Case, International, John Deere, Massey Ferguson, Minneapolis Moline

    Allis-Chalmers
    $4.75
    AB-3256D
    Part Number: AB-3256DFitsAllis Chalmers - D21, 170, 175, 180, 185, 190, 190XT, 4W220, 4W305, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580, 8010, 8030, 8050, 8070,...
    Add to Cart
  • Black curved bottom radiator hose for Allis-Chalmers 170 and 175 diesel farm tractors, with metal reinforcement rings visible inside both ends.

    Allis-Chalmers 170 175 Diesel Bottom Radiator Hose 70249756

    Allis-Chalmers
    $19.75
    70249756
    Part Number: 70249756Bottom Radiator HoseBottom radiator hose for Allis-Chalmers 170 and 175 Diesel models.FitsAllis-Chalmers 170 DieselAllis-Chalmers 175 DieselReplaces / Cross...
    Add to Cart

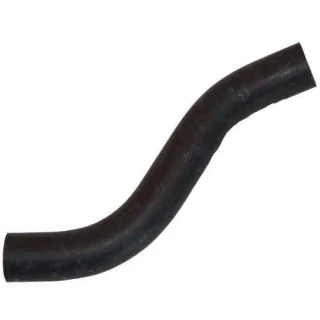

  • Black curved upper radiator hose for Allis-Chalmers farm tractors, part 70249759, shown on a white background.

    Allis Chalmers Upper Radiator Hose 70249759

    Allis-Chalmers
    $21.75
    70249759
    Part Number: 70249759Allis Chalmers Upper Radiator HoseUpper radiator hose for select Allis Chalmers gas models.Fits170 (Both Gas)175 (Both Gas)Replaces / Cross Reference70249759249759NotesUpper...
    Add to Cart
  • Black Allis-Chalmers upper radiator hose for 170 and 175 diesel farm tractors, shown horizontally against a white background.

    Upper Radiator Hose Allis Chalmers 170 175 Diesel 70249755

    Allis-Chalmers
    $11.50
    70249755
    Part Number: 70249755Upper Radiator Hose Allis Chalmers 170 175 Diesel 70249755Upper radiator hose for Allis-Chalmers 170 and 175 diesel tractors.Fits170, 175 (Both Diesel)Replaces / Cross...
    Add to Cart
  • Black curved lower radiator hose for an Allis-Chalmers farm tractor, part number 70249760, shown against a white background.

    Allis Chalmers Lower Radiator Hose 70249760

    Allis-Chalmers
    $21.25
    70249760
    Part Number: 70249760Allis Chalmers Lower Radiator HoseLower radiator hose for select Allis Chalmers gas models.Fits170 (Both Gas)175 (Both Gas)Replaces / Cross Reference70249760249760NotesLower...
    Add to Cart
  • A short, hollow cylindrical steel bushing for an Allis-Chalmers farm tractor seat shock, shown at an angle on a white background.

    Allis Chalmers Seat Shock Steel Bushing

    Allis-Chalmers
    $5.95
    70226045
    Seat shock steel bushing for listed Allis-Chalmers tractor models.Part Number: 70226045FitsAllis Chalmers - B, IB, C, CA, RC, WC, WD, WD45, D10, D12, D14, D15, D17, D19, D21, 170, 175, 180, 185, 190,...
    Add to Cart
  • Black Allis-Chalmers 10-spline clutch alignment tool for farm tractors, with a splined central shaft and circular handle.

    10 Spline Clutch Alignment Tool Allis Chalmers

    Allis-Chalmers
    $22.50
    AB-3113D
    10 spline clutch alignment tool for Allis Chalmers tractors and combines, plus select IH, John Deere, Minneapolis Moline, and Oliver models.Use the spline and pilot dimensions below to verify fit...
    Add to Cart
  • Brass temperature sending unit for an Allis-Chalmers D21 farm tractor, with a long probe, threaded hex fitting, green body, and threaded electrical terminal.

    Temperature Sending Unit for Allis-Chalmers D21, 170-7000

    Allis-Chalmers
    $19.75
    70241249
    Temperature Sending Unit for Allis Chalmers tractors.Part Number: 70241249FitsD21, 170, 175, 180, 185, 190, 190XT, 190XT III, 200, 210, 220, 220 FWA, 7000Replaces / Cross Reference70241249, 241249,...
    Add to Cart
  • Allis-Chalmers farm tractor valve train kit for WC, WD, WD45, and WF models, arranged on a white background with eight valves, valve springs, and assorted small cylindrical components.

    Valve Train Kit for Allis Chalmers WC WD WD45 WF

    Allis-Chalmers
    $133.50
    ACVTK201
    Valve train kit for Allis Chalmers WC, WD, WD45, and WF.Fits 201 and 226 cubic inch engines.Part Number: ACVTK201FitsAllis Chalmers WCAllis Chalmers WDAllis Chalmers WD45Allis Chalmers WFNotesKit...
    Add to Cart
  • Allis-Chalmers governor weight pin with two retaining clips, shown separately on a white background.

    Allis Chalmers Governor Weight Pin for D17 WC WD WD45 WF 170 175

    Allis-Chalmers
    $8.75
    AC-319D
    Governor weight pin for Allis Chalmers tractors.Fits D17, WC, WD, WD45, WF, 170, and 175 with 4 cylinder 201 or 226 cubic inch gas engines.Part Number: AC-319DReplaces / Cross ReferenceClip:...
    Add to Cart
  • Metal Allis-Chalmers governor weight for D17, WC, WD, WD45, WF, 170, and 175 farm tractors, shown against a white background.

    Allis Chalmers Governor Weight for D17 WC WD WD45 WF 170 175

    Allis-Chalmers
    $29.75
    AC-318D
    Governor weight for Allis Chalmers tractors.Fits D17, WC, WD, WD45, WF, 170, and 175 with 4 cylinder gas and 201 or 226 cubic inch engines.Part Number: AC-318DReplaces / Cross...
    Add to Cart
  • Metal Allis-Chalmers governor gear for D17, 170, and 175 farm tractors, shown at an angle with its toothed rim and central hub.

    Allis Chalmers Governor Gear for D17 170 175

    Allis-Chalmers
    $149.75
    AC-317D
    27 teeth governor gear.Fits Allis Chalmers D17, 170, and 175 with 4 cylinder gas and 226 cubic inch engine.Part Number: AC-317DReplaces / Cross Reference22951070229510Casting Number: AM4479FitsAC...
    Add to Cart
  • Black 2-1/8-inch NBR sediment bowl gasket for Allis-Chalmers and other farm tractors, shown as a flat circular ring with a large center opening on a white background.

    2-1/8" Sediment Bowl Gasket (NBR) - Allis Chalmers, Case, Cockshutt, International, John Deere, Massey Ferguson, Oliver, White

    Allis-Chalmers
    $2.50
    70208137
    Note: 2-1/8" sediment bowl gasket made from Nitrile butadiene rubber (NBR).Part Number: 70208137FitsAllis Chalmers 190XTAllis Chalmers D15 (Gas models with SN: 9001 & up and all Dsl models)Allis...
    Add to Cart

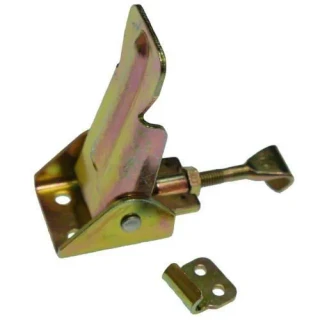

  • Zinc-plated Allis-Chalmers farm tractor grill hood latch kit, showing the main latch assembly with a pull handle and a separate two-hole catch plate on a white background.

    Grill Hood Latch Kit for Allis-Chalmers D21 160 170 175 180 185 190 190XT 190XT III 200 210

    Allis-Chalmers
    $17.00
    70243274
    Grill hood latch kit for select Allis-Chalmers tractors.This kit includes the latch and loop.Part Number: 70243274FitsAllis Chalmers - D21, 160, 170, 175, 180, 185, 190, 190XT, 190XT III, 200,...
    Add to Cart
  • Circular pinion shaft axle oil seal for Allis-Chalmers WD, WD45, D17, 170, 175, 180, and 185 farm tractors, with a gold-tone metal outer casing and black rubber inner sealing lip.

    Allis-Chalmers WD WD45 D17 170 175 180 185 Pinion Shaft Axle Oil Seal

    Allis-Chalmers
    $15.65
    70218450
    Part Number: 70218450Allis-Chalmers Pinion Shaft Axle Oil SealPinion shaft axle oil seal for listed Allis-Chalmers tractors.FitsAllis Chalmers - WD, WD45, D17, 170, 175, 180, 185Replaces / Cross...
    Add to Cart
  • Allis-Chalmers fuel sending unit for farm tractor models 170 and 175, with a metal mounting plate, long sender arm and white float, plus a separate black gasket.

    Allis-Chalmers Fuel Sending Unit for 170 175

    Allis-Chalmers
    $65.25
    70249218
    Part Number: 70249218Fuel Sending UnitFuel sending unit for the listed Allis-Chalmers tractors.FitsAllis-Chalmers 170Allis-Chalmers 175Replaces / Cross Reference70249218249218
    Add to Cart
  • Replacement Viton needle float valve and threaded brass seat with copper-colored gasket and metal retaining clip for Marvel-Schebler carburetors on Allis-Chalmers farm tractors.

    Viton Needle Float Valve & Seat - Marvel Schebler Carburetors

    Allis-Chalmers
    $8.00
    AB-133D
    Viton needle float valve & seat for Marvel Schebler carburetors.Part Number: AB-133DFitsAllis Chalmers WD45Allis Chalmers D15 (Sn# 9001-Up)Allis Chalmers D17Allis Chalmers D19Allis Chalmers 170Allis...
    Add to Cart
  • Black five-blade fan for an Allis-Chalmers farm tractor, shown against a white background.

    Allis Chalmers 5 Blade Fan

    Allis-Chalmers
    $98.50
    70240973
    Allis Chalmers 5 blade fan for listed gas and diesel models.Part Number: 70240973FitsAllis Chalmers D17 (Gas & Dsl)Allis Chalmers D19 (Gas & Dsl)Allis Chalmers WCAllis Chalmers WD45 (Gas & Dsl)Allis...
    Add to Cart
