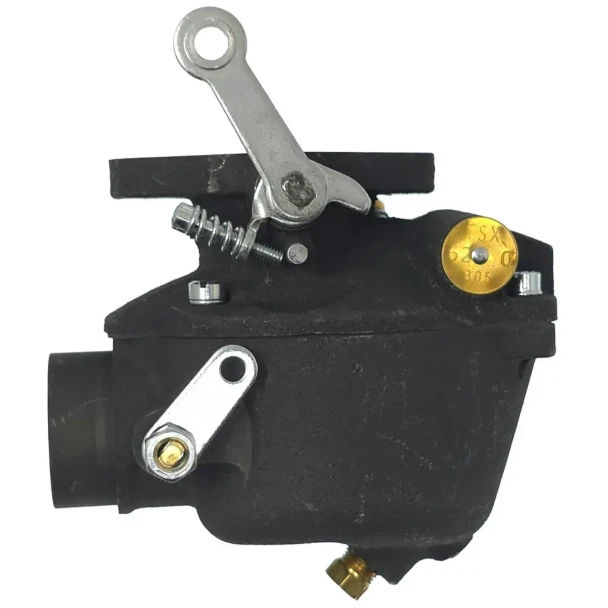

Allis Chalmers B IB C RC Marvel Schebler Carburetor

Allis Chalmers - B, IB, C, RC

New Marvel Schebler carburetor.

Part Number: 70222090

Fits

• Allis Chalmers - B, IB, C, RC
• Fits all equipped with Marvel Schebler carburetors: TSX154 (AC #222091) or TSX305 (AC #222090)

Replaces / Cross Reference

• TSX154
• TSX305
• 70222090
• 222090
• 70222091
• 222091
• 10697
• 10698
• 10698A
• 10902A
• 10903A
• 9705
• 9706

Specs

• Cast iron carburetor
• 2-1/4" mounting pattern
• 1-1/16" inside diameter throttle throat
• 1-1/2" outside diameter choke (air horn)
• 1/8" NPT fuel inlet

Notes

• New reproduction of the original Marvel Schebler carb
• NO REFUNDS OR REPLACEMENTS WILL BE GIVEN IF WE FIND ANY DIRT, RUST, CONTAMINATION INSIDE THE CARBURETOR OR IF THE CARBURETOR HAS BEEN TAKEN APART.
