Allis Chalmers D12 Tractor Parts

Allis-Chalmers D12 Tractor Parts

About the Allis-Chalmers D12

Allis-Chalmers introduced the D12 in 1959 as part of the new D Series. It was a compact row-crop tractor with a four-cylinder gasoline engine, four-speed transmission, live hydraulics, and a 540-rpm PTO. A D12 High Clearance version was also offered for cultivation work where extra clearance mattered.

The D12 stayed in production through 1968 and went through Series I, Series II, and Series III updates during that run. Early and later tractors can therefore differ in engine parts, air-cleaner parts, electrical equipment, and other details, even when both are called a D12. The serial number is the best starting point when checking parts.

Serial Number Reference

Serial number locations: The tractor serial number is stamped into the flange where the engine and transmission meet on the left side of the tractor. The engine serial number is on the rear left-hand side of the engine block behind the carburetor.

The table below shows the beginning tractor serial number for each Model D12 year and series:



1959-1961
Model D12 year Beginning serial number
1959 - Series I 1,001
1960 - Series I 1,950
1961 - Series I 2,801
1961 - Series II 3,001
1962-1964
Model D12 year Beginning serial number
1962 - Series II 3,638
1963 - Series II 5,501
1964 - Series II 6,012
1964 - Series III 9,001
1965-1968
Model D12 year Beginning serial number
1965 - Series III 9,192
1966 - Series III 9,508
1967 - Series III 9,830
1968 - Series III 9,979

Total production: About 4,070 Model D12 tractors.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Heavy Duty 4 Button 9-inch Spring Loaded Clutch Disc, for Allis-Chalmers B, C, CA, D10, D12, D14, D15 tractors.

    Heavy Duty 4 Button 9" Spring Loaded Clutch Disc for Allis-Chalmers B, C, CA, D10, D12, D14, D15

    Allis-Chalmers
    $220.75
    70253187
    Heavy Duty 4 Button 9" Spring Loaded Clutch DiscFor Allis-Chalmers models listed below. Includes a 10 spline, 1-1/8" spline diameter.Part Number: 70253187FitsAllis Chalmers - B, IB, C, CA, D10, D12,...
    Add to Cart
  • Allis-Chalmers PTO Over-Running Clutch, heavy-duty agricultural machinery part with mounting and release mechanism.

    PTO Over-Running Clutch

    Allis-Chalmers
    $70.75
    MI-118D
    PTO over-running clutch - MI-118D for the listed tractor brands.Tractors up to 75 horsepower.Part Number: MI-118DFitsAllis ChalmersAveryCaseCockshuttFordIH / FarmallJohn DeereMassey FergusonMassey...
    Add to Cart
  • Allis-Chalmers Trunnion Lift Rod for Allis-Chalmers D10, D12, D15, red cast iron component for tractor maintenance.

    Trunnion Lift Rod for Allis-Chalmers D10, D12, D15

    Allis-Chalmers
    $24.75
    70234884
    Part Number: 70234884Trunnion Lift RodFor Allis-Chalmers D10, D12, and D15. Requires 2 per tractor. New condition.FitsAllis-Chalmers D10Allis-Chalmers D12Allis-Chalmers D15Replaces / Cross...
    Add to Cart
  • Allis-Chalmers D10 D12 Hood with Oval Hole, tractor hood replacement for Allis-Chalmers D series models.

    Allis Chalmers D10 D12 Hood with Oval Hole

    Allis-Chalmers
    $465.00
    DJS1012-O
    Hood with oval hole for Allis Chalmers tractors.Sold under part number DJS1012-O.Part Number: DJS1012-OFitsAllis Chalmers D10Allis Chalmers D12 Series IAllis Chalmers D12 Series IIAllis Chalmers D12...
    Add to Cart
  • Allis-Chalmers Allis Chalmers D12 Series I 1959-1960 Vinyl Cut Decal Set, vintage tractor decals and stickers for restoration or customization.

    Allis Chalmers D12 Series I 1959-1960 Vinyl Cut Decal Set

    Allis-Chalmers
    $70.00
    DJS133
    Allis Chalmers D12 Series I 1959-1960 vinyl cut decal set with bars on grill. USA made.Store in a cool, dry place. Do not soak in water. No refunds on vinyl cut decals.Part Number: DJS133FitsAllis...
    Add to Cart
  • Allis-Chalmers Allis Chalmers PTO Guard (Shield) - B, IB, C, CA, D10, D12 - 70231775

    Allis Chalmers PTO Guard (Shield) - B, IB, C, CA, D10, D12

    Allis-Chalmers
    $95.00
    70231775
    Allis Chalmers PTO Guard (Shield) for B, IB, C, CA, D10, and D12 tractors. Comes primered.Part Number: 70231775FitsAllis Chalmers BAllis Chalmers IBAllis Chalmers CAllis Chalmers CAAllis Chalmers D10...
    Add to Cart
  • AGCO Oil Pump Gasket - Allis Chalmers D10, D12, gasket for oil pump replacement.

    Allis-Chalmers D10 D12 Oil Pump Gasket - 70228393

    AGCO
    $7.50
    70228393
    Allis-Chalmers oil pump gasket for D10 and D12.Replaces 70228393 and 228393.Part Number: 70228393FitsAllis-Chalmers D10Allis-Chalmers D12Replaces / Cross Reference70228393228393
    Add to Cart
  • Allis-Chalmers PTO Over-Running Clutch, mechanical tractor part with mounting component and removal tool.

    PTO Over-Running Clutch

    Allis-Chalmers
    $70.75
    MI-138D
    PTO over-running clutch - MI-138D for the listed tractor brands.Tractors up to 75 horsepower.Part Number: MI-138DFitsAllis ChalmersAveryCaseCockshuttFordIH / FarmallJohn DeereMassey FergusonMassey...
    Add to Cart
  • Allis-Chalmers 3 Rib 6.50 x 16 Tire, black rubber agricultural tractor tire with three rib tread design.

    3 Rib 6.50 x 16 Tire

    Allis-Chalmers
    $129.50
    WH-049D
    3 rib 6.50 x 16 tire with triple rib 6 ply construction.Fitment is listed for multiple tractor brands and cross references to whs049.Part Number: WH-049DFitsAllis ChalmersAveryCaseCockshuttFordIH /...
    Add to Cart

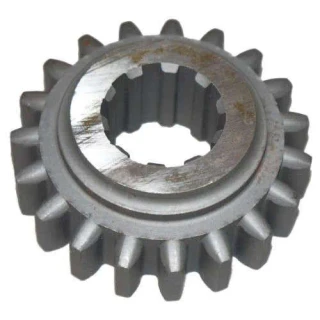

  • Allis-Chalmers Mainshaft Reverse Gear | Allis Chalmers CA D10 D12 D14 D15 70234028

    Allis Chalmers Mainshaft Reverse Gear CA D10 D12 D14 D15 70234028

    Allis-Chalmers
    $160.00
    70234028
    Mainshaft reverse gear for the listed Allis-Chalmers models below.Replacement numbers are 70234028 and 234028.Part Number: 70234028FitsCAD10D12D14D15Replaces / Cross Reference70234028234028
    Add to Cart
  • Allis-Chalmers D10 D12 Wiring Harness Kit for 1-Wire Alternator, automotive wiring harness with various color-coded wires and connectors.

    Allis-Chalmers D10 D12 Wiring Harness Kit for 1-Wire Alternator

    Allis-Chalmers
    $263.00
    DJS1041H
    Wiring harness kit for Allis-Chalmers D10 and D12 tractors with a 1-wire alternator.FitsAllis Chalmers D10Allis Chalmers D12Series ISeries IIUp to SN 9000For tractors with a 1-wire alternator.Part...
    Add to Cart
  • Pertronix Electronic Ignition Conversion Kit 6V Positive Ground for Allis Chalmers, image of electronic ignition components including wiring, a rotor, and other installation parts.

    Electronic Ignition Conversion Kit 6V Positive Ground for Allis Chalmers B, IB, C, CA, D10, D12, D14, D15, D17, G, WC, WD, WD45, WF

    Pertronix
    $237.50
    ACR3188
    Electronic Ignition Conversion Kit for 6V positive ground Allis-Chalmers applications. Replaces points and condenser with a breakerless solid-state ignition system that fits under the stock...
    Add to Cart

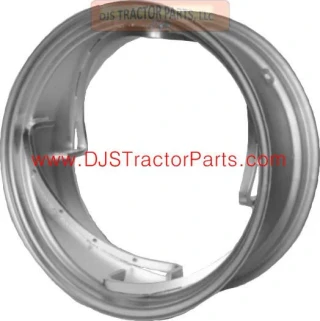

  • Allis-Chalmers REAR SPINOUT RIM (Power Shift) 10 X 24

    Rear Spinout Rim (Power Shift) 10 x 24

    Allis-Chalmers
    $649.00
    AC-027D
    Rear spinout rim (Power Shift) 10 x 24. USA made with 4 rails and stop holes.Part Number: AC-027DFitsAllis Chalmers: CA, D10, D12Cockshutt: E2, 20 with 10 x 24 spinout rimIH / Farmall: Some 240,...
    Add to Cart
  • Allis-Chalmers Slip Fit Coupler for tractors, cylindrical metal part with holes for U-joint attachment.

    Slip Fit Coupler for Tractor Steering Shaft, AB-380D

    Allis-Chalmers
    $109.75
    AB-380D
    Slip fit coupler for tractor steering shafts when a U-joint is needed. Original style part. Use this coupler where the steering shaft requires a universal joint connection.Part number:...
    Add to Cart
  • Allis-Chalmers Tire 6.00 x 16 Triple Rib 4 Ply, black rubber tractor tire with a triple rib tread pattern for Allis-Chalmers equipment.

    Tire 6.00 x 16 Triple Rib 4 Ply for Allis-Chalmers

    Allis-Chalmers
    $119.75
    WH-048D
    Tire only, 6.00 x 16" triple rib 4 ply. Fitment is listed for Allis-Chalmers and several other tractor brands.Part Number: WH-048DFitsAllis ChalmersAveryCaseCockshuttFordIH / FarmallJohn DeereMassey...
    Add to Cart
  • Allis-Chalmers Allis Chalmers D10 D12 LEFT HAND SIDE PANEL

    Allis Chalmers D10 D12 Left Hand Side Panel

    Allis-Chalmers
    $56.50
    ACR4023
    Part Number: ACR4023OverviewLeft hand side panel for Allis Chalmers D10 and D12 up to serial number 9001.Goes under gas tank. USA made.FitsAllis Chalmers D10 (up to sn 9001)Allis Chalmers D12 (up to...
    Add to Cart
  • Allis-Chalmers Complete Wiring Harness Kit | Allis Chalmers D10 D12

    Allis-Chalmers D10 D12 Wiring Harness Kit

    Allis-Chalmers
    $364.00
    ACR6428
    Part Number: ACR6428OverviewThis complete wiring harness kit is for Allis-Chalmers D10 and D12 tractors up to SN 9000. It is a new original style complete kit.FitsAllis-Chalmers D10 up to SN...
    Add to Cart
  • Allis-Chalmers Wiring Harness Kit | Allis Chalmers D10 D12 Series III

    Wiring Harness Kit for Allis Chalmers D10 D12 Series III

    Allis-Chalmers
    $319.00
    DJS1036
    Complete Wiring Harness Kit for select Allis Chalmers tractors.Fits D10 and D12 Series III models with SN 9001 & up.Part Number: DJS1036FitsD10 (SN 9001 & up, Series III)D12 (SN 9001 & up, Series III)
