Description

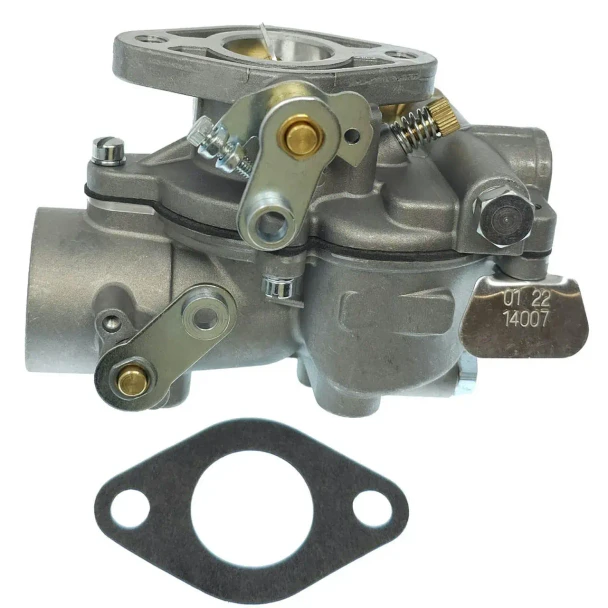

Zenith style carburetor for Allis Chalmers D10 and D12 tractors.
Includes carburetor mounting gasket. Please verify your carburetor manufacturer number before ordering.
Part Number: 70235975
Fits
- Allis Chalmers - D10, D12
- International Farmall - A, A-21, A-I, A1, AV, AV-1, B, BN, C, Super A, Super C, T4, 100, 130, 140, 200, 230
Replaces / Cross Reference
- 70235975
- 3454892R92
- 352047R91
- 352377R92
- 354184R93
- 354185R92
- 354892R91
- 354892R92
- 354892R93
- 355485R91
- 355485R92
- 356901R91
- 356902R92
- 362384R91
- 362385R91
- 366306R91
- 366306R92
- 366306R93
- 366462R94
- 372098R93
- 372983R91
- 372985R92
- 373957R91
- 373959R91
- 373961R91
- 373962R91
- 373978R91
- 375560R91
- 377600R91
- 385507R91
- 385608R91
- 48616D
- 52499DA
- 52499DB
- 52499DC
- 52499DD
- 52499DE
- 69401D
- 69402D
- 69404D
- ZENITH - 10514A, 8808, 8928, 9167, 10386, 10522, 11115, 11188, 11340, 11704, 12115, 12122, 12123, 12225, 12285, 12475, 12522, 12613, 12749, 12911, 14007, 9167A, 9749, 9752
- ZENITH REPLACING MARVEL SCHEBLER: TSX156, TSX171, TSX333, TSX730, TSX744, TSX926
- ZENITH REPLACING MARVEL SCHEBLER - TSX157, TSX198, TSX319, TSX348
- ZENITH REPLACING CARTER: UT, UT2257S, UT26125, UT652, UT734S, UT771SA
Specs
- Carburetor mounting studs measure 2-3/8" center to center
- Throttle body throat size measures 1" diameter
- Choke air horn (air inlet) measures 1-5/8" O.D.
- Fuel inlet is 1/8" NPT
- Carb mounting flange gasket is included
Notes
- Please make sure that your carburetor manufacturer number is in the list that this fits.
- No refunds or replacements will be given if dirt, rust, contamination is inside the carburetor or if the carburetor has been taken apart.
Details
Diameter: |
Throttle body throat size measures 1 in. |
Outside Diameter: |
Choke air horn (air inlet) measures 1-5/8 in. |
