Allis Chalmers 175 Tractor Parts

About the Allis-Chalmers 175

The Allis-Chalmers 175 arrived in 1970 as a larger member of the company's Hundred series. It used a four-cylinder engine, live PTO, hydrostatic power steering, and an eight-speed partial power-shift transmission for field work.

The 175 was available with gasoline or diesel power through 1980. The early Perkins diesel was used through serial number 1458, and the larger 4.248 diesel began at serial number 1459. That change makes the serial number especially useful when checking diesel engine parts.

Serial Number Reference

Serial number locations: The tractor serial number is on the left front side of the torque housing. The gasoline engine serial number is on the left side of the cylinder block behind the carburetor. A diesel engine serial number may be on the front right side of the cylinder block near the alternator or on the front left side above the injection pump.

The table below shows the beginning tractor serial number for each Model 175 year:



1970-1973
Model 175 year Beginning serial number
1970 1,001
1971 1,477
1972 1,624
1973 1,740
1974-1977
Model 175 year Beginning serial number
1974 2,153
1975 3,255
1976 3,754
1977 4,809
1978-1980
Model 175 year Beginning serial number
1978 5,670
1979 6,321
1980 6,999

Total production: 6,494 Model 175 tractors: 5,485 diesel and 1,009 gasoline.

Allis-Chalmers 175 Paint Reference

For restoration planning, the Allis-Chalmers 175 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers 175 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream Cream, Aluminum Persian Orange 2 Persian Orange 2

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • A black rubber seal with white embossed lettering that reads "ALLIS-CHALMERS WICO" and "NATIONAL N-." The seal appears to be a governor control rod tach drive seal for Allis Chalmers farm tractors such as WD, WD45, D17, 170, 175.

    Governor Control Rod Tach Drive Seal for Allis Chalmers WD, WD45, D17, 170, 175

    Allis-Chalmers
    $16.75
    70206072
    Governor Control Rod Tach / Tachometer Drive Seal for Allis Chalmers WD, WD45, D17, 170, and 175.Listed as OEM AGCO Brand.Part Number: 70206072FitsAllis Chalmers WDAllis Chalmers WD45Allis Chalmers...
    Add to Cart
  • A pressure plate designed for Allis-Chalmers D17, 170, or 175 farm tractors, featuring an 11-inch diameter and 30 spline configuration.

    Allis Chalmers D17 170 175 Pressure Plate 11" 30 Spline

    Allis-Chalmers
    $465.50
    70242572
    Pressure plate for Allis Chalmers D17, 170, and 175.Part Number: 70242572FitsAllis Chalmers D17 (SN 75001>)Allis Chalmers 170Allis Chalmers 175Replaces / Cross Reference70242572242572Specs11 inches30...
    Add to Cart
  • A set of three main bearing shells for Allis-Chalmers farm tractors, arranged with one shell open to display the bearing surface, and the other two shells closed. The shells are metallic with a smooth bearing surface.

    Allis Chalmers Main Bearing Set 0.030 Undersized WC WD WD45 WF D17 170 175

    Allis-Chalmers
    $148.50
    MS-209P-030
    Allis Chalmers main bearing set, undersized 0.030", sold as a set.Part Number: MS-209P-030FitsAllis Chalmers - WC, WD, WD45, WF, D17, 170, 175Fits G201 and G226 w/ Front Thrust BearingSpecsMain...
    Add to Cart
  • An image of a black rubber valve cover gasket with four small round sealing washers placed on top of it, designed for Allis-Chalmers farm tractors.

    Allis Chalmers Valve Cover Gasket NBR Rubber

    Allis-Chalmers
    $27.75
    AC-315RD
    NBR / rubber valve cover gasket for select Allis Chalmers gas / LP applications.Part Number: AC-315RDFitsAllis Chalmers WCAllis Chalmers WDAllis Chalmers WFAllis Chalmers WD45Allis Chalmers D17Allis...
    Add to Cart
  • A close-up image of a metallic bumper part designed for Allis Chalmers farm tractors, specifically models 170, 175, 180, 185, 190, and 190XT. The part is cylindrical with a central hole and a flange at the base, showing signs of wear and dirt.

    Sheet Metal Bumper for Allis Chalmers 170 175 180 185 190 190XT

    AGCO
    $2.75
    70249403
    Sheet metal bumper for behind the grill / nose cone on select Allis Chalmers tractors.Part Number: 70249403FitsAllis Chalmers 170Allis Chalmers 175Allis Chalmers 180Allis Chalmers 185Allis Chalmers...
    Add to Cart
  • A black, oval-shaped fan belt with small teeth on the inner side, designed for Allis-Chalmers 170/175 Gas farm tractors, product number 70248316.

    Allis-Chalmers 170/175 Gas Fan Belt 70248316

    Allis-Chalmers
    $15.25
    70248316
    Allis-Chalmers Fan BeltPart Number: 70248316This fan belt is listed for select Allis-Chalmers gas tractors and provides a direct replacement option for the models shown below.FitsAllis-Chalmers 170...
    Add to Cart
  • A metal upper brake pin for Allis-Chalmers D17 Series IV, 170, 175, 180, 185 farm tractors.

    Allis-Chalmers D17 Series IV, 170, 175, 180, 185 Upper Brake Pin

    Allis-Chalmers
    $18.75
    70237217
    Upper Brake Pin for Allis-Chalmers tractors.New part identified as 70237217.Part Number: 70237217FitsAllis-Chalmers D17 Series IVAllis-Chalmers 170Allis-Chalmers 175Allis-Chalmers 180Allis-Chalmers...
    Add to Cart
  • Metal lower brake pin for Allis-Chalmers farm tractors, compatible with models D17, 170, 175, 180, 185.

    Allis Chalmers Lower Brake Pin for D17, 170, 175, 180, 185

    Allis-Chalmers
    $19.75
    70237216
    Lower Brake Pin for Allis Chalmers tractors.Fits D17 Series IV, 170, 175, 180, and 185 models.Part Number: 70237216FitsD17 Series IV170175180185NotesNo longer available from AGCO.
    Add to Cart
  • A white amp gauge with black markings, showing a range from 0 to 60 Amperes, used for Allis-Chalmers farm tractors. The gauge has the text "ALLIS-CHALMERS" at the bottom center and "AMPERES" at the top, with a needle pointing to just below 60.

    Allis Chalmers Amp Gauge 60-0-60 70254407

    Allis-Chalmers
    $44.50
    DJS70254407
    Aftermarket 60-0-60 gauge made just like the original ones that came on the tractor when new. Made to give it that original look.Part Number: DJS70254407FitsAllis Chalmers D10Allis Chalmers D12Allis...
    Add to Cart

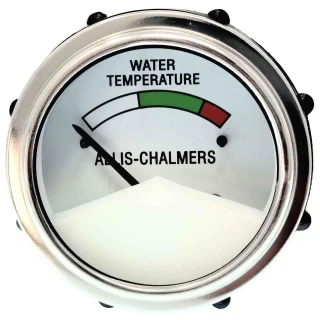

  • A water temperature gauge for Allis-Chalmers farm tractors. The gauge displays the water temperature with a needle pointing to a position on a dial. The dial has a color-coded section indicating safe (white and green) and warning (red) temperature ranges. The face of the gauge is marked with 'WATER TEMPERATURE' and 'ALLIS-CHALMERS' in the center.

    Allis Chalmers Water Temperature Gauge

    Allis-Chalmers
    $51.50
    DJS70240989
    Aftermarket water temperature gauge made just like the original ones that came on the tractor when new. Made to give it that original look. Part Number: DJS70240989 Fits Allis Chalmers 175...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Fuel Gauge D21 170 175 180 185 190 190XT 70240988 240988

    Allis Chalmers Fuel Gauge

    Allis-Chalmers
    $51.50
    DJS70240988
    Aftermarket fuel gauge made just like the original ones that came on the tractor when new. Made to give it that original look. Part Number: DJS70240988 Fits Allis Chalmers D21 Allis Chalmers...
    Add to Cart
  • A complete seat assembly designed for Allis-Chalmers farm tractors, featuring black and white colored upholstery with a cushioned seat and backrest.

    Allis Chalmers Complete Seat Assembly

    Allis-Chalmers
    $365.00
    DJS221
    Complete seat assembly for select Allis Chalmers tractors. Includes a metal seat pan and seat cushions with wood backing.This seat assembly is a great seat option at a fraction of the cost.Part...
    Add to Cart
  • A close-up photograph of an Allis-Chalmers 11-inch clutch disc designed for farm tractors, featuring a central hub with gear-like splines and four attached friction pads at the corners for added grip.

    11-Inch Clutch Disc for Allis Chalmers D17 IV D19 170 175

    Allis-Chalmers
    $224.00
    70247859
    Part Number: 7024785911" 4 Button Spring Loaded Clutch DiscThis clutch disc is listed for specific Allis Chalmers models. Verify fitment and spline details before ordering.FitsD17 Series IV (SN 75001...
    Add to Cart
  • Allis-Chalmers Diesel Water Pump Without Pulley, model 79003714, along with four blue gaskets included in the set.

    Allis-Chalmers 170 175 Diesel Water Pump Without Pulley 79003714

    Allis-Chalmers
    $59.75
    79003714W/O
    Part Number: 79003714W/OAllis-Chalmers Water PumpThis water pump is supplied without a pulley and includes gaskets. It is listed for Allis-Chalmers 170 and 175 diesel models.FitsAllis-Chalmers 170...
    Add to Cart
  • A metallic steering spindle key for Allis-Chalmers farm tractors, used to secure parts of the front axle steering system, with the product number 70923996.

    Allis-Chalmers Front Axle Steering Spindle Key 70923996

    AGCO
    $19.25
    70923996
    Front axle steering spindle key for select Allis-Chalmers tractors. Preserves the listed dimensions and replacement number for easy matching.Part Number: 70923996FitsAllis-Chalmers D10, D12, D14,...
    Add to Cart
  • A metal oil pressure switch or sensor with a threaded end, a black plastic section, and a metal terminal for electrical connection, labeled with the number 70240150, used for Allis-Chalmers farm tractors.

    Allis-Chalmers Oil Pressure Switch / Sensor 70240150

    Allis-Chalmers
    $24.95
    70240150
    Part Number: 70240150Allis-Chalmers Oil Pressure Switch / SensorOil pressure switch / sensor for the listed Allis-Chalmers tractor applications.FitsAllis-Chalmers D17 IVAllis-Chalmers...
    Add to Cart
  • A silver, threaded hub cap designed for Allis-Chalmers farm tractors, part number 70220403.

    Allis-Chalmers Threaded Hub Cap 70220403

    Allis-Chalmers
    $18.75
    70220403
    Threaded hub cap for Allis-Chalmers tractors.Part Number: 70220403FitsD15D17D19170175180185190190XT20060706080Replaces / Cross Reference70220403NotesThreaded hub cap
    Add to Cart
  • A cylindrical grey bushing with a hollow center, designed for Allis-Chalmers farm tractors. The product is identified as Upper Seat Spacer Pivot Bushing with the part number 70227915.

    Allis-Chalmers Upper Seat Spacer Pivot Bushing 70227915

    Allis-Chalmers
    $13.75
    70227915
    Upper seat spacer, pivot for shock absorber for Allis-Chalmers tractors.Sold individually; 2 per tractor.Part Number: 70227915FitsD10D12D14D15D17D19D21170175180185190190XT200210220Replaces / Cross
    Add to Cart
