Allis Chalmers 175 Tractor Parts

About the Allis-Chalmers 175

The Allis-Chalmers 175 arrived in 1970 as a larger member of the company's Hundred series. It used a four-cylinder engine, live PTO, hydrostatic power steering, and an eight-speed partial power-shift transmission for field work.

The 175 was available with gasoline or diesel power through 1980. The early Perkins diesel was used through serial number 1458, and the larger 4.248 diesel began at serial number 1459. That change makes the serial number especially useful when checking diesel engine parts.

Serial Number Reference

Serial number locations: The tractor serial number is on the left front side of the torque housing. The gasoline engine serial number is on the left side of the cylinder block behind the carburetor. A diesel engine serial number may be on the front right side of the cylinder block near the alternator or on the front left side above the injection pump.

The table below shows the beginning tractor serial number for each Model 175 year:



1970-1973
Model 175 year Beginning serial number
1970 1,001
1971 1,477
1972 1,624
1973 1,740
1974-1977
Model 175 year Beginning serial number
1974 2,153
1975 3,255
1976 3,754
1977 4,809
1978-1980
Model 175 year Beginning serial number
1978 5,670
1979 6,321
1980 6,999

Total production: 6,494 Model 175 tractors: 5,485 diesel and 1,009 gasoline.

Allis-Chalmers 175 Paint Reference

For restoration planning, the Allis-Chalmers 175 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers 175 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream Cream, Aluminum Persian Orange 2 Persian Orange 2

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Deluxe Steering Wheel Spinner, a tractor accessory designed to be attached to farm tractors, not automobiles. It features a textured, ergonomic knob with a mounting base.

    Deluxe Steering Wheel Spinner

    Allis-Chalmers
    $17.75
    WSDX1
    Deluxe Steering Wheel Spinner for various tractor models.Part Number: WSDX1FitsAllis Chalmers - VariousAvery - VariousCase - VariousCockshutt - VariousFord - VariousIH / Farmall - VariousJohn Deere -...
    Add to Cart
  • A round, flat washer made of metal, used for Allis-Chalmers farm tractors.

    Washer, Needle & Seat Main Adjustment for Allis-Chalmers

    Allis-Chalmers
    $7.25
    70226466
    Washer for Needle & Seat Main Adjustment for select Allis-Chalmers equipment.Includes 1 washer.Part Number: 70226466FitsAllis Chalmers - WD, WD45, D15, D17, 170, 175AC Combine - EReplaces / Cross...
    Add to Cart
  • A metal link rod with hooks at both ends, designed for use with Allis-Chalmers farm tractors, specifically as a carburetor to governor link rod.

    Allis Chalmers Carburetor to Governor Link Rod

    Allis-Chalmers
    $27.25
    70237203
    Carburetor to Governor Link Rod for the listed Allis Chalmers Tractors, AC Power Units, and Gleaner models. Part Number: 70237203 Fits Allis Chalmers - WC, WF, WD, WD45, D17 (GAS, LP), (170, 175...
    Add to Cart
  • A set of replacement seals for the Allis-Chalmers external hydraulic lift arm cylinder, including various sizes of rubber and metal rings, arranged on a white background.

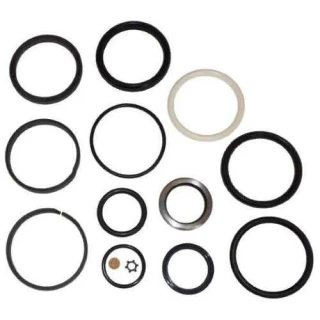

    Allis-Chalmers External Hydraulic Lift Arm Cylinder Seal Kit

    Allis-Chalmers
    $45.75
    AC-3761D
    Seal kit for Allis-Chalmers external hydraulic lift arm cylinders. Use the fitment and cylinder measurements below to verify your application before ordering.Part Number: AC-3761DFitsAllis Chalmers -...
    Add to Cart
  • A brass fuel line compression fitting designed for Allis-Chalmers farm tractors. It connects a 5/16 inch fuel line to a 1/8 inch pipe, suitable for various model tractors.

    Fuel Line Compression Fitting 5/16" Line to 1/8" Pipe - Various Models

    Allis-Chalmers
    $3.75
    516FITTING
    Fuel line compression fitting for various Allis-Chalmers models. Connects 5/16" line to 1/8" pipe and is used on sediment bowls in most applications.Part Number: 516FITTINGFitsAllis Chalmers -...
    Add to Cart
  • Air filter for Allis-Chalmers farm tractors, designed for models 160, 170, 175, 180, 185, 190, 5050, 6040. The filter is cylindrical with a mesh exterior and a white base, used for engine air intake filtration.

    Allis Chalmers Air Filter for 160 170 175 180 185 190 5050 6040

    Allis-Chalmers
    $36.00
    70243163
    Allis Chalmers - 160, 170, 175, 180, 185, 190, 5050, 6040Part Number: 70243163Replaces / Cross ReferenceAF437K70243163243163Ordering NotesCheck filter number, tractor model and engine application...
    Add to Cart
  • A muffler designed for use with Allis-Chalmers farm tractors, specifically for models 170 Gas and 175 Gas.

    Muffler for Allis Chalmers 170 Gas 175 Gas

    Allis-Chalmers
    $115.25
    ACR1566
    Muffler for Allis Chalmers 170 Gas and 175 Gas.Review the listed dimensions to confirm your application before ordering.Part Number: ACR1566FitsAllis Chalmers 170 GasAllis Chalmers 175 GasReplaces /...
    Add to Cart
  • A metal brake band return spring with hooks on both ends, used in Allis-Chalmers farm tractors such as D17, 170, 175, 180, and 185.

    Allis Chalmers D17, 170, 175, 180, 185 Brake Band Return Spring

    Allis-Chalmers
    $7.75
    70250447
    Allis Chalmers D17, 170, 175, 180, 185Brake Band Return SpringPart Number: 70250447FitsD17170175180185Replaces / Cross Reference70250447250447Notes4 used per tractorOrdering NotesCheck
    Add to Cart
  • A coiled metal brake disc return spring with a hook at one end, designed for Allis-Chalmers farm tractors.

    Allis-Chalmers Brake Disc Return Spring

    Allis-Chalmers
    $7.75
    70250435
    Brake disc return spring for select Allis-Chalmers tractors, AC Gleaner combines, and AC miscellaneous equipment.Part Number: 70250435FitsAllis Chalmers - D17, D19, D21, 170, 175, 180, 185, 190,...
    Add to Cart
  • A vinyl decal featuring the Allis-Chalmers logo, intended for front grills of Allis-Chalmers farm tractors, not for automobiles.

    Allis Chalmers Front Grill Vinyl Decal 70924243

    Allis-Chalmers
    $8.75
    DJS1043A
    Allis Chalmers front grill vinyl decal for the listed tractor models.Measures 3-1/4" x 3-1/4" and is used on the front grill.Part Number: DJS1043AFitsAllis Chalmers D21Allis Chalmers 160Allis...
    Add to Cart
  • Allis-Chalmers FLYWHEEL RING GEAR - ALLIS CHALMERS D17, 170, 175 - 70226830

    Allis Chalmers Flywheel Ring Gear D17 170 175

    Allis-Chalmers
    $56.50
    70226830
    Part Number: 70226830Product OverviewFlywheel ring gear for the Allis Chalmers models listed below.FitsAllis Chalmers D17 (All Gas Models)Allis Chalmers 170 (All Gas Models)Allis Chalmers 175 (All...
    Add to Cart
  • Allis-Chalmers Inner Axle Pinion Shaft Seal - Allis Chalmers D17, 170, 175 - 70232173

    Allis-Chalmers D17 170 175 Inner Axle Pinion Shaft Seal 70232173

    Allis-Chalmers
    $31.25
    70232173
    Part Number: 70232173Inner Axle Pinion Shaft SealInner axle pinion shaft seal for listed Allis-Chalmers models.FitsAllis-Chalmers D17Allis-Chalmers 170Allis-Chalmers 175Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Allis Chalmers AC 175 Diesel Decal Set

    Allis Chalmers AC 175 Diesel Decal Set

    Allis-Chalmers
    $134.00
    DJS159A
    Part Number: DJS159AAllis Chalmers AC 175 Diesel Decal SetAC 175 Diesel decal set in cream on black vinyl. Handle and store with care for results.NotesNo refunds on vinyl cut decals.Store in a cool,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers AC 175 Decal Set

    Allis-Chalmers AC 175 Decal Set

    Allis-Chalmers
    $129.00
    DJS159
    Part Number: DJS159Allis-Chalmers AC 175 Decal SetAC 175 decal set in cream on black vinyl.FitsAllis-Chalmers AC 175NotesCream on blackVinylNo refunds on vinyl cut decalsStore in a cool, dry placeDo...
    Add to Cart
  • Allis-Chalmers Tachometer Cable - Allis Chalmers D21, 170, 175, 190, 190XT, 210, 220

    Tachometer Cable for Allis Chalmers D21, 170, 175, 190, 190XT, 210, 220

    Allis-Chalmers
    $49.75
    AC-2711D
    Tachometer cable for select Allis Chalmers tractors with alternator driven tachometer. Use with AC-303D tachometer.Part Number: AC-2711DFitsAllis Chalmers - D21, 170, 175, 190, 190XT, 210, 220 (with...
    Add to Cart
  • Allis-Chalmers Allis Chalmers 170, 175 New DIESEL Water Pump WITH PULLEY - 79003714

    Allis-Chalmers 170 175 Diesel Water Pump with Pulley - 79003714

    Allis-Chalmers
    $59.95
    79003714
    Water pump with pulley for select Allis-Chalmers diesel tractors. Gasket included.Part Number: 79003714FitsAllis-Chalmers 170 DieselAllis-Chalmers 175 DieselReplaces / Cross...
    Add to Cart
  • Allis-Chalmers Axle Seal Out Board of Bull Gear - Allis Chalmers D17, 170, 175, 180, 185 - 70271736

    Allis-Chalmers Axle Seal Out Board of Bull Gear - 70271736

    Allis-Chalmers
    $43.75
    70271736
    Axle seal out board of bull gear for select Allis-Chalmers tractors.Part Number: 70271736FitsAllis-Chalmers D17Allis-Chalmers 170Allis-Chalmers 175Allis-Chalmers 180Allis-Chalmers 185Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Front Crankshaft Seal - Allis Chalmers D17, 170, 175 - 70229229

    Front Crankshaft Seal for Allis-Chalmers D17 170 175

    Allis-Chalmers
    $11.25
    70229229
    Part Number: 70229229Front Crankshaft SealFront crankshaft seal for the listed Allis-Chalmers tractors.FitsAllis-Chalmers D17Allis-Chalmers 170Allis-Chalmers 175Replaces / Cross...
    Add to Cart
