Allis Chalmers 175 Tractor Parts

About the Allis-Chalmers 175

The Allis-Chalmers 175 arrived in 1970 as a larger member of the company's Hundred series. It used a four-cylinder engine, live PTO, hydrostatic power steering, and an eight-speed partial power-shift transmission for field work.

The 175 was available with gasoline or diesel power through 1980. The early Perkins diesel was used through serial number 1458, and the larger 4.248 diesel began at serial number 1459. That change makes the serial number especially useful when checking diesel engine parts.

Serial Number Reference

Serial number locations: The tractor serial number is on the left front side of the torque housing. The gasoline engine serial number is on the left side of the cylinder block behind the carburetor. A diesel engine serial number may be on the front right side of the cylinder block near the alternator or on the front left side above the injection pump.

The table below shows the beginning tractor serial number for each Model 175 year:



1970-1973
Model 175 year Beginning serial number
1970 1,001
1971 1,477
1972 1,624
1973 1,740
1974-1977
Model 175 year Beginning serial number
1974 2,153
1975 3,255
1976 3,754
1977 4,809
1978-1980
Model 175 year Beginning serial number
1978 5,670
1979 6,321
1980 6,999

Total production: 6,494 Model 175 tractors: 5,485 diesel and 1,009 gasoline.

Allis-Chalmers 175 Paint Reference

For restoration planning, the Allis-Chalmers 175 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers 175 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream Cream, Aluminum Persian Orange 2 Persian Orange 2

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • A metal hardware kit consisting of two large flat levers with circular holes at each end, a cylindrical metal pin with a hole, and a small curved metal clip, designed for use with Allis-Chalmers farm tractors and Case equipment.

    Brake Band Hardware Kit for Allis-Chalmers and Case

    Allis-Chalmers
    $9.75
    70235614
    Brake Band Hardware Kit for Allis-Chalmers and Case tractors.2 kits used per side. Order 4 kits if servicing both sides.Part Number: 70235614FitsAllis Chalmers - D17 (SN 42001 & up), D19, D21, 170,...
    Add to Cart

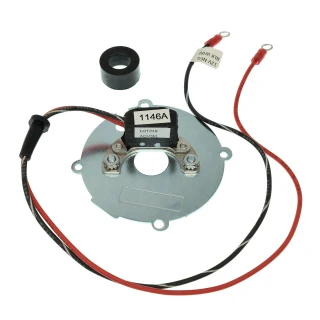

  • Pertronix Electronic Ignition Conversion Kit 12V for Allis Chalmers farm tractors, including D14, D17, 170, and 175 models. The image shows a circular metal plate with attached wiring and electronic components, designed for tractor ignition system upgrade.

    Electronic Ignition Conversion Kit 12V - Allis Chalmers D14, D17, 170, 175

    Pertronix
    $183.00
    ACR3894
    Part Number: ACR3894 Electronic Ignition Conversion Kit Ignitor Delco fits 4 cylinder applications with 12 volt negative ground. This electronic ignition conversion kit replaces points and condenser...
    Add to Cart
  • An aftermarket inline fuel filter with two black rubber hoses, two metal clamps, and a metal housing, designed for Allis-Chalmers farm tractors.

    Inline Fuel Filter 33033

    Allis-Chalmers
    $8.75
    33033
    Part Number: 33033Inline Fuel FilterIn-line fuel filter for use with 3/8" fuel lines. Includes hose and clamps and is Used to help keep rust and dirt out of the carburetor.FitsAllis Chalmers -...
    Add to Cart
  • A metallic fuel pump for Allis-Chalmers farm tractors, with a gasket beside it, used for models 170 and 175. The pump has a cylindrical top with a small screw on top and connects to a mounting bracket with a lever mechanism.

    Allis Chalmers Fuel Pump 170 175

    Allis-Chalmers
    $46.00
    70257232
    Fuel pump for Allis Chalmers 170 and 175.Fits 170 Diesel and 175 Diesel with Perkins Engine.Part Number: 70257232FitsAllis Chalmers 170Allis Chalmers 175170 Diesel with Perkins Engine175 Diesel with...
    Add to Cart
  • A close-up image of an orange brake friction plate designed for Allis-Chalmers farm tractors, specifically models D17, 170, 175, 180, and 185. The plate has a circular shape with a central hole and smaller holes around the perimeter for mounting.

    Brake Friction Plate 70237215 for Allis Chalmers D17 170 175 180 185

    Allis-Chalmers
    $118.50
    70237215
    Brake Friction PlateFor Allis Chalmers D17, 170, 175, 180, and 185 models.Part Number: 70237215FitsAllis Chalmers D17Allis Chalmers 170Allis Chalmers 175Allis Chalmers 180Allis Chalmers 185Replaces /...
    Add to Cart
  • A sediment bowl filter for Allis-Chalmers farm tractors, featuring a tall bowl assembly with a filter element inside. The filter has a metal body, a glass bowl for sediment collection, and a brass shut-off valve at the side. The image notes that the product is for illustrative purposes and the sediment bowl assembly is not included.

    Sediment Bowl Filter for Tall Bowl Assemblies

    Aftermarket
    $12.25
    DJS3039
    Fuel filter only. Sediment bowl not included. This fits our sediment bowl assembly ACR2406 and also fits replacement glass bowl
    Add to Cart
  • A connecting rod bearing with a 0.030 undersize, designed for Allis-Chalmers farm tractors. The bearing is circular with a split for installation.

    Allis-Chalmers Connecting Rod Bearing 0.030 Undersize

    Allis-Chalmers
    $14.75
    AC-4006D
    Allis Chalmers - D17, WD, WD45, 170, 175, WC, WF0.030" undersize connecting rod bearing sold per journal.Part Number: AC-4006DFitsD17, WD, WD45, 170, 175 (Gas, LP with G201, G226 engines.)WC, WF...
    Add to Cart
  • A set of four main bearing shells, used for Allis-Chalmers farm tractors, specifically designed for models D17, 170, and 175.

    Standard Main Bearing Set 3" for Allis-Chalmers D17 170 175

    Allis-Chalmers
    $109.75
    AC-2780D
    Standard main bearing set 3" for Allis-Chalmers D17, 170, and 175. New part sold under store SKU AC-2780D. Part Number: AC-2780D Fits Allis Chalmers - D17, 170, 175 All gas, LP with crankshaft #...
    Add to Cart
  • A close-up image of a gold-colored metal stop and bolt designed for Allis-Chalmers farm tractors. The stop has a rectangular, hollowed-out section, and the bolt has a threaded shaft with a hexagonal head.

    Rear Spinout Rim Stop & Bolt for Allis-Chalmers and More

    Allis-Chalmers
    $24.00
    70219456
    Rear spinout rim stop & hex bolt included for parallel drilled rim rails.New part sold under store SKU 70219456.Part Number: 70219456FitsAllis Chalmers - CA, D10, D12, D14, D15, D17, D19, WD, WD45,...
    Add to Cart
  • A large, circular, spring-loaded clutch disc with a metal center and a dark, textured friction surface. The surface is segmented and has multiple small yellow markings along the edge, indicating part details.

    11" Spring Loaded Clutch Disc for Allis-Chalmers D17, D19, 170, 175

    Allis-Chalmers
    $146.00
    70241255
    11" spring loaded clutch disc for Allis-Chalmers D17, D19, 170, and 175.Part Number: 70241255FitsAllis-Chalmers D17Allis-Chalmers D19Allis-Chalmers 170Allis-Chalmers 175Replaces / Cross...
    Add to Cart
  • A cylindrical metal threaded manifold exhaust pipe for Allis-Chalmers D17, D19, 170, and 175 farm tractors, with visible rust and wear.

    Threaded Manifold Exhaust Pipe for Allis-Chalmers D17, D19, 170, 175

    Allis-Chalmers
    $12.50
    ACR0056P
    Threaded manifold exhaust pipe for Allis-Chalmers D17, D19, 170, and 175.Part Number: ACR0056PFitsAllis-Chalmers D17 (Series III/IV - Gas/LP SN: 32001 & up)Allis-Chalmers D19 GasAllis-Chalmers...
    Add to Cart
  • A metallic, round aftermarket mini Denso alternator pulley with a central hole, designed for use on Allis-Chalmers farm tractors, not for automobiles.

    Mini Denso Alternator Pulley AB-2315D

    Aftermarket
    $39.75
    AB-2315D
    Alternator Pulley Part Number: AB-2315D This alternator pulley is listed for the AB-535D Mini Alternator and select Denso alternators shown below. Review the dimensions before ordering. Fits AB-535D...
    Add to Cart
  • A black hydraulic hose with the number 254733 printed on it, designed for Allis-Chalmers farm tractors, not for automobiles.

    Allis-Chalmers Hydraulic Hose for 170 175 210 220

    Allis-Chalmers
    $15.00
    70254733
    Part Number: 70254733Allis-Chalmers Hydraulic HoseHydraulic hose for Allis-Chalmers 170, 175, 210, and 220.Fits170 (SN# 7500 and up) - connects inlet tube to sump cover175 (SN# 2035 and up) -...
    Add to Cart
  • A circular black metal thrust washer for Allis-Chalmers farm tractors, specifically a spindle thrust washer.

    Spindle Thrust Washer for Allis Chalmers Tractors

    Allis-Chalmers
    $7.50
    70218762
    Spindle thrust washer for select Allis Chalmers tractors.Part Number: 70218762FitsWDWD45WD45 DieselD10D12D14D15D19175180185190200D17 (early models with 5 bolt hub)170 (late models)6060 (with 96"...
    Add to Cart

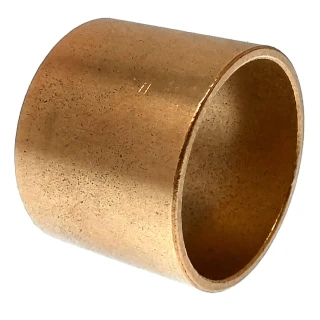

  • A close-up image of a cylindrical metallic bushing, likely made of bronze or brass, used for Allis-Chalmers farm tractors. The surface shows a smooth, shiny finish.

    Allis-Chalmers Clutch Pedal Bushing D14 D15 D17 D19 D21 175 180 185

    Allis-Chalmers
    $13.00
    70235082
    Clutch pedal bushing for Allis-Chalmers tractors listed below.Part Number: 70235082FitsAllis-Chalmers D17Allis-Chalmers D19Allis-Chalmers 175Allis-Chalmers 180Allis-Chalmers 185Allis-Chalmers D14 (SN...
    Add to Cart
  • A set of five black spark plug wires with gold connectors designed for Allis-Chalmers farm tractors with electronic ignition, along with a single rubber boot insulator.

    Allis-Chalmers Spark Plug Wire Set for Electronic Ignition

    Allis-Chalmers
    $24.75
    AC-4304D
    Spark plug wire set for Allis-Chalmers models with electronic ignition.Part Number: AC-4304DFitsAllis-Chalmers BAllis-Chalmers IBAllis-Chalmers CAllis-Chalmers CAAllis-Chalmers RCAllis-Chalmers...
    Add to Cart
  • Image of a gasket for Allis-Chalmers 170 and 175 diesel tractors, specifically for the exhaust manifold elbow. The gasket is triangular with a large circular opening in the center and three smaller holes at each corner.

    Allis-Chalmers 170 175 Diesel Exhaust Manifold Elbow Gasket

    Allis-Chalmers
    $14.50
    70251239
    Part Number: 70251239Allis-Chalmers Exhaust Manifold Elbow GasketGasket for Allis-Chalmers 170 and 175 Diesel tractors.Fits170175 DieselReplaces / Cross Reference4223085M170251239251239NotesOEM AGCO...
    Add to Cart
  • A gray gasket with a rectangular shape and rounded edges, featuring multiple circular bolt holes along its perimeter, designed for Allis-Chalmers farm tractors.

    Lift Arm Housing Gasket for Allis Chalmers D17, D19, 170, 175, 180, 185, 190, 200, Early 7000 Red Belly

    Allis-Chalmers
    $39.00
    70237584
    Lift Arm Housing Gasket for Allis Chalmers D17, D19, 170, 175, 180, 185, 190, 200, and Early 7000 Red Belly.Part Number: 70237584FitsAllis Chalmers D17Allis Chalmers D19Allis Chalmers 170Allis...
    Add to Cart
