Allis Chalmers D17 Tractor Parts

About the Allis-Chalmers D17

Introduced in 1957, the D17 moved the D Series into the larger row-crop tractor class. It used the Power Director transmission and live PTO, so the operator could shift between ranges with a hand lever while keeping PTO-driven equipment running.

The D17 was built through 1967 in Series I, Series II, Series III, and Series IV versions. Gasoline, LP-gas, and diesel engines were offered during the production run, and the serial number table shows where each series begins.

Serial Number Reference

Serial number locations: The tractor serial number is stamped on the left-front end of the torque housing. The gasoline engine serial number is on the rear left-hand side of the engine block behind the carburetor; diesel engine numbers are on the top left-hand side of the engine block.

The table below shows the beginning tractor serial number for each Model D17 year and series:



1957-1960
Model D17 year Beginning serial number
1957 - Series I 1,001
1958 - Series I 4,300
1959 - Series I 16,500
1960 - Series I 28,200
1960 - Series II 32,001
1961-1964
Model D17 year Beginning serial number
1961 - Series II 33,100
1962 - Series II 38,070
1962 - Series III 42,001
1963 - Series III 65,001
1964 - Series III 70,611
1964-1967
Model D17 year Beginning serial number
1964 - Series IV 75,001
1965 - Series IV 77,090
1966 - Series IV 80,533
1967 - Series IV 86,061

Total production: 84,914 Model D17 tractors (51,598 gas and 12,284 diesel; LP-gas production is unknown).

Filter By

Sort By:

Display Type:
Filters
  • Needle & Seat Assembly Main Jet for Allis Chalmers WD45 D17, used part displayed on a surface with a label showing part number 692.

    Needle & Seat Assembly Main Jet for Allis Chalmers WD45 D17 (Display)

    $25.75
    692
    Needle & seat assembly main jet for select Allis-Chalmers tractors. Part Number: AC43-671 Fits WD45 D17 (All Series) Marvel Schebler carburetors: TSX561, TSX464, TSX773, TSX871 Replaces / Cross...
    Add to Cart

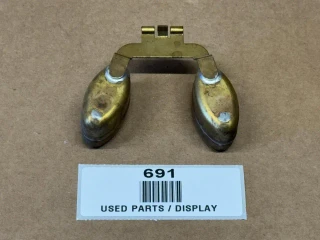

  • Zenith Carb Float for Allis-Chalmers WD45, D15, D17, display of used carburetor float with metallic components and mounting clip, on brown background with part label.

    Zenith Carb Float for Allis-Chalmers WD45, D15, D17 (Display)

    $19.75
    691
    Zenith carb float for the listed applications. Verify the carburetor manufacturer number before ordering, since fitment depends on the carb MFG number. Part Number: AB-452D Fits Allis-Chalmers: WD45,...
    Add to Cart
  • Zenith Carburetor Float, used display set of two brass floats for carburetors on a brown background with a label indicating used parts.

    Zenith Carburetor Float (Display)

    $27.75
    690
    Zenith Carburetor Float AB-454D. Check the carburetor number carefully before ordering. Fits the listed tractor applications and Zenith carburetor numbers below. Part Number: AB-454D Fits Allis...
    Add to Cart
  • Marvel Schebler Carburetor Float (Display), metallic float component for carburetor with brass and steel parts.

    Marvel Schebler Carburetor Float (Display)

    $17.50
    687
    New Marvel Schebler carburetor float for large bowl Marvel Schebler carburetors. Confirm the carburetor manufacturer number before ordering. Part Number: AB-037D Fits Allis-Chalmers: WD45, D15, D17,...
    Add to Cart

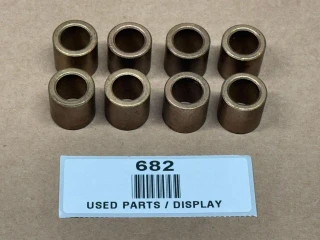

  • Allis Chalmers Bronze Seat Bushings Set 70227910 227910, display of ten used bronze bushings for heavy machinery.

    Allis Chalmers Bronze Seat Bushings Set 70227910 227910 (Display)

    $24.50
    682
    Set of 8 bronze seat bushings for Allis Chalmers tractors. Sold under part number 70227910. Part Number: 70227910 Fits Allis Chalmers D10 Allis Chalmers D12 Allis Chalmers D14 Allis Chalmers...
    Add to Cart
  • Allis-Chalmers Upper Seat Spacer Pivot Bushing 70227915, display image of a blue cylindrical metal bushing with some rust and wear.

    Allis-Chalmers Upper Seat Spacer Pivot Bushing 70227915 (Display)

    $11.00
    681
    Upper seat spacer, pivot for shock absorber for Allis-Chalmers tractors. Sold individually; 2 per tractor. Part Number:...
    Add to Cart
  • Delco Distributor Terminal Insulator Assembly Square Style - AB-500D, used part displayed with a black insulator and metal terminal components on a brown surface.

    Delco Distributor Terminal Insulator Assembly Square Style - AB-500D (Display)

    $12.00
    674
    Delco Distributor Terminal Insulator Assembly, Square Style Important: AB-500D is a square-style Delco distributor terminal insulator assembly. It is for Delco distributors only and will not fit IH...
    Add to Cart
  • Delco Distributor Cap Spring Clip AB-488SD, display of a metal spring clip and its mounting plate on a brown surface with a label.

    Delco Distributor Cap Spring Clip AB-488SD (Display)

    $12.00
    673
    Distributor Cap Spring Clip AB-488SD AB-488SD is a Delco distributor cap spring clip with the shorter bracket. It includes 1 spring clip, 1 bracket, 1 screw, and 2 washers. The bracket measures .700"...
    Add to Cart
  • Delco Distributor Cap Spring Clip With Longer Bracket, metal splitter clip with extended bracket for distributor cap

    Delco Distributor Cap Spring Clip With Longer Bracket (Display)

    $12.00
    672
    Product Overview Distributor cap spring clip with a 1" long bracket, one screw, and two washers. Longer bracket than the bracket in ABC488S. Fits Allis Chalmers: B, IB, C, CA, G, RC, WC, WF, WD,...
    Add to Cart
  • Allis Chalmers Bullet Tail Light Lens Plastic D14 D15 D17, red tail light lens on display with part number 668 and label indicating used parts or display.

    Allis Chalmers Bullet Tail Light Lens Plastic D14 D15 D17 (Display)

    $17.50
    668
    Bullet tail light lens plastic for listed Allis Chalmers, AC Lawn and Garden, and John Deere applications. USA made. Part Number: AC-220D Fits Allis Chalmers - D14 (sn 19001 and up), D15, D17 - AC...
    Add to Cart
  • Allis-Chalmers Snap Coupler Bell Hook Spring 70226514, used part displayed on a brown surface with a label below indicating it's for display.

    Allis-Chalmers Snap Coupler Bell Hook Spring 70226514 (Display)

    $15.00
    667
    Allis-Chalmers snap coupler bell hook spring for the listed tractors with quick hitch system. Use the fitment information below to confirm application. Part Number: 70226514 Fits Allis-Chalmers...
    Add to Cart
  • Allis-Chalmers Cap Screw Bolt & Block 70202132, display image of a used bolt, a rectangular metal block with a hole, and a label indicating part number 665.

    Allis-Chalmers Cap Screw Bolt & Block 70202132 (Display)

    $11.00
    665
    Cap screw, bolt, and block for fuel tank and radiator straps. Sold individually and supplied as 1 screw and 1 mounting block. Part Number: 70202132 Fits Allis Chalmers - B (prior to SN B-58401), IB,...
    Add to Cart

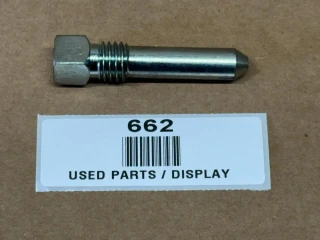

  • Rim Stop Bolt for Allis Chalmers, Case, Ford, JD, Massey Ferguson, display showing a metallic bolt with a hexagonal head, screw threads, and a tapered end.

    Rim Stop Bolt for Allis Chalmers, Case, Ford, JD, Massey Ferguson (Display)

    $7.00
    662
    Rim stop bolt for listed tractor models from Allis Chalmers, Case, Cockshutt, Ford, IH/Farmall, JD, Massey Ferguson, Massey Harris, MM, Oliver, White, and Landini. Use with parallel or 90 degree...
    Add to Cart
  • Hood Latch Snap Latch for Allis Chalmers D10 D12 D14 D15 D17 D19 D21, metallic hood latch snap fitting on brown background

    Hood Latch Snap Latch for Allis Chalmers D10 D12 D14 D15 D17 D19 D21 (Display)

    $9.50
    650
    Part Number: CH4000 Hood Latch Snap Latch Hood latch snap latch for select Allis Chalmers tractors, bale throwers, balers, and some Gleaner combines. Strike not included. Fits ALLIS CHALMERS - D10,...
    Add to Cart
  • Allis Chalmers D10 D12 D14 D15 D17 D19 D21 Hood Latch, used display part for tractor hood latch replacement.

    Allis Chalmers D10 D12 D14 D15 D17 D19 D21 Hood Latch (Display)

    $9.50
    649
    Part Number: CH4009 Allis Chalmers Hood Latch Loop-style snap hood latch for the Allis Chalmers tractors and Gleaner combines listed below. Fits Allis Chalmers D10 Allis Chalmers D12 Allis Chalmers...
    Add to Cart
  • Allis Chalmers Cream Steering Wheel, display model of vintage tractor steering wheel.

    Allis Chalmers Cream Steering Wheel (Display)

    $46.25
    648
    Cream steering wheel for listed Allis-Chalmers tractors and combines. Like original and made with all new material. Part Number: AC-137D Fits Allis Chalmers - ED40, D10, D12, D14 (sn 19001 and up),...
    Add to Cart
  • Allis Chalmers Cream Steering Wheel, display model of a vintage white steering wheel with three spokes and a black central hub.

    Allis Chalmers Cream Steering Wheel (Display)

    $46.25
    647
    Cream steering wheel for listed Allis-Chalmers tractors and combines. Like original and made with all new material. Part Number: AC-137D Fits Allis Chalmers - ED40, D10, D12, D14 (sn 19001 and up),...
    Add to Cart

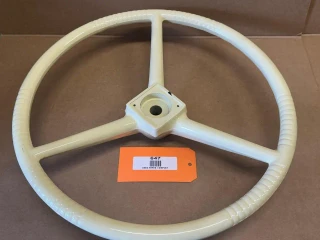

  • Allis Chalmers Cream Steering Wheel, white vintage steering wheel for tractor display.

    Allis Chalmers Cream Steering Wheel (Display)

    $46.25
    646
    Cream steering wheel for listed Allis-Chalmers tractors and combines. Like original and made with all new material. Part Number: AC-137D Fits Allis Chalmers - ED40, D10, D12, D14 (sn 19001 and up),...
    Add to Cart
