Allis Chalmers D17 Tractor Parts

About the Allis-Chalmers D17

Introduced in 1957, the D17 moved the D Series into the larger row-crop tractor class. It used the Power Director transmission and live PTO, so the operator could shift between ranges with a hand lever while keeping PTO-driven equipment running.

The D17 was built through 1967 in Series I, Series II, Series III, and Series IV versions. Gasoline, LP-gas, and diesel engines were offered during the production run, and the serial number table shows where each series begins.

Serial Number Reference

Serial number locations: The tractor serial number is stamped on the left-front end of the torque housing. The gasoline engine serial number is on the rear left-hand side of the engine block behind the carburetor; diesel engine numbers are on the top left-hand side of the engine block.

The table below shows the beginning tractor serial number for each Model D17 year and series:



1957-1960
Model D17 year Beginning serial number
1957 - Series I 1,001
1958 - Series I 4,300
1959 - Series I 16,500
1960 - Series I 28,200
1960 - Series II 32,001
1961-1964
Model D17 year Beginning serial number
1961 - Series II 33,100
1962 - Series II 38,070
1962 - Series III 42,001
1963 - Series III 65,001
1964 - Series III 70,611
1964-1967
Model D17 year Beginning serial number
1964 - Series IV 75,001
1965 - Series IV 77,090
1966 - Series IV 80,533
1967 - Series IV 86,061

Total production: 84,914 Model D17 tractors (51,598 gas and 12,284 diesel; LP-gas production is unknown).

Filter By

Sort By:

Display Type:
Filters
  • Allis Chalmers Ignition Key Switch, used display with metal key and electrical connectors

    Allis Chalmers Ignition Key Switch (Display)

    $31.75
    584
    Ignition key switch for select Allis Chalmers tractors and related applications. 5 spade terminals with screws, .995" diameter threaded end, OEM style Delco Remy. Includes jam nut and 2 keys. 4...
    Add to Cart

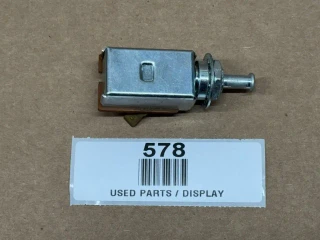

  • Allis-Chalmers 2-Position Light Switch AC-290D 228330, display view of used electrical switch part lying on brown surface with a white label underneath.

    Allis-Chalmers 2-Position Light Switch AC-290D 228330 (Display)

    $23.75
    578
    Allis-Chalmers 2-Position Light Switch Part Number: AC-290D This D Series 2-position light switch is listed for the tractor models below and uses 2 spade terminals. Fits Allis Chalmers - D10, D12,...
    Add to Cart
  • Allis Chalmers Side Name Plate Emblem D10 D12 D15 D17, display of vintage tractor badge with black lettering on a white background.

    Allis Chalmers Side Name Plate Emblem D10 D12 D15 D17 (Display)

    $63.75
    576
    Allis Chalmers Side Name Plate Emblem for D10, D12, D15, and D17. 1961-1963 style with creme background and black lettering. Part Number: ACR4421 Fits Allis Chalmers - D10, D12, D15, D17 Replaces /...
    Add to Cart
  • Light Visor for Allis-Chalmers D10 D12 D15 D17 D19, red curved tractor part for display or repair.

    Light Visor for Allis-Chalmers D10 D12 D15 D17 D19 (Display)

    $15.75
    575
    Light visor MF-108D for select Allis-Chalmers, Massey Ferguson, and Massey Harris applications. New condition. Part Number: MF-108D Fits Allis Chalmers: D10 (SN: 9001 & up), D12 (SN: 9001 & up), D15...
    Add to Cart
  • 4409X Sealed Beam Combination Rear Light Bulb 12V, round with reflective surface, for vehicle signaling, on display.

    4409X Sealed Beam Combination Rear Light Bulb 12V (Display)

    $16.00
    574
    Part Number: IH-899D Fits Allis Chalmers: D10, D12, D15, D17, D19, D21, 160, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 5040, 6040, 7030, 7040, 7050, 7060, 7080 Avery Case Cockshutt: models with...
    Add to Cart
  • Bullet Style Tail Light Assembly for Allis-Chalmers D14, D15, D17, used parts display, with black casing and red lens, mounted on a metal bolt with green wiring.

    Bullet Style Tail Light Assembly for Allis-Chalmers D14, D15, D17 (Display)

    $55.00
    573
    Bullet style tail light assembly for listed Allis-Chalmers, AC Cotton Picker, John Deere, and JD Lawn & Garden applications. Part Number: AB-3023D Fits Allis Chalmers D14 (SN 19001 and up) Allis...
    Add to Cart

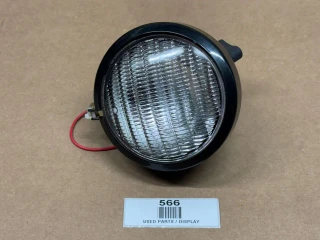

  • Allis Chalmers 12V Sealed Beam Combo Tail Light Assembly, display image of a round black and clear sealed beam tail light with wiring, used for agricultural or industrial vehicles.

    Allis Chalmers 12V Sealed Beam Combo Tail Light Assembly (Display)

    $93.50
    566
    Part Number: AC-355D Fits Allis Chalmers: 190XT (up to SN 19000), D10, D12, D15 (SN 9001 & up), D17 (SN 42001 & up), D19, D21, 190 Minneapolis Moline: JetStar 2, Jetstar 3 Super, M5, M504, M602,...
    Add to Cart
  • Headlight Assembly 12 Volt for Allis-Chalmers and Ford, display of a round headlight with a reflective glass surface and wiring attached, used as a replacement part for tractors.

    Headlight Assembly 12 Volt for Allis-Chalmers and Ford (Display)

    $43.50
    565
    12 volt headlight assembly for select Allis-Chalmers and Ford models. Mounts to the side of the grille, not the fender. OD is 5-3/4" with a 1/2"-13 stud. Part Number: FD-193D Fits Allis Chalmers:...
    Add to Cart

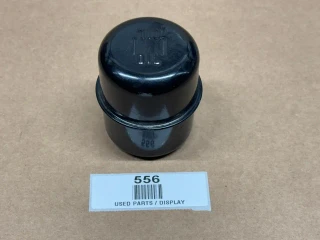

  • Oil Fill Breather Cap Without Clip, display image of a black oil fill breather cap without clip on a beige surface.

    Oil Fill Breather Cap Without Clip (Display)

    $34.00
    556
    Oil fill breather cap without clip. Includes a copper filter element, has "OIL" stamped into the top, and is e-coated in black. Made in the USA. Part Number: AC-178D Fits Allis-Chalmers...
    Add to Cart
  • Allis-Chalmers Snap Coupler Latch Spring Oversized Loops 70235881, a metallic coil spring with large loops and eyelets at both ends for agricultural equipment.

    Allis-Chalmers Snap Coupler Latch Spring Oversized Loops 70235881

    Allis-Chalmers
    $8.75
    AC-269S
    Allis Chalmers snap coupler latch spring for the models listed below. Oversized end loops slip over the existing rivets for fast, hassle‑free installation—no need to pull the old rivets. 3-1/4"...
    Add to Cart
  • Allis Chalmers WD45 Diesel D17 Air Cleaner Cap, display of used tractor air cleaner cap on brown background with barcode label

    Allis Chalmers WD45 Diesel D17 Air Cleaner Cap(Display)

    $26.50
    519
    Air cleaner cap for Allis Chalmers WD45 diesel and D17 applications. Includes a 2.275" I.D. inlet base and a 4.94" diameter cap. Part Number: AC-226D Fits Allis Chalmers WD45 Dsl Allis Chalmers D17...
    Add to Cart
  • Allis Chalmers B IB C CA D10 D12 D17 D19 Clutch Cover Plate, used display image of a pinkish clutch cover plate with two metal protrusions on a brown background.

    Allis Chalmers B IB C CA D10 D12 D17 D19 Clutch Cover Plate (Display)

    $15.75
    547
    Clutch Inspection Cover Plate for Allis Chalmers tractors. Includes integral spring steel clips. Part Number: AC-189D Fits B IB C CA D10 D12 D17 D19 Replaces / Cross...
    Add to Cart
  • Top Vented Fuel Cap With Gasket (Display), a metal fuel cap with vented design and gasket for secure closure.

    Top Vented Fuel Cap With Gasket (Display)

    $10.25
    542
    Top vented fuel cap with gasket and splash guard for listed tractors and equipment. Part Number: AB-1880D Fits Allis Chalmers - A Allis Chalmers - B (Up to Sn: 101) Allis Chalmers - D17 (EARLY,...
    Add to Cart
  • Fuel Cap for Allis-Chalmers, Case, Ford, JD, and Massey, display of a round metal fuel cap with a shiny surface and a bar handle.

    Fuel Cap for Allis-Chalmers, Case, Ford, JD, and Massey (Display)

    $7.75
    540
    Chrome vented fuel cap with gasket for listed tractor models. Includes gasket and measures 2-5/8" O.D. with 1/4" height. Part Number: MH-043D Fits Allis Chalmers: D10, D12, D14, D15, D17, D19, 170,...
    Add to Cart
  • Cap for Fuel, Gas, Oil, or Power Steering, display view of a metallic cap with a rounded shape and central valve, used for vehicle fluid reservoirs.

    Cap for Fuel, Gas, Oil, or Power Steering (Display)

    $8.00
    535
    Part Number: IH-338D Product Overview Cap can be used as an engine oil cap, auxiliary starting tank cap, power steering cap, or oil filler cap. Fits Allis Chalmers: Engine Oil Cap: G Allis Chalmers:...
    Add to Cart
  • Allis-Chalmers Case Radiator Cap, used display part shown on a beige background with a label marked 530 and barcode.

    Allis-Chalmers Case Radiator Cap (Display)

    $19.75
    530
    Chrome-plated radiator cap for select Allis-Chalmers and Case tractors and equipment. For pressurized systems and listed for the applications below. Part Number: AC-209D Fits Allis Chalmers - CA,...
    Add to Cart
