Allis Chalmers D17 Tractor Parts

About the Allis-Chalmers D17

Introduced in 1957, the D17 moved the D Series into the larger row-crop tractor class. It used the Power Director transmission and live PTO, so the operator could shift between ranges with a hand lever while keeping PTO-driven equipment running.

The D17 was built through 1967 in Series I, Series II, Series III, and Series IV versions. Gasoline, LP-gas, and diesel engines were offered during the production run, and the serial number table shows where each series begins.

Serial Number Reference

Serial number locations: The tractor serial number is stamped on the left-front end of the torque housing. The gasoline engine serial number is on the rear left-hand side of the engine block behind the carburetor; diesel engine numbers are on the top left-hand side of the engine block.

The table below shows the beginning tractor serial number for each Model D17 year and series:



1957-1960
Model D17 year Beginning serial number
1957 - Series I 1,001
1958 - Series I 4,300
1959 - Series I 16,500
1960 - Series I 28,200
1960 - Series II 32,001
1961-1964
Model D17 year Beginning serial number
1961 - Series II 33,100
1962 - Series II 38,070
1962 - Series III 42,001
1963 - Series III 65,001
1964 - Series III 70,611
1964-1967
Model D17 year Beginning serial number
1964 - Series IV 75,001
1965 - Series IV 77,090
1966 - Series IV 80,533
1967 - Series IV 86,061

Total production: 84,914 Model D17 tractors (51,598 gas and 12,284 diesel; LP-gas production is unknown).

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Temperature Gauge D10 D12 D14 D15 D17 D19 WD45 Diesel, round water temperature gauge with black wiring and a brass probe for tractor engines.

    Allis-Chalmers Temperature Gauge D10 D12 D14 D15 D17 D19 WD45 Diesel

    Allis-Chalmers
    $49.75
    AC-260D
    Part Number: AC-260DAllis-Chalmers Temperature GaugeThis Allis-Chalmers temperature gauge is for WD45 Diesel, D10, D12, D14, D15, D17, and D19 models. It includes an Allis-Chalmers logo and a 70"...
    Add to Cart
  • Allis-Chalmers Water Temperature Gauge, vintage round gauge with black face and white markings, featuring a metal bezel and a sensor probe at the bottom.

    Water Temperature Gauge

    Allis-Chalmers
    $34.75
    AB-239D
    Part Number: AB-239DWater Temperature GaugeThis water temperature gauge reads 100 to 280 degrees and includes a 6-foot capillary tube, lighting, and mounting hardware. It has a chrome bezel and fits...
    Add to Cart
  • Allis-Chalmers Oil Pressure Gauge D10 D12 D14 D15 D17, close-up of a pressure gauge with a white face, black markings, and a needle indicating normal oil pressure.

    Allis Chalmers Oil Pressure Gauge D10 D12 D14 D15 D17

    Allis-Chalmers
    $31.75
    AC-160D
    Allis Chalmers oil pressure gauge for the applications listed below. The gauge has 0 to 30 PSI range, 1/8" male pipe threads, a chrome bezel, and "Allis Chalmers" on the face.Part Number:...
    Add to Cart
  • Allis-Chalmers Universal Oil Pressure Gauge (0-50 LB) - AB-082D

    Universal Oil Pressure Gauge 0-50 LB

    Allis-Chalmers
    $21.75
    AB-082D
    Universal oil pressure gauge with a 0-50 LB range and the applications listed below. Black face with white letters, chrome bezel, and no logo.Part Number: AB-082DFitsAllis Chalmers - WD45 Dsl, D10,...
    Add to Cart
  • Allis-Chalmers Oil Pressure Gauge Copper Line Kit

    Oil Pressure Gauge Copper Line Kit

    Allis-Chalmers
    $29.75
    AB-523D
    Oil pressure gauge copper line kit for the applications listed below. Includes 6 FT of 1/8" copper line and the fittings listed in the kit contents.Part Number: AB-523DFitsAllis...
    Add to Cart
  • Allis-Chalmers OIL GAUGE FITTING

    OIL GAUGE FITTING

    Allis-Chalmers
    $13.75
    5220K31
    Oil gauge fitting for the applications listed below. Brass fitting for models using 1/8" oil line and made in the USA.Part Number: 5220K31FitsAllis ChalmersCaseCockshuttFordIH / FarmallJohn De
    Add to Cart
  • Allis-Chalmers Ammeter Amp Gauge (30-0-30)

    Ammeter Amp Gauge (30-0-30)

    Allis-Chalmers
    $19.75
    AB-109D
    Ammeter amp gauge with a 30-0-30 range, chrome bezel, and 2" diameter hole fitment.Fits the tractor models and applications listed below.Part Number: AB-109DFitsAllis Chalmers: D10, D12, D14, D15,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Amp Gauge B C CA G WC WD WD45 WF D14 D15 D17

    Allis Chalmers Amp Gauge

    Allis-Chalmers
    $29.75
    AC-258D
    Allis Chalmers amp gauge with a chrome bezel and restoration quality finish.Fits the Allis Chalmers models listed below.Part Number: AC-258DFitsAllis Chalmers: B, C, CA, G, WC, WD, WD45, WD45D, WF,...
    Add to Cart
  • Allis-Chalmers AMMETER (AMP) GAUGE, 60-0-60 - AB-466D

    AMMETER (AMP) GAUGE, 60-0-60

    Allis-Chalmers
    $19.75
    AB-466D
    Ammeter (amp) gauge with a 60-0-60 range, chrome bezel, and no logo.Fits most tractors equipped with an alternator and a 2" diameter hole.Part Number: AB-466DFitsAllis ChalmersAveryCaseCockshuttFord
    Add to Cart
  • Aftermarket In-Line Fuel Filter AB-490D

    In-Line Fuel Filter for Various Models

    Aftermarket
    $12.95
    AB-490D
    In-line fuel filter for various models using 3/8" fuel lines. Includes hose and clamps.Use to help keep rust and dirt out of the carburetor.Part Number: AB-490DFitsAllis...
    Add to Cart
  • Allis-Chalmers Brass Sediment Bowl Screen, metallic brass disc with a fine mesh pattern for filtering sediment.

    Brass Sediment Bowl Screen

    Allis-Chalmers
    $3.75
    AB-229D
    Brass sediment bowl screen for listed tractors and combines.Part Number: AB-229DFitsAllis Chalmers - 190XT, B, C, CA, D10, D12, D14, D15, D17, D19, D21, G, I40, I400, I60, I600, IB, RC, U, UC, WC,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers 2 Bolt Starter Drive Housing D17 170 175

    2 Bolt Starter Drive Housing for Allis Chalmers D17 170 175

    Allis-Chalmers
    $99.50
    AC-1275D
    2 bolt starter drive housing for select Allis Chalmers and AC applications using a 2 bolt starter nose.Part Number: AC-1275DFitsAC Combines EAC Combines E3AC Combines K (For use on Gas / LP models...
    Add to Cart

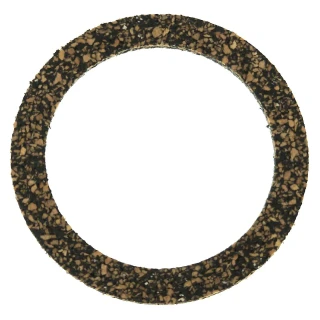

  • Allis-Chalmers Sediment Bowl Gasket 2-1/8"

    Sediment Bowl Gasket 2-1/8"

    Allis-Chalmers
    $3.00
    JD-642D
    Sediment bowl gasket, 2-1/8". Fits listed Allis-Chalmers and other tractor models listed below.Part Number: JD-642DFitsAllis-Chalmers - 190XT, D15 (Gas models with SN: 9001 & up and all Dsl models),...
    Add to Cart
  • Allis-Chalmers Sediment Bowl Glass, clear transparent glass sediment bowl used in fuel systems for filtration.

    Sediment Bowl Glass

    Allis-Chalmers
    $5.75
    AB-124D
    Sediment bowl glass for listed tractors and combines.Part Number: AB-124DFitsAllis Chalmers - 190XT, D15 (Gas (SN: 9001 & up), & All Diesel), D17 (Gas (SN: 42001 & up) & All Diesel), D19 (Gas (SN:...
    Add to Cart
  • Allis-Chalmers DELCO STARTER SOLENOID Allis Chalmers D17 180 185 190 190XT 200 7000 7020

    Delco Starter Solenoid for Allis-Chalmers D17 180 185 190 190XT 200 7000 7020

    Allis-Chalmers
    $39.75
    AB-1366D
    Delco starter solenoid. New 12 volt, 4 terminal unit for 30 and 35 MT series. Fits the listed applications below.Part Number: AB-1366DFitsAllis-Chalmers: D17 DSL (up to sn 38964) (use with starter...
    Add to Cart
  • Allis-Chalmers INSTRUMENT PANEL GAUGE TRIM Allis Chalmers D14 D15 D17 D19

    Instrument Panel Gauge Trim for Allis-Chalmers D14 D15 D17 D19

    Allis-Chalmers
    $39.75
    DJS353
    Instrument panel gauge trim for Allis-Chalmers D14, D15, D17, and D19. USA made and finished in brushed stainless steel.Part Number: DJS353FitsD14D15D17D19Replaces / Cross...
    Add to Cart
  • Allis-Chalmers WD45 D17 Marvel Schebler Carburetor Repair Kit, assortment of gaskets, screws, springs, and small engine repair parts laid out on a white background.

    Allis Chalmers WD45 D17 Marvel Schebler Carburetor Repair Kit

    Allis-Chalmers
    $39.75
    AB-216D
    Carburetor repair kit for Allis Chalmers WD45 and D17 models. Fits the listed Marvel Schebler carbs and includes the repair parts shown in the supplied data.Part Number: AB-216DFitsAllis Chalmers...
    Add to Cart
  • Allis-Chalmers Allis Chalmers WD45 WD WC D17 Manifold 70224782 70229416 70226350

    Allis Chalmers WD WC WD45 D17 Manifold

    Allis-Chalmers
    $199.75
    AC-004D
    Replacement manifold for Allis-Chalmers WC, WD, WD45, and D17 gas models up to SN 32000.Preserves the original design and appearance noted in the product data.Part Number: AC-004DFitsAllis Chalmers...
    Add to Cart
