Allis Chalmers WD45 Tractor Parts

About the Allis-Chalmers WD45

The WD45 replaced the WD in 1953 and gave Allis-Chalmers a stronger four-plow row-crop tractor without losing the WD's live PTO and Snap-Coupler layout. Its 226-cubic-inch gas, tractor-fuel, or LP engine made it noticeably more powerful than the WD.

The WD45 was the first Allis-Chalmers tractor offered with power steering, which became available in 1956. A six-cylinder diesel was added after Allis-Chalmers acquired Buda, and the WD45 remained in production through 1957.

Serial Number Reference

Serial number locations: The tractor serial number is stamped at the left brake cover or the left rear of the axle housing. The gasoline engine serial number is on the left-hand side of the engine near the carburetor; diesel engine numbers are on the left-hand side of the diesel engine.

The table below shows the beginning tractor serial number for each Model WD45 year:



1953-1954
Model WD45 year Beginning serial number
1953 146,607
1954 160,386
1955-1956
Model WD45 year Beginning serial number
1955 190,993
1956 217,992
1957-1957
Model WD45 year Beginning serial number
1957 230,295

Total production: 90,382 Model WD45 tractors (83,536 gasoline and 6,509 diesel; the LP/tractor-fuel total is unknown).

Allis-Chalmers WD45 Paint Reference

For restoration planning, the Allis-Chalmers WD45 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers WD45 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Persian Orange 1

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Auxiliary Male 2 Pin Connector Plug, metallic connector with two gold pins and hexagonal nut on top, used for electrical connections.

    Auxiliary Male 2 Pin Connector Plug

    Allis-Chalmers
    $29.75
    AB-1868D
    Auxiliary Male 2 Pin Connector Plug with threaded cable grip and plated brass pins.For 12-18 gauge wire. Wires must be soldered or crimped.Part Number: AB-1868DFitsAllis Chalmers - variousCase -...
    Add to Cart
  • Black Allis-Chalmers front weight anchor rod for a farm tractor, shown diagonally with a hooked end and a threaded end fitted with a washer and nut.

    Allis Chalmers Front Weight Anchor Rod

    Allis-Chalmers
    $25.75
    AC-241D
    Front weight anchor rod for select Allis Chalmers tractors. Fits RC, WC, WD, WD45 gas or LP only, and WF.Part Number: AC-241DFitsRCWCWDWD45 (Gas Or LP Only, Will not Fit DSL)WFReplaces / Cross...
    Add to Cart
  • Allis-Chalmers Allis Chalmers 6 Volt Bullet Tail Light, vintage vehicle accessory with silver housing, red lens, and white wiring

    Allis Chalmers 6 Volt Bullet Tail Light

    Allis-Chalmers
    $45.75
    AC-264V6D
    6 volt bullet tail light for select Allis Chalmers and John Deere tractors. Restoration quality, with 6-volt bulb included and a red glass lens.Part Number: AC-264V6DFitsAllis Chalmers: B, C, CA, G,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers WD WD45 WC | Headlight Assembly 6 Volt

    Allis-Chalmers WD WD45 WC Headlight Assembly 6 Volt

    Allis-Chalmers
    $57.75
    AC-150V6
    Part Number: AC-150V6Allis-Chalmers Headlight AssemblyThis 6 volt headlight assembly is for Allis-Chalmers WD, WD45, RC, WC, and WF tractors. It features a 4-3/4" diameter curved lens and is a bulb...
    Add to Cart
  • Allis-Chalmers ALTERNATOR PULLEY 2-1/2" OD 5/8" belt width

    Allis-Chalmers Alternator Pulley 2-1/2" OD 5/8" Belt Width

    Allis-Chalmers
    $23.95
    AB-495D
    Alternator pulley for the listed tractor applications. Same applications as part number AB-418D alternator.Part Number: AB-495DFitsAllis ChalmersCaseCockshuttFordIH / FarmallJohn DeereMassey...
    Add to Cart
  • Allis-Chalmers Sediment Bowl Glass, clear transparent glass sediment bowl used in fuel systems for filtration.

    Sediment Bowl Glass

    Allis-Chalmers
    $5.75
    AB-124D
    Sediment bowl glass for listed tractors and combines.Part Number: AB-124DFitsAllis Chalmers - 190XT, D15 (Gas (SN: 9001 & up), & All Diesel), D17 (Gas (SN: 42001 & up) & All Diesel), D19 (Gas (SN:...
    Add to Cart
  • Allis-Chalmers Tractor Shock Absorber Mounting Bolt, steel metal bolt for shock absorber mounting

    Tractor Shock Absorber Mounting Bolt

    Allis-Chalmers
    $10.75
    AB-526D
    Tractor Shock Absorber Mounting BoltPart Number: AB-526DFitsAllis Chalmers: B, C, CA, RC, U, WC, WF (equipped with an optional Monroe Easy Ride seat), WD, WD45 (serviceable only)Avery: A, BF, BG, R...
    Add to Cart
  • A metal governor rod linkage spring with a coil in the middle, two hooks on either end, used for Allis-Chalmers farm tractors such as WD, WD45, WC, WF, B, C, and IB.

    Governor Rod Linkage Spring - Allis Chalmers WD, WD45, WC, WF, B, C, IB

    Allis-Chalmers
    $14.75
    70203208
    Part Number: 70203208Governor Rod Linkage SpringGovernor rod linkage spring for Allis Chalmers tractors. Serial qualifiers are listed for B, C, and IB models.FitsAllis Chalmers WDAllis Chalmers...
    Add to Cart
  • Allis-Chalmers Battery Retainer J-Bolt (Pair) IH-721D, black metal battery retainer bolts with wing nut threads and hooks for securing tractor batteries.

    Battery Retainer J-Bolt Pair IH-721D

    Allis-Chalmers
    $9.75
    IH-721D
    Battery Retainer J-Bolt PairThis IH-721D battery retainer J-bolt set comes as a pair. These are universal battery J-bolts and measure 5/16-18 NC x 10.750" long.FitsAllis-Chalmers: variousAvery:...
    Add to Cart
  • Allis-Chalmers Tie Rod Dust Boot, black rubber dust cover for allis chalmers G 70800442 tractor parts.

    Allis-Chalmers Tie Rod Dust Boot FD-336D 70800442

    Allis-Chalmers
    $4.95
    FD-336D
    Allis-Chalmers Tie Rod Dust Boot FD-336D 70800442This tie rod dust boot is listed as serviceable for Allis-Chalmers G and includes universal applications shown below. Dimensions and cross references...
    Add to Cart
  • A brass straight fitting for sediment bowl to fuel line on Allis-Chalmers farm tractors.

    Straight Fitting for Sediment Bowl to Fuel Line

    Allis-Chalmers
    $4.25
    35K373
    Part Number: 35K373Straight Sediment Bowl Fuel Line FittingStraight brass fitting for the sediment bowl fuel line.FitsAllis-Chalmers D14Allis-Chalmers D15Allis-Chalmers WD45Specs1/4" flare to 1/8"...
    Add to Cart

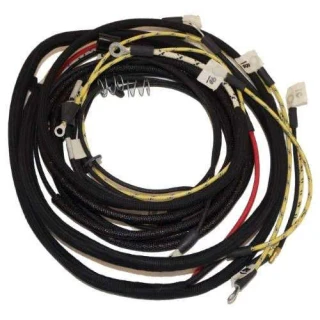

  • Coiled Allis-Chalmers wiring harness kit for WD and WD45 farm tractors, with black braided wiring, colored leads, connectors, and metal terminals.

    Allis-Chalmers Wiring Harness Kit for WD, WD45

    Allis-Chalmers
    $199.50
    AC-2925D
    Wiring harness kit for Allis-Chalmers WD and WD45 tractors. For Gas/Lp models with a 1 wire 12-volt alternator.Part Number: AC-2925DFitsAllis Chalmers - WD, WD45 (Gas/Lp with 1 wire 12-volt...
    Add to Cart
  • Allis-Chalmers AMMETER (AMP) GAUGE, 60-0-60 - AB-466D

    AMMETER (AMP) GAUGE, 60-0-60

    Allis-Chalmers
    $19.75
    AB-466D
    Ammeter (amp) gauge with a 60-0-60 range, chrome bezel, and no logo.Fits most tractors equipped with an alternator and a 2" diameter hole.Part Number: AB-466DFitsAllis ChalmersAveryCaseCockshuttFord
    Add to Cart
  • Allis-Chalmers Allis Chalmers WD45 OPERATORS MANUAL

    Allis-Chalmers WD45 Operator's Manual

    Allis-Chalmers
    $19.75
    MAN001D
    The Allis-Chalmers WD45 operator's manual reprint includes the operating information supplied with the tractor.Use it for owner-operator instructions, shift patterns, capacities, and adjustment...
    Add to Cart
  • Allis-Chalmers Timing Gear Cover Gasket, engine timing gear cover gasket for Allis Chalmers D17, WC, WD, WD45, WF, 170, 175 with part number 70233214.

    Timing Gear Cover Gasket Allis Chalmers D17 WC WD WD45 WF 170 175 70233214

    Allis-Chalmers
    $9.75
    70233214
    Timing gear cover gasket for select Allis Chalmers models. Check engine serial details before ordering.0.032" thick with 7 mounting holes and 7/16" mounting hole ID.Part Number: 70233214FitsWD, WD45,...
    Add to Cart
  • A gasket with multiple circular holes of various sizes, used as a part for Allis-Chalmers farm tractors, specifically for the hydraulic pump cover to pump body.

    Allis Chalmers Hydraulic Pump Cover to Pump Body Gasket

    Allis-Chalmers
    $12.00
    70222579
    Hydraulic pump cover to pump body gasket for the listed Allis Chalmers tractors.Part Number: 70222579FitsAllis Chalmers WDAllis Chalmers WD45Allis Chalmers WD45 DieselReplaces / Cross...
    Add to Cart

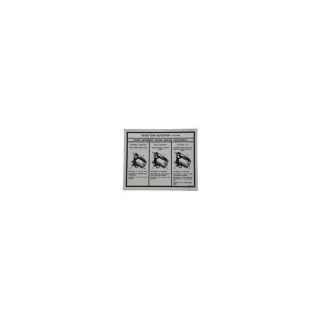

  • Black-and-white Allis-Chalmers traction booster hydraulic control decal, with three illustrated operating positions and small instructions, shown centered on a white background.

    Hydraulic Control Decal (Traction Booster) for Allis Chalmers WD, WD45

    Allis-Chalmers
    $12.00
    A-2-269
    Hydraulic Control Decal (Traction Booster) for Allis Chalmers WD and WD45.Mounts on side of battery box.Part Number: A-2-269FitsAllis Chalmers WDAllis Chalmers WD45NotesPart number A-2-269.
    Add to Cart
  • Allis-Chalmers UNIVERSAL TRACTOR SEAT PAN

    Universal Tractor Seat Pan

    Allis-Chalmers
    $54.75
    FD-067D
    Universal tractor seat pan with a 19" diameter, 9-hole pattern, and single-bolt mount. Make sure your application takes a single-bolt seat pan.Some tractors originally used a 21" seat pan, so verify...
    Add to Cart
