Allis Chalmers WD45 Tractor Parts

About the Allis-Chalmers WD45

The WD45 replaced the WD in 1953 and gave Allis-Chalmers a stronger four-plow row-crop tractor without losing the WD's live PTO and Snap-Coupler layout. Its 226-cubic-inch gas, tractor-fuel, or LP engine made it noticeably more powerful than the WD.

The WD45 was the first Allis-Chalmers tractor offered with power steering, which became available in 1956. A six-cylinder diesel was added after Allis-Chalmers acquired Buda, and the WD45 remained in production through 1957.

Serial Number Reference

Serial number locations: The tractor serial number is stamped at the left brake cover or the left rear of the axle housing. The gasoline engine serial number is on the left-hand side of the engine near the carburetor; diesel engine numbers are on the left-hand side of the diesel engine.

The table below shows the beginning tractor serial number for each Model WD45 year:



1953-1954
Model WD45 year Beginning serial number
1953 146,607
1954 160,386
1955-1956
Model WD45 year Beginning serial number
1955 190,993
1956 217,992
1957-1957
Model WD45 year Beginning serial number
1957 230,295

Total production: 90,382 Model WD45 tractors (83,536 gasoline and 6,509 diesel; the LP/tractor-fuel total is unknown).

Allis-Chalmers WD45 Paint Reference

For restoration planning, the Allis-Chalmers WD45 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers WD45 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Persian Orange 1

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • A gasket for the governor front cover of Allis-Chalmers farm tractors, specifically for models WC, WD, WD45, and D17. The gasket is gray, with four holes for bolts and a large opening to fit around the governor.

    Governor Front Cover Gasket for Allis-Chalmers WC WD WD45 D17

    Allis-Chalmers
    $8.25
    70233215
    Governor Front Cover Gasket for select Allis-Chalmers tractors.Part Number: 70233215FitsAllis Chalmers - WC, WD, WD45, WD45 Diesel, D17 (Gas & LP)Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Allis Chalmers WD45 WD WC D17 Manifold 70224782 70229416 70226350

    Allis Chalmers WD WC WD45 D17 Manifold

    Allis-Chalmers
    $199.75
    AC-004D
    Replacement manifold for Allis-Chalmers WC, WD, WD45, and D17 gas models up to SN 32000.Preserves the original design and appearance noted in the product data.Part Number: AC-004DFitsAllis Chalmers...
    Add to Cart
  • Replacement Viton needle float valve and threaded brass seat with copper-colored gasket and metal retaining clip for Marvel-Schebler carburetors on Allis-Chalmers farm tractors.

    Viton Needle Float Valve & Seat - Marvel Schebler Carburetors

    Allis-Chalmers
    $8.00
    AB-133D
    Viton needle float valve & seat for Marvel Schebler carburetors.Part Number: AB-133DFitsAllis Chalmers WD45Allis Chalmers D15 (Sn# 9001-Up)Allis Chalmers D17Allis Chalmers D19Allis Chalmers 170Allis...
    Add to Cart
  • Brass Allis-Chalmers carburetor fuel bowl or LP regulator drain cock, part number 70915514, with a threaded body, hex nut, and flat metal wing handle.

    Carburetor Fuel Bowl Drain Cock, LP Regulator Drain Cock for Allis-Chalmers 70915514

    Allis-Chalmers
    $7.75
    70915514
    Carburetor fuel bowl drain cock and LP regulator drain cock for listed Allis-Chalmers models. Includes 1/8" NPT and replacement 70915514.Part Number: 70915514FitsAllis Chalmers WC (Zenith & Marvel...
    Add to Cart
  • Allis-Chalmers Spark Plug Wiring Set with 90 Degree Boots - FD-149D, black spark plug wires with 90 degree boots, includes four wire connectors and six brass terminals.

    Spark Plug Wiring Set w/90 Degree Boots - FD-149D

    Allis-Chalmers
    $18.00
    FD-149D
    Spark plug wiring set with 90 degree boots. Cut-to-length wires with copper core construction, aluminum coating for corrosion resistance, and waterproof neoprene boots. This set is listed for many...
    Add to Cart
  • A brass fuel line compression fitting designed for Allis-Chalmers farm tractors. It connects a 5/16 inch fuel line to a 1/8 inch pipe, suitable for various model tractors.

    Fuel Line Compression Fitting 5/16" Line to 1/8" Pipe - Various Models

    Allis-Chalmers
    $3.75
    516FITTING
    Fuel line compression fitting for various Allis-Chalmers models. Connects 5/16" line to 1/8" pipe and is used on sediment bowls in most applications.Part Number: 516FITTINGFitsAllis Chalmers -...
    Add to Cart
  • A sediment bowl filter for Allis-Chalmers farm tractors, featuring a tall bowl assembly with a filter element inside. The filter has a metal body, a glass bowl for sediment collection, and a brass shut-off valve at the side. The image notes that the product is for illustrative purposes and the sediment bowl assembly is not included.

    Sediment Bowl Filter for Tall Bowl Assemblies

    Aftermarket
    $12.25
    DJS3039
    Fuel filter only. Sediment bowl not included. This fits our sediment bowl assembly ACR2406 and also fits replacement glass bowl
    Add to Cart
  • Two blue water pump gaskets for Allis-Chalmers WC, WD, WD45, and WF farm tractors: a large circular gasket with a wide center opening and several bolt holes, and a smaller triangular gasket with an oval opening and three bolt holes, shown on a white background.

    Water Pump Gasket Set for Allis Chalmers WC, WD, WD45, WF

    Allis-Chalmers
    $6.75
    70203061
    Water pump gasket set for Allis Chalmers tractors. Kit contains 2 water pump gaskets.Part Number: 70203061FitsAllis Chalmers WCAllis Chalmers WDAllis Chalmers WD45Allis Chalmers WFAllis Chalmers...
    Add to Cart
  • Allis-Chalmers WD45 1953-1957 Black Vinyl Cut Decal Set, product image showing black decals and instructions.

    Allis Chalmers WD45 1953-1957 Black Vinyl Cut Decal Set

    Allis-Chalmers
    $75.00
    DJS115
    Allis Chalmers WD45 black vinyl cut decal set for 1953-1957 models. No refunds on vinyl cut decals. Store in a cool, dry place. Do not soak in water.Part Number: DJS115FitsAllis Chalmers: WD45...
    Add to Cart
  • Two curved metal connecting rod bearing shells for Allis-Chalmers farm tractors, shown separately against a white background.

    Connecting Rod Bearing .010 Undersize for Allis-Chalmers D17, WD, WD45, 170, 175, WC, WF

    Allis-Chalmers
    $15.75
    AC-2493D
    Connecting rod bearing .010 undersize for the Allis-Chalmers applications listed below. Sold per journal.Part Number: AC-2493DFitsAllis Chalmers D17, WD, WD45, 170, 175 (Gas, LP with G201, G226...
    Add to Cart
  • Allis-Chalmers Lights Knob, only for Allis Chalmers tractors, black plastic knob with 'LIGHTS' text in white.

    Lights Knob Only for Allis Chalmers

    Allis-Chalmers
    $5.75
    AB-425D
    Part Number: AB-425DLights Knob OnlyKnob Only ("Lights") for listed applications. Thread size is 10-32.FitsAllis Chalmers: B, C, CA, G, WC, WD, WD45Case: VAC, VAH, VAI, VAO (all up to sn...
    Add to Cart
  • Allis-Chalmers Air Cleaner Cap 70208222, black round tractor air filter cap with a smooth surface.

    Allis-Chalmers Air Cleaner Cap 70208222

    Allis-Chalmers
    $21.75
    ACR0576
    Part Number: ACR0576 Allis-Chalmers Air Cleaner Cap Replacement air cleaner cap for Allis-Chalmers WC, WD, WF, WD45, and D15 tractors. Part number 70208222. New replacement part. Specs: I.D. 1-3/4",...
    Add to Cart

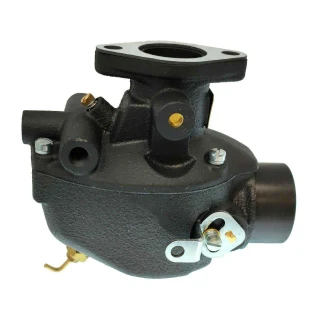

  • Image of a black carburetor designed for Allis-Chalmers farm tractors like WD45 and D17, with multiple fittings and mounting points.

    Allis-Chalmers WD45 D17 Carburetor TSX464 TSX561 TSX773

    Allis-Chalmers
    $349.75
    ACR7934
    Brand new Marvel Schebler style carburetor for Allis-Chalmers WD45 and D17 up to SN 42000. Comes with a mounting gasket and the listed specifications below.Part Number: ACR7934FitsAllis Chalmers...
    Add to Cart
  • Front crankshaft seal for Allis-Chalmers D10, D12, D14, D15, and late WD45 farm tractors; a dark circular seal with a gray inner ring.

    Allis Chalmers Front Crankshaft Seal - D10, D12, D14, D15, Late WD45

    Allis-Chalmers
    $19.00
    70226620
    Allis Chalmers front crankshaft seal for the listed D10, D12, D14, D15, and Late WD45 applications.Part Number: 70226620FitsD10D12D14D15 (up to 9001; 138 & 149 CID Gas)WD45 engine # 45-16650 &...
    Add to Cart
  • Two gray semicircular Allis-Chalmers connecting rod bearing shells, .020-inch undersize, shown on a white background for D17, WD, WD45, 170, 175, WC, and WF farm tractors.

    Connecting Rod Bearing .020 Undersize for Allis-Chalmers D17, WD, WD45, 170, 175, WC, WF

    Allis-Chalmers
    $15.00
    AC-2562D
    Connecting rod bearing .020" undersize for the Allis-Chalmers applications listed below. Sold per journal.Part Number: AC-2562DFitsAllis Chalmers D17, WD, WD45, 170, 175 (gas, LP with G201, G226...
    Add to Cart
  • Flat dark gray Marvel-Schebler carburetor bowl gasket for Allis-Chalmers WD45 and D17 tractors, with a large center opening, several small holes, and a tabbed lower cutout.

    Marvel Schebler Bowl Gasket for Allis-Chalmers WD45, D17

    Allis-Chalmers
    $3.00
    70226452
    Marvel Schebler Bowl Gasket for select Allis-Chalmers and Ford carburetors.Part Number: 70226452FitsAllis Chalmers - WD45, D17Ford - 801, 901, 4000 (1958-1964)Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Ignition Switch 4 Position Key Switch

    4 Position Ignition Switch with 2 Keys

    Allis-Chalmers
    $19.75
    AB-400D
    4-position ignition switch for AG and light industrial equipment.Includes 2 keys.Part Number: AB-400DFitsAllis ChalmersAveryCaseCockshuttDavid BrownFordIH / FarmallJohn DeereMassey FergusonMassey...
    Add to Cart
  • Long, narrow brown rectangular valve cover gasket with rounded corners, shown diagonally on a white background; for Allis-Chalmers D17 Diesel, WD45 Diesel, and D19 farm tractors.

    Valve Cover Gasket for Allis-Chalmers D17 Diesel, WD45 Diesel, D19

    Allis-Chalmers
    $29.75
    AB-2589D
    Valve cover gasket for listed Allis-Chalmers, Cockshutt, and other applications. Condition: New.Part Number: AB-2589DFitsAllis Chalmers - D17 Diesel, WD45 (Dsl), D19 (Gas and Dsl)Allis Chalmers...
    Add to Cart
