Allis Chalmers WD45 Tractor Parts

About the Allis-Chalmers WD45

The WD45 replaced the WD in 1953 and gave Allis-Chalmers a stronger four-plow row-crop tractor without losing the WD's live PTO and Snap-Coupler layout. Its 226-cubic-inch gas, tractor-fuel, or LP engine made it noticeably more powerful than the WD.

The WD45 was the first Allis-Chalmers tractor offered with power steering, which became available in 1956. A six-cylinder diesel was added after Allis-Chalmers acquired Buda, and the WD45 remained in production through 1957.

Serial Number Reference

Serial number locations: The tractor serial number is stamped at the left brake cover or the left rear of the axle housing. The gasoline engine serial number is on the left-hand side of the engine near the carburetor; diesel engine numbers are on the left-hand side of the diesel engine.

The table below shows the beginning tractor serial number for each Model WD45 year:



1953-1954
Model WD45 year Beginning serial number
1953 146,607
1954 160,386
1955-1956
Model WD45 year Beginning serial number
1955 190,993
1956 217,992
1957-1957
Model WD45 year Beginning serial number
1957 230,295

Total production: 90,382 Model WD45 tractors (83,536 gasoline and 6,509 diesel; the LP/tractor-fuel total is unknown).

Allis-Chalmers WD45 Paint Reference

For restoration planning, the Allis-Chalmers WD45 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers WD45 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Persian Orange 1

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Black circular PTO output shaft gearbox seal with a large center opening and molded markings, shown at an angle on a white background; for Allis-Chalmers WD and WD45 farm tractors.

    Allis-Chalmers WD, WD45 PTO Output Shaft Gear Box Seal

    Allis-Chalmers
    $17.25
    70224779
    PTO Output Shaft Gear Box Seal for Allis-Chalmers WD and WD45.Part Number: 70224779FitsAllis-Chalmers WDAllis-Chalmers WD45Replaces / Cross Reference702247792247792247799SpecsDouble lip spring...
    Add to Cart
  • Allis-Chalmers Universal Tie Rod Boot AB-371D, black rubber automotive part for steering components.

    Universal Tie Rod Boot

    Allis-Chalmers
    $4.95
    AB-371D
    Part Number: AB-371DProduct OverviewUniversal tie rod boot with listed applications on multiple makes.FitsAllis ChalmersAveryCaseCockshuttFordIH / FarmallJohn Deere<
    Add to Cart
  • Four black circular valve cover mounting grommet washers arranged in a two-by-two layout on a white background.

    Allis-Chalmers Valve Cover Mounting Grommets Washers 70226477

    Allis-Chalmers
    $9.40
    70226477
    Allis Chalmers - B, IB, C, CA, RC, WD, WD45, WC, WF, D10, D12, D14, D15, D17, 170, 175 Part Number: 70226477 Replaces / Cross Reference 226477 70226477 Notes Contains: 4 Valve Cover Mounting...
    Add to Cart
  • Allis-Chalmers Valve Cover Gasket for WC, WD, WF, WD45, D17, 170, 175, engine part gasket image.

    Allis Chalmers Valve Cover Gasket for WC, WD, WF, WD45, D17, 170, 175

    Allis-Chalmers
    $17.75
    AC-315D
    Allis Chalmers Valve Cover Gasket for gas/LP only WC, WD, WF, WD45, D17, 170, and 175 models with 201 or 226 CI engines.Part Number: AC-315DFitsAllis Chalmers WCAllis Chalmers WDAllis Chalmers...
    Add to Cart
  • Allis-Chalmers tractor ignition key switch with a brass-colored cylindrical switch, two attached yellow and black wires with ring terminals, and two keys.

    Allis-Chalmers Key Switch Ignition Switch 70225310

    Allis-Chalmers
    $13.50
    AB-065D
    Key switch ignition switch for Allis-Chalmers, Case, Cockshutt, Ford, International, John Deere, Massey Ferguson, Minneapolis Moline, and Oliver. Includes 2 keys and is for AG and light industrial...
    Add to Cart
  • Allis-Chalmers Platinum Carburetor Kit for Allis Chalmers WD45 D17, includes various metal components and gaskets arranged on a surface.

    Platinum Carburetor Kit for Allis Chalmers WD45 D17

    Allis-Chalmers
    $62.75
    ACR7823
    Platinum Carburetor Kit for Allis Chalmers WD45 and D17 with Marvel Schebler carburetors.Includes repair components for the listed carburetor applications, with note to reuse the old choke shaft on...
    Add to Cart
  • A black steel roll pin for an Allis-Chalmers tractor steering wheel, shown diagonally on a white background.

    Allis Chalmers Steering Wheel Roll Pin for D14 D17 RC WC WD WD45 WF

    Allis-Chalmers
    $1.50
    A951
    Steering wheel roll pin for Allis Chalmers tractors.Part Number: A951FitsAllis Chalmers D14Allis Chalmers D17Allis Chalmers RCAllis Chalmers WCAllis Chalmers WDAllis Chalmers WD45Allis Chalmers...
    Add to Cart
  • A set of six metal oil pan gasket clips designed for Allis-Chalmers farm tractors, including models WC, WD, WD45, D17, 170, and 175.

    Allis-Chalmers Oil Pan Gasket Clips for WC WD WD45 D17 170 175

    Allis-Chalmers
    $9.95
    70229177
    Part Number: 70229177 Allis-Chalmers Oil Pan Gasket Clips Oil pan gasket clips for the listed Allis-Chalmers tractors. Sold as a set of 6. Fits Allis-Chalmers WC Allis-Chalmers WD Allis-Chalmers...
    Add to Cart
  • Allis-Chalmers 3-Position Light Switch AC-139D 70208197 208197, electronic switch with a black labeled button for lights.

    Allis-Chalmers 3-Position Light Switch AC-139D 70208197 208197

    Allis-Chalmers
    $39.75
    AC-139D
    Allis-Chalmers 3-Position Light SwitchPart Number: AC-139DUse this 3-position light switch for the listed tractor models and replacement numbers below. Switch manufacturers consider OFF as 1 position...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Steering Wheel WC WD WD45 D17

    Allis Chalmers D14 D17 WC WD WD45 Steering Wheel

    Allis-Chalmers
    $54.50
    AC-108D
    Allis Chalmers steering wheel for D14, D17, WC, WD, and WD45 models.Made of all new material with 3 steel spokes and an 18" diameter.Part Number: AC-108DFitsAllis Chalmers: D14 (Up to SN: 19000), D17...
    Add to Cart

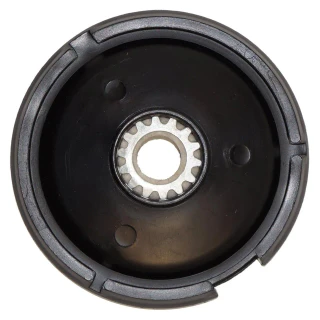

  • Allis-Chalmers Distributor Dust Cover with Felt Gasket and Washer - AB-186D

    Distributor Dust Cover with Felt Gasket and Washer AB-186D

    Allis-Chalmers
    $9.75
    AB-186D
    Distributor Dust Cover with Felt Gasket and WasherPart number: AB-186DColor: Black, like originalUse: For Delco Remy distributor applications with clip-style cap help / 70225734This distributor dust...
    Add to Cart
  • Flat brown PTO gearbox gasket for Allis-Chalmers WC, WF, WD, WD45, and RC farm tractors, with a large circular center opening, rectangular cutouts at the top and bottom, and six bolt holes.

    PTO Gear Box Gasket for Allis-Chalmers WC, WF, WD, WD45, RC

    Allis-Chalmers
    $7.75
    70227237
    PTO gear box mounting gasket for Allis-Chalmers tractors.Fits WC, WF, WD, WD45, WD45 Diesel, and RC models.Part Number: 70227237FitsAllis-Chalmers WCAllis-Chalmers WFAllis-Chalmers WDAllis-Chalmers...
    Add to Cart
  • Allis-Chalmers Cap used as radiator cap or fuel cap Allis Chalmers 70207244

    Allis-Chalmers Cap, Radiator or Fuel Cap 70207244

    Allis-Chalmers
    $25.75
    AC-172D
    Allis-Chalmers cap used as either a radiator cap or fuel cap, part number 70207244. OE style and appearance for original equipment applications.Important: This cap is for the original radiator only...
    Add to Cart
  • Allis-Chalmers Universal 2 Terminal Push Button Starter Switch and Ether Switch, close-up of the metal and black plastic switch with threaded metal base.

    Universal 2 Terminal Push Button Starter Switch and Ether Switch

    Allis-Chalmers
    $12.75
    AB-233D
    Universal 2 Terminal Push Button Starter Switch and Ether Switch with a heavy duty momentary push button design. It features a rubber cap for dust and moisture protection.Part Number:...
    Add to Cart
  • Circular pinion shaft axle oil seal for Allis-Chalmers WD, WD45, D17, 170, 175, 180, and 185 farm tractors, with a gold-tone metal outer casing and black rubber inner sealing lip.

    Allis-Chalmers WD WD45 D17 170 175 180 185 Pinion Shaft Axle Oil Seal

    Allis-Chalmers
    $15.65
    70218450
    Part Number: 70218450Allis-Chalmers Pinion Shaft Axle Oil SealPinion shaft axle oil seal for listed Allis-Chalmers tractors.FitsAllis Chalmers - WD, WD45, D17, 170, 175, 180, 185Replaces / Cross...
    Add to Cart
  • Allis-Chalmers front crankshaft seal, part number 70224929. Circular metal-rimmed seal with a dark brown inner sealing lip, shown against a white background.

    Allis-Chalmers Front Crankshaft Seal 70224929

    Allis-Chalmers
    $12.00
    70224929
    Part Number: 70224929 Overview Front crankshaft oil seal for the listed Allis-Chalmers tractor, crawler, backhoe and industrial applications. This seal measures 2.004 in. outside diameter, 1.500 in...
    Add to Cart
  • A set of five black spark plug wires with gold connectors designed for Allis-Chalmers farm tractors with electronic ignition, along with a single rubber boot insulator.

    Allis-Chalmers Spark Plug Wire Set for Electronic Ignition

    Allis-Chalmers
    $24.75
    AC-4304D
    Spark plug wire set for Allis-Chalmers models with electronic ignition.Part Number: AC-4304DFitsAllis-Chalmers BAllis-Chalmers IBAllis-Chalmers CAllis-Chalmers CAAllis-Chalmers RCAllis-Chalmers...
    Add to Cart
  • Allis-Chalmers Headlight Gasket (4-3/4") - IH-355D

    Headlight Gasket 4-3/4" for Allis-Chalmers and More

    Allis-Chalmers
    $4.00
    IH-355D
    4-3/4" headlight gasket for listed tractor models. Black rubber construction with staple, for use in a 4.5" light assembly.Part Number: IH-355DFitsAllis-Chalmers: B, C, CA, D10, D12, D14, D15 (up to...
