Allis Chalmers WD45 Tractor Parts

About the Allis-Chalmers WD45

The WD45 replaced the WD in 1953 and gave Allis-Chalmers a stronger four-plow row-crop tractor without losing the WD's live PTO and Snap-Coupler layout. Its 226-cubic-inch gas, tractor-fuel, or LP engine made it noticeably more powerful than the WD.

The WD45 was the first Allis-Chalmers tractor offered with power steering, which became available in 1956. A six-cylinder diesel was added after Allis-Chalmers acquired Buda, and the WD45 remained in production through 1957.

Serial Number Reference

Serial number locations: The tractor serial number is stamped at the left brake cover or the left rear of the axle housing. The gasoline engine serial number is on the left-hand side of the engine near the carburetor; diesel engine numbers are on the left-hand side of the diesel engine.

The table below shows the beginning tractor serial number for each Model WD45 year:



1953-1954
Model WD45 year Beginning serial number
1953 146,607
1954 160,386
1955-1956
Model WD45 year Beginning serial number
1955 190,993
1956 217,992
1957-1957
Model WD45 year Beginning serial number
1957 230,295

Total production: 90,382 Model WD45 tractors (83,536 gasoline and 6,509 diesel; the LP/tractor-fuel total is unknown).

Allis-Chalmers WD45 Paint Reference

For restoration planning, the Allis-Chalmers WD45 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers WD45 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Persian Orange 1

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers control rod adjuster pin, part number 70235812, shown horizontally on a white background. The silver cylindrical pin has a flanged end, a large cross-hole, and a dark threaded adjustment screw with a ridged knob.

    Pin, Control Rod Adjuster for Allis-Chalmers 70235812

    Allis-Chalmers
    $18.00
    70235812
    Pin, Control Rod Adjuster for Allis-Chalmers tractors and power units.Used for governor, choke, throttle control and as hydraulic hand control depending on tractor model.Part Number:...
    Add to Cart
  • Allis-Chalmers WD WD45 Brake Rod Return Spring, black coiled metal spring with hooks on both ends for brake system support.

    Allis-Chalmers WD WD45 Brake Rod Return Spring

    Allis-Chalmers
    $14.75
    AC-268D
    Part Number: AC-268DBrake Rod Return SpringThis brake rod return spring fits Allis-Chalmers WD and WD45 tractors. It measures 6-5/8" long and is sold individually.FitsAllis-Chalmers: WD, WD45Replaces...
    Add to Cart
  • Flat dark brown gasket for an Allis-Chalmers farm tractor water manifold to cylinder head, with a large rectangular center opening and one round bolt hole at each end.

    Water Manifold to Cylinder Head Gasket for Allis-Chalmers

    Allis-Chalmers
    $7.50
    70233218
    Water Manifold to Cylinder Head Gasket for Allis-Chalmers applications listed below.Part Number: 70233218FitsWD, WD45 (Gas, LP), WC, WF, D17, 170, 175AC Combine - E Combine, K SeriesAC Powerunit -...
    Add to Cart
  • A single long, black Allis-Chalmers tractor engine pushrod with a narrow cylindrical shaft and a wider rounded cap at one end, shown diagonally on a white background.

    Pushrod for Allis-Chalmers D17, WC, WD, WD45, WF, 170, 175

    Allis-Chalmers
    $29.75
    AC-2415D
    Pushrod sold individually for Allis-Chalmers D17, WC, WD, WD45, WF, 170, 175.Also used on Combines, Cotton Pickers, Motor Graders, Loaders, Speed Patrol, and Power Units listed below.Part Number:...
    Add to Cart
  • A circular metal-and-rubber shifter shaft seal for the lower PTO gear box on Allis-Chalmers WD and WD45 farm tractors, shown against a white background.

    Allis-Chalmers WD, WD45 Lower PTO Gear Box Shifter Shaft Seal

    Allis-Chalmers
    $22.95
    70224642
    Lower PTO Gear Box Shifter Shaft Seal for Allis-Chalmers WD and WD45.Part Number: 70224642FitsAllis-Chalmers WDAllis-Chalmers WD45Replaces / Cross Reference7022464222464270206785206785Specs0.750"...
    Add to Cart
  • Allis-Chalmers Universal Ammeter (Amp) Gauge (20-0-20)

    Universal Ammeter Gauge (20-0-20)

    Allis-Chalmers
    $19.75
    AB-016D
    Universal ammeter gauge with a 20-0-20 range and chrome bezel.Compatible with Allis-Chalmers, Case, Cockshutt, Ford, IH/Farmall, John Deere, Massey Ferguson, Massey Harris, MM, and Oliver...
    Add to Cart
  • Allis-Chalmers Marvel Schebler Economy Carburetor Repair Kit, set of gaskets, seals, screws, and components for Allis Chalmers WD45, D15, D17, 170, 175, 180, 185 models.

    Marvel Schebler Economy Carburetor Repair Kit Allis Chalmers WD45 D15 D17 170 175 180 185

    Allis-Chalmers
    $23.75
    FD-212D
    Marvel Schebler economy carburetor repair kit for the listed tractor applications.Fits listed Marvel Schebler carburetors. Kit contains needle and seat, float lever pin, choke and throttle shaft felt...
    Add to Cart
  • Black metal clevis pin for an Allis-Chalmers tractor starter switch, shown on a white background. It has a flat round head and a cross-hole near the opposite end.

    Clevis Pin For Starter Switch - Allis Chalmers

    Allis-Chalmers
    $0.75
    97245A215
    Clevis pin for starter switch use across the listed tractor models.Includes the stated dimensions and starter switch fitment note.Part Number: 97245A215FitsAllis Chalmers - B, C, CA, G, IB, RC, WC,...
    Add to Cart
  • Allis-Chalmers Universal Alternator Mounting Bracket Kit

    Universal Alternator Mounting Bracket Kit

    Allis-Chalmers
    $44.75
    AB-404D
    Universal alternator mounting bracket kit for switching from a generator to an alternator. May have to be drilled or modified for your application.Part Number: AB-404DFitsAllis...
    Add to Cart

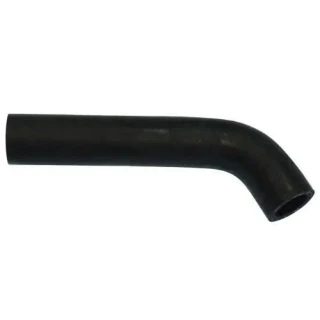

  • Black rubber water by-pass hose with a long straight section and a curved end, for an Allis-Chalmers WD45 farm tractor.

    Water By-Pass Hose for Allis-Chalmers WD45

    Allis-Chalmers
    $14.95
    70227018
    Water by-pass hose for Allis-Chalmers WD45 tractors. Listed with original part number 70227018 and short number 227018.Part Number: 70227018FitsAllis-Chalmers WD45Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Plastic Knob 70242338, black plastic replacement knob with mounting holes.

    Plastic Knob 70242338

    Allis-Chalmers
    $5.95
    AB-362D
    Plastic knob with the listed tractor applications, size, and cross references below.Part Number: AB-362DFitsAllis Chalmers 190XT (Series III up to SN: 14186 PTO without clutch, throttle lever...
    Add to Cart
  • Allis-Chalmers Marvel Schebler Carburetor Float, a yellow metal float with metal welds and a U-shape design.

    Marvel Schebler Carburetor Float

    Allis-Chalmers
    $21.75
    AB-037D
    New Marvel Schebler carburetor float for large bowl Marvel Schebler carburetors. Confirm the carburetor manufacturer number before ordering. Part Number: AB-037DFits Allis-Chalmers: WD45, D15,...
    Add to Cart
  • Bright orange Allis-Chalmers farm tractor steering wheel spinner knob with silver mounting brackets, bolts, and nuts arranged on a white background.

    Orange Steering Wheel Spinner Knob

    Allis-Chalmers
    $13.50
    WSV125OR
    Weather-resistant orange steering wheel spinner knob with a sealed ball bearing. Includes a vinyl-coated aluminum knob and 2 brackets for regular and deep spoked wheels.Part Number: WSV125ORFitsAllis...
    Add to Cart

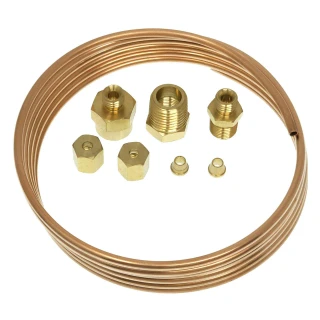

  • Allis-Chalmers Oil Pressure Gauge Copper Line Kit

    Oil Pressure Gauge Copper Line Kit

    Allis-Chalmers
    $29.75
    AB-523D
    Oil pressure gauge copper line kit for the applications listed below. Includes 6 FT of 1/8" copper line and the fittings listed in the kit contents.Part Number: AB-523DFitsAllis...
    Add to Cart
  • Two silver-gray halves of a standard connecting rod bearing for Allis-Chalmers farm tractors, shown separated and curved into open semicircles.

    Standard Connecting Rod Bearing for Allis-Chalmers D17, WD, WD45, 170, 175, WC, WF

    Allis-Chalmers
    $14.25
    AC-2490D
    Standard connecting rod bearing for Allis-Chalmers applications listed below. Sold per journal.Part Number: AC-2490DFitsAllis Chalmers D17, WD, WD45, 170, 175 (gas, LP with G201, G226 engines)Allis...
    Add to Cart
  • A headlight assembly designed for Allis-Chalmers WD, WD45, WC farm tractors, featuring a round, clear lens and a black mounting frame, with a wiring cord attached, intended for 12 Volt electrical systems.

    Allis-Chalmers WD WD45 WC 12 Volt Headlight Assembly

    Allis-Chalmers
    $57.75
    AC-150V12
    12 volt headlight assembly with a 4-3/4" diameter curved lens.Part Number: AC-150V12FitsAllis Chalmers - WD, WD45, RC, WC, WFCase - VA, VAC, VAH (up to sn 5400000)Cockshutt - 550, 560, 570Massey...
    Add to Cart
  • An image of a black rubber valve cover gasket with four small round sealing washers placed on top of it, designed for Allis-Chalmers farm tractors.

    Allis Chalmers Valve Cover Gasket NBR Rubber

    Allis-Chalmers
    $27.75
    AC-315RD
    NBR / rubber valve cover gasket for select Allis Chalmers gas / LP applications.Part Number: AC-315RDFitsAllis Chalmers WCAllis Chalmers WDAllis Chalmers WFAllis Chalmers WD45Allis Chalmers D17Allis...
    Add to Cart
  • A brown gasket, shaped like an elongated oval with six small holes evenly spaced around the perimeter, designed for Allis-Chalmers WD and WD45 farm tractors.

    Transmission Clutch Cover Gasket for Allis-Chalmers WD and WD45

    Allis-Chalmers
    $22.75
    70222535
    Cork Transmission Clutch Cover Gasket for Allis-Chalmers WD and WD45 tractors. New part.Part Number: 70222535FitsAllis Chalmers - WD WD45, WD45 DieselReplaces / Cross Reference70222535222535NotesTop...
    Add to Cart
