Allis Chalmers D10 Tractor Parts

Allis-Chalmers D10 tractor in a field

About the Allis-Chalmers D10

The Allis-Chalmers D10 was introduced in 1959 as one of the smaller tractors in the D Series. It followed the Model B and gave smaller farms a newer row-crop tractor with more power, a four-speed transmission, and an adjustable front axle.

Early D10 tractors used a 138.7-cubic-inch four-cylinder gasoline engine. The larger 149-cubic-inch engine was introduced at serial number 3501. The D10 went through Series I, II, and III updates and remained in production through 1968.

Serial Number Reference

Serial number locations: The tractor serial number is stamped into the flange where the engine and transmission meet on the left side of the tractor. On earlier D10 models, the engine serial number is on the rear left-hand side of the engine block behind the carburetor. On Series III models, it is on the rear left-hand flange of the engine block.

The table below shows the beginning tractor serial number for each Model D10 year and series:



1959-1961
Model D10 year Beginning serial number
1959 - Series I 1,001
1960 - Series I 1,950
1961 - Series I 2,801
1962-1964
Model D10 year Beginning serial number
1962 - Series I 4,511
1963 - Series II 6,801
1964 - Series II 7,675
1964 - Series III 9,001
1965-1968
Model D10 year Beginning serial number
1965 - Series III 9,204
1966 - Series III 9,486
1967 - Series III 9,795
1968 - Series III 9,979

Total production: 9,100 Model D10 tractors.

The final D10 serial number was 10,100.

Allis-Chalmers D10 Paint Reference

For restoration planning, the Allis-Chalmers D10 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers D10 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Aluminum with Black trim grille
1961 through 1977 Persian Orange 2 Cream, Persian Orange 2 Cream, Aluminum Persian Orange 2 Cream grille

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • A valve train kit for Allis-Chalmers D10, D12, D15 farm tractors, including valves, springs, and other engine components.

    Allis Chalmers D10 D12 D15 Valve Train Kit

    Allis-Chalmers
    $210.00
    VTK174
    Allis Chalmers D10 D12 D15 Valve Train Kit Kit for listed Allis Chalmers D10, D12, and D15 Gas/LP applications. Part Number: VTK174 Fits D10 (Serial No. 3501 & up) D12 (Serial No. 3001 & up) D15...
    Add to Cart
  • Allis-Chalmers Front Wheel Clamp Lock Nut for Allis-Chalmers, Avery, Case, Ford, John Deere, Massey Ferguson, showing a metal locking nut with internal gear teeth and a small metal pin.

    Front Wheel Clamp Lock Nut for Allis-Chalmers, Avery, Case, Ford, John Deere, Massey Ferguson

    Allis-Chalmers
    $24.25
    AB-254D
    Front wheel clamp lock nut for Allis-Chalmers and other listed tractor models.Check thread size before ordering. For axle shaft and front wheel applications with 3/4" - 16 NF thread. No re-threading...
    Add to Cart
  • Allis-Chalmers Drawbar Guide / Craddle - Allis Chalmers CA, D10, D12 - Ki1107 70226658

    Allis-Chalmers CA, D10, D12 Drawbar Guide / Craddle

    Allis-Chalmers
    $157.50
    Ki1107
    Drawbar Guide / Craddle for Allis-Chalmers CA, D10, and D12 tractors.New part comes primered.Part Number: Ki1107FitsAllis-Chalmers CAAllis-Chalmers D10Allis-Chalmers D12Replaces / Cross...
    Add to Cart
  • AGCO Allis Chalmers Timing Gear Cover Gasket, black rubber gasket with multiple holes for fitting, part number 70277268.

    Allis Chalmers Timing Gear Cover Gasket | 70277268

    AGCO
    $13.75
    70277268
    Allis Chalmers Timing Gear Cover GasketPart Number: 70277268FitsAllis Chalmers D10Allis Chalmers D12Allis Chalmers D14Allis Chalmers D15Replaces / Cross Reference70277268277268NotesCondition: New.
    Add to Cart
  • Allis-Chalmers Crankshaft for Allis-Chalmers D10 D12 D14 D15 H3, engine crankshaft component for tractor engines.

    Crankshaft for Allis-Chalmers D10 D12 D14 D15 H3

    Allis-Chalmers
    $599.00
    AC-073D
    Crankshaft for Allis-Chalmers D10, D12, D14, D15 gas, H3, and listed forklift models using 138, 149 or 160 cubic inch engines.For bearings see AC-1954D and AC-1952D.Part Number: AC-073DFitsAllis...
    Add to Cart
  • Allis-Chalmers Tire 5.50 x 16 Triple Rib 6 Ply for Allis-Chalmers, black tire with triple rib tread pattern, designed for durable performance on agricultural equipment.

    Tire 5.50 x 16 Triple Rib 6 Ply for Allis-Chalmers

    Allis-Chalmers
    $104.75
    WH-047D
    Triple rib 6 ply tire sized 5.50 x 16. Fitment is listed for Allis-Chalmers and several other tractor brands.Part Number: WH-047DFitsAllis ChalmersAveryCaseCockshuttFordIH / FarmallJohn DeereMassey...
    Add to Cart
  • Allis-Chalmers Lower Generator Bracket B C CA D10 D12 D14, black metal engine part for tractor generator support.

    Allis Chalmers Lower Generator Bracket B C CA D10 D12 D14

    Allis-Chalmers
    $19.50
    AC-1913D
    Lower generator bracket for select Allis Chalmers tractors and the W226 power unit. Made in the USA with a bare finish.Part Number: AC-1913DFitsBCCAD10 up to SN 3500D12 up to SN 3000D14W226 Power...
    Add to Cart
  • Image showing a set of piston rings arranged in four columns, likely part of a piston ring set for Allis-Chalmers farm tractors, specifically models D10, D12, D14, D15.

    Allis Chalmers Piston Ring Set D10 D12 D14 D15

    Allis-Chalmers
    $155.00
    70230092
    Allis Chalmers Piston Ring SetPiston ring set for Allis Chalmers 4-cylinder gas engines in the listed tractor models. Fits prior to S/N 9001.Part Number: 70230092FitsAllis Chalmers D10 prior to S/N...
    Add to Cart
  • A metal bracket designed for Allis-Chalmers D17 farm tractor, used as a work light or taillight bracket, with a curved shape and a slot for mounting.

    Allis Chalmers Work Light / Taillight Bracket for D17

    Allis-Chalmers
    $75.00
    DJS1211
    Part Number: DJS1211 Allis Chalmers Work Light / Taillight Bracket Bracket for the Allis Chalmers D17 Series I, II, and III. It can also be added to any D Series seat frame for use with Combo Light...
    Add to Cart
  • A manual titled 'Operating Instructions & Parts Illustrations for Model D-10 and D-12 Tractors' by Allis-Chalmers, with an image of a tractor on the cover. The manual is orange with black text and a spiral binding.

    Allis-Chalmers D10 D12 Operating Instructions and Parts Illustrations Manual

    Allis-Chalmers
    $39.75
    MAN1012
    Allis-Chalmers D10 and D12 operating instructions and parts illustrations manual. Reprint. New condition.Part Number: MAN1012FitsAllis Chalmers D10 3501 & upAllis Chalmers D12 3001 & upSpecs108...
    Add to Cart
  • Allis-Chalmers Raincap 2 1/2" - 2 11/16" I.D., metallic raincap with mounting bracket and hinges.

    Allis-Chalmers Raincap 2 1/2" - 2 11/16" I.D.

    Allis-Chalmers
    $11.25
    ACR1802
    Raincap with 2 1/2" - 2 11/16" I.D. Listed for select Allis-Chalmers and other tractor brands below.Part Number: ACR1802FitsAllis ChalmersCaseCockshutt: CO-OP E4, E5Cockshutt 40, 50, 560, 570 GOLDEN...
    Add to Cart
  • Allis-Chalmers D10 D12 D14 Air Cleaner Clamp, blue metal engine air filter clamp with a screw and hook design.

    Allis Chalmers D10 D12 D14 Air Cleaner Clamp

    Allis-Chalmers
    $11.75
    FD-081D
    Air cleaner clamp for Allis Chalmers D10, D12 and D14 applications, with listed fits across Case, Ford, IH/Farmall, John Deere, Massey Ferguson, Massey Harris, MM, and Oliver.Use with Donaldson air...
    Add to Cart
  • Allis-Chalmers D10 D12 Retractable Drawbar for 3 Point Hitch, a metal component with holes for attachment, designed for farm tractor use.

    Allis-Chalmers D10 D12 Retractable Drawbar for 3 Point Hitch

    Allis-Chalmers
    $265.00
    70236371
    Retractable Drawbar for 3 Point Hitch for listed Allis-Chalmers models.Overall length is 33".Part Number: 70236371FitsAllis Chalmers - D10 (SN 3501 & up), D12 (SN 3001 & up)Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Alternator Pulley 2-3/8" OD 3/8" belt

    Alternator Pulley 2-3/8 in. OD, 3/8 in. Belt

    Allis-Chalmers
    $16.00
    AB-418P
    Alternator pulley for Allis Chalmers models with a fixed pulley water pump.Part Number: AB-418PFitsAllis Chalmers - D10, D12, D15, H3, I40, I400, I60, I600Specs.670" shaft diameter2-3/8" pulley...
    Add to Cart
  • Heavy Duty 4 Button 9" Spring Loaded Clutch Disc for Allis-Chalmers farm tractors, specifically for models B, C, CA, D10, D12, D14, D15.

    Heavy Duty 4 Button 9" Spring Loaded Clutch Disc for Allis-Chalmers B, C, CA, D10, D12, D14, D15

    Allis-Chalmers
    $220.75
    70253187
    Heavy Duty 4 Button 9" Spring Loaded Clutch DiscFor Allis-Chalmers models listed below. Includes a 10 spline, 1-1/8" spline diameter.Part Number: 70253187FitsAllis Chalmers - B, IB, C, CA, D10, D12,...
    Add to Cart
  • Allis-Chalmers PTO Over-Running Clutch, heavy-duty agricultural machinery part with mounting and release mechanism.

    PTO Over-Running Clutch

    Allis-Chalmers
    $70.75
    MI-118D
    PTO over-running clutch - MI-118D for the listed tractor brands.Tractors up to 75 horsepower.Part Number: MI-118DFitsAllis ChalmersAveryCaseCockshuttFordIH / FarmallJohn DeereMassey FergusonMassey...
    Add to Cart

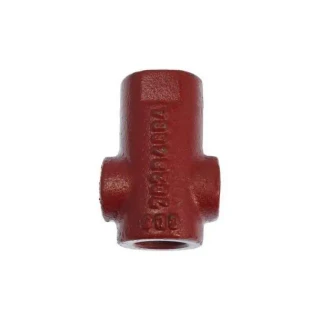

  • A red Trunnion Lift Rod for Allis-Chalmers D10, D12, D15 farm tractors, designed specifically for agricultural use, not automobiles.

    Trunnion Lift Rod for Allis-Chalmers D10, D12, D15

    Allis-Chalmers
    $24.75
    70234884
    Part Number: 70234884Trunnion Lift RodFor Allis-Chalmers D10, D12, and D15. Requires 2 per tractor. New condition.FitsAllis-Chalmers D10Allis-Chalmers D12Allis-Chalmers D15Replaces / Cross...
    Add to Cart
  • Allis-Chalmers D10 D12 Hood with Oval Hole, tractor hood replacement for Allis-Chalmers D series models.

    Allis Chalmers D10 D12 Hood with Oval Hole

    Allis-Chalmers
    $465.00
    DJS1012-O
    Hood with oval hole for Allis Chalmers tractors.Sold under part number DJS1012-O.Part Number: DJS1012-OFitsAllis Chalmers D10Allis Chalmers D12 Series IAllis Chalmers D12 Series IIAllis Chalmers D12...
    Add to Cart
