Allis Chalmers WD45 Tractor Parts

About the Allis-Chalmers WD45

The WD45 replaced the WD in 1953 and gave Allis-Chalmers a stronger four-plow row-crop tractor without losing the WD's live PTO and Snap-Coupler layout. Its 226-cubic-inch gas, tractor-fuel, or LP engine made it noticeably more powerful than the WD.

The WD45 was the first Allis-Chalmers tractor offered with power steering, which became available in 1956. A six-cylinder diesel was added after Allis-Chalmers acquired Buda, and the WD45 remained in production through 1957.

Serial Number Reference

Serial number locations: The tractor serial number is stamped at the left brake cover or the left rear of the axle housing. The gasoline engine serial number is on the left-hand side of the engine near the carburetor; diesel engine numbers are on the left-hand side of the diesel engine.

The table below shows the beginning tractor serial number for each Model WD45 year:



1953-1954
Model WD45 year Beginning serial number
1953 146,607
1954 160,386
1955-1956
Model WD45 year Beginning serial number
1955 190,993
1956 217,992
1957-1957
Model WD45 year Beginning serial number
1957 230,295

Total production: 90,382 Model WD45 tractors (83,536 gasoline and 6,509 diesel; the LP/tractor-fuel total is unknown).

Allis-Chalmers WD45 Paint Reference

For restoration planning, the Allis-Chalmers WD45 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers WD45 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1929 through 1960 Persian Orange 1 Persian Orange 1 Persian Orange 1, Aluminum Persian Orange 1 Persian Orange 1

Paint placement can vary by production year, series, and equipment configuration.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Battery Cable 24-inch Non-Insulated AB-403D, with metal ends and braided wire construction.

    Battery Cable 24" Non-Insulated AB-403D

    Allis-Chalmers
    $24.75
    AB-403D
    Battery Cable24" non-insulated 2 gauge ground cable with heavy-duty straight terminals and a 7/16" eyelet opening.FitsAllis Chalmers - variousCase - variousCockshutt - variousFord -...
    Add to Cart
  • Round gray heavy-duty clutch pressure plate for an Allis-Chalmers WD45, WC, WD, WF, or D Grader tractor, shown from above with three release levers and a ring of spring housings.

    Heavy Duty Clutch Pressure Plate for Allis-Chalmers WD45, WC, WD, WF, D Grader

    Allis-Chalmers
    $398.50
    AC-2982D
    Heavy duty clutch pressure plate for Allis-Chalmers WD45, WC, WD, WF, and D Grader applications.Fits the listed models and includes a 10" O.D. and 9 springs.Part Number: AC-2982DFitsAllis-Chalmers...
    Add to Cart
  • Allis-Chalmers four-cylinder tractor piston ring set arranged in overlapping groups, with black, silver, and segmented rings. Labeled for D17, D270, WC, WD, WD45, WF, 170, and 175 farm tractors; image marked “For illustrative purposes only.”

    Allis-Chalmers Piston Ring Set 4-Cylinder D17, D270, WC, WD, WD45, WF, 170, 175

    Allis-Chalmers
    $139.75
    AB-2076D
    Part Number: AB-2076DAllis-Chalmers Piston Ring SetFor select Allis-Chalmers 4-cylinder applications with 4" bore. Includes (3) 0.125" compression rings and (1) 0.250" oil ring for the listed models...
    Add to Cart
  • A black metal choke rod extension designed for Allis-Chalmers WD and WD45 tractors, used to extend the choke lever.

    Choke Rod Extension for Allis Chalmers WD WD45

    Allis-Chalmers
    $18.50
    70223246
    Part Number: 70223246Choke Rod ExtensionReproduction choke rod extension for the listed Allis Chalmers models below. Measures 26 3/8 inches long.FitsAllis Chalmers WD Gas & LPAllis Chalmers WD45 Gas...
    Add to Cart
  • Allis-Chalmers Voltage Regulator Conversion Kit for Allis-Chalmers, black electrical wiring with a grounding clip and a brown plastic component.

    Voltage Regulator Conversion Kit for Allis-Chalmers

    Allis-Chalmers
    $54.75
    AB-188D
    Voltage regulator conversion kit for selected tractors and generators. Use with AB-153D voltage regulator when replacing Delco Remy cutouts listed below.Part Number: AB-188DFitsAllis Chalmers - B, C,...
    Add to Cart
  • Allis-Chalmers WD WD45 PTO Shaft to Gearbox Coupling Sleeve, black cylindrical metal coupling with holes for attachment.

    Allis Chalmers WD WD45 PTO Shaft to Gearbox Coupling Sleeve

    Allis-Chalmers
    $52.00
    Ki1281
    Allis Chalmers WD, WD45, WD45 (Diesel) PTO coupling sleeve weld on in field, PTO shaft to gear box. Part Number: Ki1281Fits WD WD45 WD45 (Diesel) Replaces / Cross Reference 70218386 218386
    Add to Cart

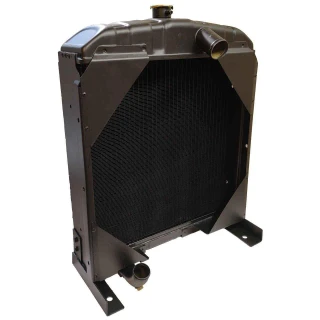

  • Black pressurized radiator for an Allis-Chalmers WD45 diesel farm tractor, shown upright with a large finned core, top filler cap, upper hose outlet, lower outlet, and mounting brackets.

    Allis Chalmers WD45 Diesel Radiator (Pressurized)

    Allis-Chalmers
    $1,103.00
    70227166
    Allis Chalmers WD45 Diesel pressurized radiator built to precise dimensional specifications for fit.Part Number: 70227166Replaces / Cross Reference70227166227166SpecsStamped brass tank100% leak...
    Add to Cart
  • Allis-Chalmers Battery Cable 10-1/2 inch Insulated AB-407D, with metal clamps and black insulated wire for connecting battery terminals.

    Battery Cable 10-1/2" Insulated AB-407D

    Allis-Chalmers
    $17.00
    AB-407D
    Battery Cable 10-1/2" InsulatedHeavy-duty insulated battery cable with straight terminals. This 10-1/2" cable is 2 gauge with a 3/8" eyelet opening.FitsAllis...
    Add to Cart
  • Allis-Chalmers CA D10 D12 D14 D15 D17 WD WD45 Drawbar Clamp, metal rectangular bracket with two circular holes for mounting.

    Allis Chalmers CA D10 D12 D14 D15 D17 WD WD45 Drawbar Clamp

    Allis-Chalmers
    $28.00
    70224650
    Part Number: 70224650Drawbar ClampFor Allis-Chalmers CA, D10, D12, D14, D15, D17, WD, WD45, WC, and WF models. New condition.FitsAllis-Chalmers CAAllis-Chalmers D10Allis-Chalmers D12Allis-Chalmers...
    Add to Cart
  • Allis-Chalmers Hand Clutch Lever Rod Pin for WD, WD45, metal cylindrical component with hole at one end.

    Allis Chalmers Hand Clutch Lever Rod Pin for WD, WD45

    Allis-Chalmers
    $18.00
    70223130
    Part Number: 70223130Allis Chalmers Hand Clutch Lever Rod PinReplacement for worn hand clutch lever rod pin on Allis-Chalmers WD and WD45 tractors.FitsAllis Chalmers WDAllis Chalmers WD45Replaces /...
    Add to Cart
  • Allis-Chalmers Char-Lynn Power Steering Owners Manual, yellow spiral-bound technical manual with black printed text and logo.

    Char-Lynn Power Steering Owners Manual

    Allis-Chalmers
    $20.00
    MAN2643D
    Char-Lynn Power Steering Owners Manual This manual covers installation, operation, maintenance, and troubleshooting for both the pump and torque generator. Part Number: MAN2643DNotes Comprehensive...
    Add to Cart
  • Allis-Chalmers Delco Distributor 1111411, automotive electrical equipment for Allis Chalmers B, C, CA, D14, RC, WC, WD, WD45, WF tractors, front view of the black distributor with metal parts and mounting details.

    Delco Distributor 1111411 for Allis Chalmers B C CA D14 RC WC WD WD45 WF

    Allis-Chalmers
    $299.75
    AC-6213D
    Delco Distributor 1111411Distributor for the listed Allis Chalmers, IH/Farmall, and Case applications.Part Number: AC-6213DFitsAllis Chalmers - B, IB, C, CA, D14 (up to SN 19000), RC, WC, WD, WD45,...
    Add to Cart
  • Gray rectangular metal battery box lid for an Allis-Chalmers WD or WD45 diesel farm tractor, with four corner mounting holes and two raised tabs.

    Allis Chalmers WD / WD45 Diesel Battery Box Lid

    Allis-Chalmers
    $45.00
    DJS45DL
    Battery box lid for Allis Chalmers WD / WD45 Diesel tractors.Use this lid to cover the battery box on the specified model.Part Number: DJS45DLFitsAllis Chalmers WD / WD45 Diesel
    Add to Cart
  • Image of a crankshaft for Allis-Chalmers WD45 farm tractor.

    Allis Chalmers WD45 Crankshaft

    Allis-Chalmers
    $598.75
    AC-074D
    New crankshaft for Allis Chalmers WD45 Gas and LP models.Part Number: AC-074DFitsAllis Chalmers WD45 GasAllis Chalmers WD45 LPReplaces / Cross Reference7022653570226533226535SpecsNew Std/Std...
    Add to Cart
  • Allis-Chalmers WD45 Diesel Hood, a metal engine cover with circular cutouts, black finish, designed for the vintage tractor model.

    Allis-Chalmers WD45 Diesel Hood

    Allis-Chalmers
    $645.00
    Ki1055
    Replacement hood for Allis-Chalmers WD45 Diesel tractors. This sheet metal hood is listed with the original Allis-Chalmers reference numbers below.Part Number: Ki1055FitsAllis-Chalmers WD45...
    Add to Cart
  • Allis-Chalmers 11 X 28 REAR SPINOUT RIM (Power Shift) - AC-028D

    Allis-Chalmers Rear Spinout Rim 11 x 28

    Allis-Chalmers
    $699.00
    AC-028D
    Rear spinout rim (Power Shift), 11 x 28. 4 rails with stop adjustment holes drilled 90 degrees perpendicular to the side of the rim. USA made.To determine rim width, measure on the inside from bead...
    Add to Cart
  • Allis-Chalmers Snap Coupler Latch Spring Oversized Loops 70235881, a metallic coil spring with large loops and eyelets at both ends for agricultural equipment.

    Allis-Chalmers Snap Coupler Latch Spring Oversized Loops 70235881

    Allis-Chalmers
    $8.75
    AC-269S
    Allis Chalmers snap coupler latch spring for the models listed below. Oversized end loops slip over the existing rivets for fast, hassle‑free installation—no need to pull the old rivets. 3-1/4"...
    Add to Cart
