Allis Chalmers D17 Tractor Parts

About the Allis-Chalmers D17

Introduced in 1957, the D17 moved the D Series into the larger row-crop tractor class. It used the Power Director transmission and live PTO, so the operator could shift between ranges with a hand lever while keeping PTO-driven equipment running.

The D17 was built through 1967 in Series I, Series II, Series III, and Series IV versions. Gasoline, LP-gas, and diesel engines were offered during the production run, and the serial number table shows where each series begins.

Serial Number Reference

Serial number locations: The tractor serial number is stamped on the left-front end of the torque housing. The gasoline engine serial number is on the rear left-hand side of the engine block behind the carburetor; diesel engine numbers are on the top left-hand side of the engine block.

The table below shows the beginning tractor serial number for each Model D17 year and series:



1957-1960
Model D17 year Beginning serial number
1957 - Series I 1,001
1958 - Series I 4,300
1959 - Series I 16,500
1960 - Series I 28,200
1960 - Series II 32,001
1961-1964
Model D17 year Beginning serial number
1961 - Series II 33,100
1962 - Series II 38,070
1962 - Series III 42,001
1963 - Series III 65,001
1964 - Series III 70,611
1964-1967
Model D17 year Beginning serial number
1964 - Series IV 75,001
1965 - Series IV 77,090
1966 - Series IV 80,533
1967 - Series IV 86,061

Total production: 84,914 Model D17 tractors (51,598 gas and 12,284 diesel; LP-gas production is unknown).

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Allis Chalmers Sediment Bowl Assembly D15 D17 D19 D21 WD WD45 170 175 180 190 190XT 70237946

    Allis Chalmers Sediment Bowl Assembly D15 D17 D19 D21 WD WD45 170 175 180 190 190XT

    Allis-Chalmers
    $34.75
    ACR2406
    Allis Chalmers sediment bowl assembly for the listed tractor models and applications below.Part Number: ACR2406Fits190XT, 190 (Gas, Dsl. Using 2.315 Long Glass Bowl)D15 (Gas (SN: 9001 & up) & All...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Amp Gauge (60-0-60) 12 Volt

    Allis Chalmers Amp Gauge (60-0-60) 12 Volt

    Allis-Chalmers
    $29.75
    AC-1833D
    12 volt Allis Chalmers amp gauge with a 60-0-60 scale and the Allis Chalmers logo.Part Number: AC-1833DFitsAllis Chalmers - Various (Any tractors that have been converted to 12 volt system)Specs12...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - Black 1 inch, a black webbing roll used for securing fuel tanks, priced per foot.

    Fuel Tank Webbing - Black 1" - Price Per Foot

    Allis-Chalmers
    $2.35
    3510T82
    Black fuel tank webbing for tractors using webbed insulation between fuel tank mounts and other sheet metal parts.Part Number: 3510T82FitsAllis-ChalmersCaseWhite /OliverCockshutFordInternational /...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - Tan 1-1/2 inch, priced per foot, shown as a roll of tan webbing material for fuel tanks.

    Fuel Tank Webbing - Tan 1-1/2" - Price Per Foot

    Allis-Chalmers
    $4.35
    3531T52
    Tan fuel tank webbing for tractors using webbed insulation between fuel tank mounts and sheet metal parts.Part Number: 3531T52FitsAllis-ChalmersCaseWhite /OliverCockshutFordInternational /...
    Add to Cart
  • Allis-Chalmers Allis Chalmers D Series Hydraulic Position Control Vinyl Decal, close-up image of the decal with detailed text and markings.

    Allis Chalmers D Series Hydraulic Position Control Vinyl Decal

    Allis-Chalmers
    $11.00
    DJS2496
    Hydraulic position control vinyl decal for listed Allis Chalmers D Series models.Part Number: DJS2496FitsAllis Chalmers D10Allis Chalmers D12Allis Chalmers D14Allis Chalmers D15Allis Chalmers...
    Add to Cart
  • Allis-Chalmers Unpainted Emblem Steering Wheel Front Nose Allis Chalmers ED40 D10 D12 D14 D15 D17 D19 D21

    Allis Chalmers ED40 D10 D12 D14 D15 D17 D19 D21 Steering Wheel Front Nose Emblem

    Allis-Chalmers
    $19.50
    ACR3996
    Unpainted steering wheel front nose emblem for listed Allis Chalmers applications.Part Number: ACR3996FitsAllis Chalmers ED40Allis Chalmers D10Allis Chalmers D12 (SN # 19001 and Up)Allis Chalmers...
    Add to Cart
  • Allis-Chalmers Water By-Pass Hose Allis Chalmers D17 170 175 70229341

    Allis Chalmers D17 170 175 Water By-Pass Hose | 70229341

    Allis-Chalmers
    $14.75
    70229341
    Water By-Pass Hose for Allis Chalmers D17, 170, and 175Use this hose for the listed Allis Chalmers models.Part Number: 70229341FitsD17170175Replaces / Cross Reference70229341
    Add to Cart
  • Allis-Chalmers D17 WD45 170 175 Thermostat Housing Bypass, metal engine part for tractor cooling system.

    Allis Chalmers D17 WD45 170 175 Thermostat Housing Bypass

    Allis-Chalmers
    $69.75
    AC-1214D
    Thermostat housing bypass for listed Allis Chalmers tractor, combine, and power unit applications.New part with the replacement and housing numbers preserved below.Part Number: AC-1214DFitsAllis...
    Add to Cart
  • Allis-Chalmers Allis Chalmers D17 Brake Drum 170 175 180 185 70237418

    Allis Chalmers D17 170 175 180 185 Brake Drum 70237418

    Allis-Chalmers
    $129.75
    70237418
    Brake drum for Allis Chalmers D17, 170, 175, 180, and 185.Part Number: 70237418FitsAllis Chalmers D17Allis Chalmers 170Allis Chalmers 175Allis Chalmers 180Allis Chalmers 185Replaces / Cross...
    Add to Cart

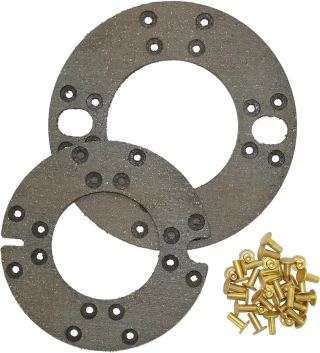

  • Allis-Chalmers Allis Chalmers Brake Lining Kit For Disk Brakes D15 D17 I II III, 170 175 180 185 70276914 70237421

    Allis Chalmers Brake Lining Kit For Disk Brakes D15 D17 170 175 180 185

    Allis-Chalmers
    $39.75
    ACR2835
    Brake lining kit for disk brakes on listed Allis Chalmers models.Part Number: ACR2835FitsAllis Chalmers - D15, D17, 170, 175, 180, 185Replaces / Cross Reference70276914, 70237421, 237421,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers WD, WD45, D17 - Stainless Steel Brake Anchor Shoe Pin (Set of 2) - Ki1047SS

    Allis Chalmers WD, WD45, D17 Stainless Steel Brake Anchor Shoe Pin Set of 2

    Allis-Chalmers
    $58.50
    Ki1047SS
    Stainless steel brake anchor shoe pins for Allis Chalmers WD, WD45, and D17 up to sn 42000.Sold as a set of 2 and made in the USA.Part Number: Ki1047SSFitsAllis Chalmers WDAllis Chalmers WD45Allis...
    Add to Cart
  • Allis-Chalmers Front Spindle Bushing Allis Chalmers 70211743

    Allis Chalmers Front Spindle Bushing 70211743

    Allis-Chalmers
    $14.25
    70211743
    Front spindle bushing for Allis Chalmers applications listed below.Part Number: 70211743FitsWDWD45D10D12 High CropD14D15D17D19170175180185190190XT200Notes4 used per tractorSold individually<
    Add to Cart
  • Allis-Chalmers Brake Disk Ball, a shiny, reflective metallic spherical component used in brake systems for heavy machinery.

    Brake Disk Ball

    Allis-Chalmers
    $4.00
    BDB100
    Brake disk ball for multiple tractor applications.Part Number: BDB100FitsAllis Chalmers - 190XT, D19, D21, 170, 175, 180, 185, 190, 200 (4 used per side), D17 (SN: 75001 and up; 4 used per side),...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Snap Coupler Bell Hook Spring | 70226514

    Allis-Chalmers Snap Coupler Bell Hook Spring 70226514

    Allis-Chalmers
    $18.75
    70226514
    Allis-Chalmers snap coupler bell hook spring for the listed tractors with quick hitch system.Use the fitment information below to confirm application.Part Number: 70226514FitsAllis-Chalmers...
    Add to Cart
  • Allis-Chalmers Hood Latch Snap Latch Allis Chalmers D10 D12 D14 D15 D17 D19 D21

    Hood Latch Snap Latch for Allis Chalmers D10 D12 D14 D15 D17 D19 D21

    Allis-Chalmers
    $12.00
    CH4000
    Part Number: CH4000Hood Latch Snap LatchHood latch snap latch for select Allis Chalmers tractors, bale throwers, balers, and some Gleaner combines. Strike not included.FitsALLIS CHALMERS - D10, D12,...
    Add to Cart
  • Allis-Chalmers Air Cleaner Tube Coupling Hose Allis Chalmers D17 70230642

    Air Cleaner Tube Coupling Hose for Allis Chalmers D17

    Allis-Chalmers
    $16.50
    70230642
    Part Number: 70230642Air Cleaner Tube Coupling Hose for Allis Chalmers D17Air cleaner tube coupling hose for select Allis Chalmers applications. 2 required per tractor and sold individually.FitsAllis...
    Add to Cart
  • Allis-Chalmers Hood Latch With Loop Snap Latch Allis Chalmers D10 D12 D14 D15 D17 D19 D21

    Allis Chalmers D10 D12 D14 D15 D17 D19 D21 Hood Latch

    Allis-Chalmers
    $12.00
    CH4009
    Part Number: CH4009Allis Chalmers Hood LatchLoop-style snap hood latch for the Allis Chalmers tractors and Gleaner combines listed below.FitsAllis Chalmers D10Allis Chalmers D12Allis Chalmers...
    Add to Cart
  • Allis-Chalmers Front Wheel Bearing Kit, set including bearings and seals for Allis Chalmers D10, D12, D15, D17 models, part number 70247801.

    Front Wheel Bearing Kit Allis Chalmers D10 D12 D15 D17

    Allis-Chalmers
    $63.00
    70247801
    Front wheel bearing kit for select Allis Chalmers models with the listed hub and axle configurations.Part Number: 70247801FitsAllis Chalmers - D10 (High Clearance sn 9001 & up), D10 (H.D. front axle...
    Add to Cart
