Allis Chalmers D17 Tractor Parts

About the Allis-Chalmers D17

Introduced in 1957, the D17 moved the D Series into the larger row-crop tractor class. It used the Power Director transmission and live PTO, so the operator could shift between ranges with a hand lever while keeping PTO-driven equipment running.

The D17 was built through 1967 in Series I, Series II, Series III, and Series IV versions. Gasoline, LP-gas, and diesel engines were offered during the production run, and the serial number table shows where each series begins.

Serial Number Reference

Serial number locations: The tractor serial number is stamped on the left-front end of the torque housing. The gasoline engine serial number is on the rear left-hand side of the engine block behind the carburetor; diesel engine numbers are on the top left-hand side of the engine block.

The table below shows the beginning tractor serial number for each Model D17 year and series:



1957-1960
Model D17 year Beginning serial number
1957 - Series I 1,001
1958 - Series I 4,300
1959 - Series I 16,500
1960 - Series I 28,200
1960 - Series II 32,001
1961-1964
Model D17 year Beginning serial number
1961 - Series II 33,100
1962 - Series II 38,070
1962 - Series III 42,001
1963 - Series III 65,001
1964 - Series III 70,611
1964-1967
Model D17 year Beginning serial number
1964 - Series IV 75,001
1965 - Series IV 77,090
1966 - Series IV 80,533
1967 - Series IV 86,061

Total production: 84,914 Model D17 tractors (51,598 gas and 12,284 diesel; LP-gas production is unknown).

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Gas Tank Sealer - 1 Quart Can - ACR2043, a silver can with a blue and white label featuring the product name and warning notice.

    Gas Tank Sealer - 1 Quart Can

    Allis-Chalmers
    $69.99
    ACR2043
    Gas tank sealer in a 1 quart can.Part Number: ACR2043FitsAllis-Chalmers - VariousCase - VariousCockshutt - VariousFord - VariousInternational - VariousJohn Deere - VariousMassey Ferguson -...
    Add to Cart
  • Allis-Chalmers Upper Radiator Hose Allis Chalmers D17 Diesel WD45 Diesel 70226893 226893

    Allis Chalmers Upper Radiator Hose for D17 Diesel, WD45 Diesel

    Allis-Chalmers
    $9.00
    70226893
    Upper radiator hose for the Allis Chalmers models listed below.Sold individually; 2 used per tractor.Part Number: 70226893FitsAllis Chalmers D17 DieselAllis Chalmers WD45 DieselReplaces / Cross...
    Add to Cart
  • Allis-Chalmers D Series 3-3/8 Inch Nickel Plated Hole Plug 71995k86, image showing a metal hole plug with a screw and a mounting bracket.

    Allis Chalmers D Series 3-3/8 Inch Nickel Plated Hole Plug 71995k86

    Allis-Chalmers
    $12.00
    71995k86
    Nickel plated 3-3/8 inch snap-in hole plug for Allis Chalmers D Series tractors.Part Number: 71995k86FitsAllis Chalmers D Series TractorsSpecs3-3/8 inchNotesTachometer gauge hole.
    Add to Cart
  • Allis-Chalmers 2 inch Snap-In Hole Plug, Nickel Plated, with one side showing the plug's detailed edge and the other side showing a smooth, metallic surface.

    Allis Chalmers 2" Snap-In Hole Plug, Nickel Plated

    Allis-Chalmers
    $3.00
    9563K54
    Allis Chalmers D Series tractors 2 inch snap-in hole plug in nickel plated finish.Use this plug to cover oil, amp meter, temperature, and traction booster gauge holes.Part Number: 9563K54FitsD Series...
    Add to Cart
  • Allis-Chalmers 7/8 inch Snap-In Hole Plug, Nickel Plated, 9563K46, image showing front and back views of the nickel-plated metal hole plug with a serrated interior for secure fit.

    Allis-Chalmers 7/8" Snap-In Hole Plug, Nickel Plated - 9563K46

    Allis-Chalmers
    $1.50
    9563K46
    OverviewNickel plated 7/8" snap-in hole plug for Allis-Chalmers D Series tractors and cigarette lighter openings. Part Number: 9563K46.FitsAllis-Chalmers D Series tractorsCigarette lighter...
    Add to Cart
  • Allis-Chalmers D Series 1" Snap-In Hole Plug 9563K47, two metallic gold-colored hole plugs with a smooth and textured surface, one with a snap-in design and the other plain.

    Allis-Chalmers D Series 1" Snap-In Hole Plug 9563K47

    Allis-Chalmers
    $1.50
    9563K47
    Nickel-plated 1" snap-in hole plug for Allis-Chalmers D Series tractors.Noted for key ignition switch use.Part Number: 9563K47FitsAllis-Chalmers D Series TractorsSpecsSize: 1 inchNotesKey ignition...
    Add to Cart
  • Allis-Chalmers 11/16 inch Snap-In Hole Plug Nickel Plated Allis Chalmers D Series, product image showing the plug's internal and external views.

    11/16" Snap-In Hole Plug Nickel Plated Allis Chalmers D Series

    Allis-Chalmers
    $1.25
    9563K61
    11/16 inch snap-in hole plug for Allis Chalmers D Series tractors. Nickel plated and described for push button start, fuse holder, and dash light use.Part Number: 9563K61FitsAllis Chalmers D Series...
    Add to Cart
  • Allis-Chalmers D Series 7/16 inch Snap-In Hole Plug 9563K84, metal hole plug with snap-in design for machinery maintenance and repair.

    Allis-Chalmers D Series 7/16" Snap-In Hole Plug 9563K84

    Allis-Chalmers
    $1.00
    9563K84
    Nickel-plated 7/16" snap-in hole plug for Allis-Chalmers D Series tractors.Noted for headlight switch use.Part Number: 9563K84FitsAllis-Chalmers D Series TractorsSpecsSize: 7/16 inchNotesHeadlight...
    Add to Cart
  • Allis-Chalmers 1/2 inch Snap-In Hole Plug, Nickel Plated, with one view showing the plug's interior and the other showing the smooth exterior surface.

    Allis-Chalmers 1/2" Snap-In Hole Plug, Nickel Plated

    Allis-Chalmers
    $1.00
    9563K43
    Part Number: 9563K43Product Overview1/2 inch snap-in hole plug with a nickel plated finish for Allis-Chalmers D Series tractors. Intended for belt pulley rod or knob holes.FitsAllis-Chalmers D Series...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Water Pump - D19 Gas LP, D17 Series III Diesel - 74517362 D19 Diesel

    Water Pump for Allis-Chalmers D17 Series III Diesel, D19 Gas/LP/Diesel

    Allis-Chalmers
    $190.00
    74517362
    New water pump for select Allis-Chalmers tractors. Water pump to block gasket is included.Part Number: 74517362FitsAllis Chalmers - D17 Series III Diesel, D19 (Gas, LP, Diesel)Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Brake Band with Hardware, black brake band and associated mounting hardware for Allis Chalmers models D17, D19, D21, 170, 180, 190, 190XT, 200, with part numbers 70235610 and 70277379.

    Brake Band with Hardware for Allis-Chalmers D17, D19, D21, 170, 175, 180, 185, 190, 190XT, 190XT III, 200

    Allis-Chalmers
    $37.75
    70277379
    Brake band with hardware for select Allis-Chalmers tractors. Sold individually and includes the hardware kit.Part Number: 70277379FitsAllis Chalmers - D17 (SN 42001 and up), D19, D21, 170, 175, 180,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers D17 D19 170 180 190 200 Clutch Shaft Seal 70235253 235253

    Allis Chalmers D17 D19 170 175 180 185 190 190XT 200 Clutch Seal

    Allis-Chalmers
    $21.65
    70235253
    Clutch shaft seal for Allis Chalmers tractors listed below.Use this part for the models shown in the fits section.Part Number: 70235253FitsAllis Chalmers D17Allis Chalmers D19Allis Chalmers 170Allis...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Fuel Gauge Screw Set 70918548

    Allis Chalmers Fuel Gauge Screw Set

    Allis-Chalmers
    $13.00
    70918548
    Part Number: 70918548Allis Chalmers Fuel Gauge Screw SetFuel gauge screw set for select Allis Chalmers tractors. This set includes 4 screws and replaces 70918548.FitsAllis Chalmers D10Allis Chalmers...
    Add to Cart
  • Allis-Chalmers 180 Degree Thermostat - Allis Chalmers - 74025103

    180 Degree Thermostat - Allis-Chalmers

    Allis-Chalmers
    $11.75
    74025103
    180 Degree Thermostat for select Allis Chalmers tractors and equipment.Part Number: 74025103FitsAllis Chalmers D17Allis Chalmers D19Allis Chalmers D21Allis Chalmers 180Allis Chalmers 185Allis...
    Add to Cart

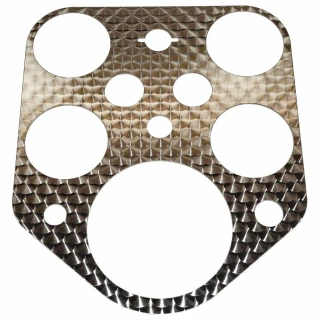

  • Allis-Chalmers Allis Chalmers D15 D17 D19 Instrument Panel Trim

    Allis-Chalmers D15 D17 D19 Instrument Panel Trim

    Allis-Chalmers
    $78.75
    AC-353D
    Stainless steel instrument panel trim with a 1/2" swirl, machine turned design.Part Number: AC-353DFitsAllis Chalmers D19Allis Chalmers D17 (SN: 32001 - 75000)Allis Chalmers D15 (SN: 9001 &...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Power Director Light Bulb 9527T602

    Allis-Chalmers Power Director Light Bulb

    Allis-Chalmers
    $3.00
    9527T602
    Bulb for the Power Director Light Assembly on select Allis-Chalmers tractors.Part Number: 9527T602FitsAllis Chalmers D14Allis Chalmers D15Allis Chalmers D17Allis Chalmers D19Allis Chalmers D21Allis...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Power Director Light Lens - Red Lens 70240838 240838

    Allis-Chalmers Power Director Light Lens - Red Lens

    Allis-Chalmers
    $13.75
    70240838-R
    Red Power Director light lens for select Allis-Chalmers tractors.Part Number: 70240838-RFitsAllis Chalmers D17Allis Chalmers D19Allis Chalmers D21Allis Chalmers 170Allis Chalmers 175Allis Chalmers...
    Add to Cart
  • Allis-Chalmers Black Cigarette Lighter w/ Cigarette on Knob - JD-974BD

    Black Cigarette Lighter with Cigarette on Knob JD-974BD

    Allis-Chalmers
    $19.75
    JD-974BD
    Black cigarette lighter with a cigarette design on the knob. Listed under part number JD-974BD.Part Number: JD-974BDSpecsBlack cigarette lighterCigarette design on knobNotesCompare knob style before...
