Allis Chalmers D17 Tractor Parts

About the Allis-Chalmers D17

Introduced in 1957, the D17 moved the D Series into the larger row-crop tractor class. It used the Power Director transmission and live PTO, so the operator could shift between ranges with a hand lever while keeping PTO-driven equipment running.

The D17 was built through 1967 in Series I, Series II, Series III, and Series IV versions. Gasoline, LP-gas, and diesel engines were offered during the production run, and the serial number table shows where each series begins.

Serial Number Reference

Serial number locations: The tractor serial number is stamped on the left-front end of the torque housing. The gasoline engine serial number is on the rear left-hand side of the engine block behind the carburetor; diesel engine numbers are on the top left-hand side of the engine block.

The table below shows the beginning tractor serial number for each Model D17 year and series:



1957-1960
Model D17 year Beginning serial number
1957 - Series I 1,001
1958 - Series I 4,300
1959 - Series I 16,500
1960 - Series I 28,200
1960 - Series II 32,001
1961-1964
Model D17 year Beginning serial number
1961 - Series II 33,100
1962 - Series II 38,070
1962 - Series III 42,001
1963 - Series III 65,001
1964 - Series III 70,611
1964-1967
Model D17 year Beginning serial number
1964 - Series IV 75,001
1965 - Series IV 77,090
1966 - Series IV 80,533
1967 - Series IV 86,061

Total production: 84,914 Model D17 tractors (51,598 gas and 12,284 diesel; LP-gas production is unknown).

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Distributor Hold Down Clamp, a metallic mechanical component used for securing distributor assemblies in agricultural or industrial machinery.

    Distributor Hold Down Clamp

    Allis-Chalmers
    $7.75
    AB-2523D
    Distributor hold down clamp for Delco distributor applications. Sold individually and used 2 per engine.Part Number: AB-2523DFitsAllis Chalmers - B, C, CA, D10, D12, D14, D15, D17, IB, WC, WD, WD45,...
    Add to Cart
  • Allis-Chalmers Orange Tractor Seat Pad Cushion 19" Allis Chalmers Case

    Orange Tractor Seat Pad Cushion 19"

    Allis-Chalmers
    $39.75
    YF30ORG
    Orange tractor seat pad cushion with drawstring. Fits listed Allis-Chalmers, Case, and Cockshutt tractors with round pan seats.Part Number: YF30ORGFitsAllis Chalmers - B, C, CA, D10, D12, D14, D15,...
    Add to Cart
  • Allis-Chalmers Clutch Throw Out Bearing - Allis Chalmers, International

    Clutch Throw Out Bearing - Allis Chalmers, International

    Allis-Chalmers
    $47.75
    AB-1928D
    Clutch throw out bearing for select Allis Chalmers and International applications, with listed dimensions preserved exactly as supplied.Part Number: AB-1928DFitsAllis Chalmers - B, IB (Using 8 1/2"...
    Add to Cart
  • Allis-Chalmers Brake Drum for Allis Chalmers D17 WD WD45, cylindrical metal brake drum with central hub and mounting features.

    Brake Drum for Allis Chalmers D17 WD WD45

    Allis-Chalmers
    $99.75
    AC-1995D
    Brake drum for select Allis Chalmers D17, WD, and WD45 applications.Part Number: AC-1995DFitsAllis Chalmers - D17 (Up to SN: 42000), WD, WD45 (Gas & Diesel)Replaces / Cross Reference70232585,...
    Add to Cart

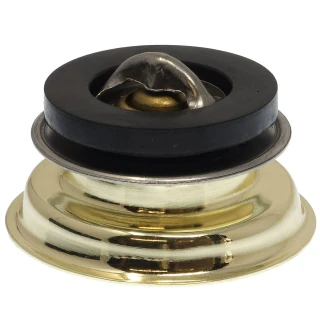

  • Allis-Chalmers THERMOSTAT Allis Chalmers B C CA IB WD45 D17 D10 D12 D14 D15 170 175

    Thermostat for Allis-Chalmers B, C, CA, IB, WD45, D17, D10, D12, D14, D15, H3, 170, 175

    Allis-Chalmers
    $28.75
    ACR2225
    180 DegreesThermostat for select Allis-Chalmers, Case, Cockshutt, Massey Ferguson, and Massey Harris applications.Part Number: ACR2225FitsAllis Chalmers: B, C, CA, IB, WD45, D17, D10, D12, D14, D15,...
    Add to Cart
  • Allis-Chalmers Lower Radiator Hose for Allis-Chalmers D17 Diesel, D19 Gas, black rubber hose with a curved shape.

    Lower Radiator Hose for Allis-Chalmers D17 Diesel, D19 Gas

    Allis-Chalmers
    $21.75
    70235356
    Part Number: 70235356Allis-Chalmers Lower Radiator HoseLower radiator hose for Allis-Chalmers D17 Diesel and D19 Gas models. Serial note for D17 Diesel is after serial number 38964.FitsAllis-Chalmers...
    Add to Cart
  • Allis-Chalmers Right Hand Side Panel - Allis Chalmers D17 Series III, IV, D19 - ACR4030

    Allis-Chalmers D17 Series III, IV & D19 Right Hand Side Panel

    Allis-Chalmers
    $78.75
    ACR4030
    Right Hand Side Panel for the right hand side of Allis-Chalmers tractors.New part for D17 Series III, IV, and D19.Part Number: ACR4030FitsAllis-Chalmers D17 Series IIIAllis-Chalmers D17 Series...
    Add to Cart
  • Allis-Chalmers Allis Chalmers D17 D19 Starter Drive Bendix 70231310

    Allis Chalmers D17 D19 Starter Drive 70231310

    Allis-Chalmers
    $79.00
    70231310
    Allis Chalmers D17 and D19 starter drive with 9 teeth.Use this part with Delco starters 1107235 and 1107695.Part Number: 70231310FitsAllis Chalmers D17Allis Chalmers D19Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Steering Wheel Roll Pin Allis Chalmers D14 D17 RC WC WD WD45 WF

    Allis Chalmers Steering Wheel Roll Pin for D14 D17 RC WC WD WD45 WF

    Allis-Chalmers
    $1.50
    A951
    Steering wheel roll pin for Allis Chalmers tractors.Part Number: A951FitsAllis Chalmers D14Allis Chalmers D17Allis Chalmers RCAllis Chalmers WCAllis Chalmers WDAllis Chalmers WD45Allis Chalmers...
    Add to Cart
  • Allis-Chalmers Thumb Screw 5/16"-18

    Allis-Chalmers Thumb Screw 5/16"-18

    Allis-Chalmers
    $2.50
    97008A726
    Allis-Chalmers Thumb Screw 5/16"-18New thumb screw with 5/16"-18 threads and 1/2" threaded length.Part Number: 97008A726FitsAllis-Chalmers D10Allis-Chalmers D12Allis-Chalmers D14Allis-Chalmers...
    Add to Cart
  • Allis-Chalmers Thumb Screw for Grille Screen 3/8"-16 - 97008A816

    Thumb Screw for Grille Screen 3/8"-16

    Allis-Chalmers
    $2.25
    97008A816
    Thumb screw for grille screens on Allis Chalmers D-Series tractors.Used where the thread hole has been enlarged. Oversize 3/8" - 16.Part Number: 97008A816FitsAllis Chalmers D10Allis Chalmers D12Allis...
    Add to Cart
  • Allis-Chalmers Zenith Viton Needle Float Valve | Allis Chalmers WD45 D17 | C403V 70223909

    Zenith Viton Needle Float Valve for WD45 D17 C403V

    Allis-Chalmers
    $19.00
    C403V
    Zenith Viton needle float valve for Allis Chalmers WD45 and D17 tractors. Listed as a replacement for 70223909.Part Number: C403VFitsAllis Chalmers WD45Allis Chalmers D17Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - Black 2 inches, black fabric strap for fuel tank securing

    Allis-Chalmers Fuel Tank Webbing - Black 2"

    Allis-Chalmers
    $2.75
    351T84
    Black fuel tank webbing sold per foot. Fits tractors using webbed insulation between fuel tank mounts and sheet metal parts.Part Number: 351T84FitsAllis Chalmers: variousCase: Fits various...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - Tan 1-inch, durable and flexible strap for fuel tank protection and reinforcement.

    Allis-Chalmers Fuel Tank Webbing - Tan 1"

    Allis-Chalmers
    $3.25
    3531T51
    Tan fuel tank webbing sold per foot. Fits tractors using webbed insulation between fuel tank mounts and sheet metal parts.Part Number: 3531T51FitsAllis Chalmers: Fits various modelsCase: Fits various...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - White 1, white webbing roll for fuel tank protection and securement.

    Allis-Chalmers Fuel Tank Webbing - White 1"

    Allis-Chalmers
    $1.75
    88445K45
    White fuel tank webbing sold per foot. Fits tractors using webbed insulation between fuel tank mounts and sheet metal parts.Part Number: 88445K45FitsAllis Chalmers: variousCase: variousCockshutt:...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - Tan 2 inch, coiled webbing strap for fuel tank applications, priced per foot.

    Fuel Tank Webbing - Tan 2" - Price Per Foot

    Allis-Chalmers
    $5.65
    3531T53
    Fuel tank webbing for tractors using webbed insulation between the fuel tank mounts and sheet metal parts. Sold by the foot.Part Number: 3531T53FitsAllis-Chalmers - various modelsCase - various...
    Add to Cart
  • Allis-Chalmers Fuel Tank Webbing - White 1-1/2 inch, price per foot, coiled webbing for fuel tank reinforcement or sealing.

    Fuel Tank Webbing - White 1-1/2" - Price Per Foot

    Allis-Chalmers
    $1.95
    88445k46
    Fuel tank webbing for tractors using webbed insulation between the fuel tank mounts and sheet metal parts. Sold by the foot.Part Number: 88445k46FitsAllis-Chalmers - various modelsCase - various...
    Add to Cart
  • Allis-Chalmers Seat Adjustment Bolt, metal bolt with a wing nut at one end and a rounded head at the other for seat positioning adjustment.

    Allis Chalmers Seat Adjustment Bolt

    Allis-Chalmers
    $9.00
    SEAT002
    Allis Chalmers seat adjustment bolt with listed replacements for the bolt and wing nut.Part Number: SEAT002FitsAllis Chalmers: D10, D12, D14, D15, D17, D19, D21, 170, 175, 180, 185, 190, 190XT, 200,...
    Add to Cart
