Allis Chalmers D15 Tractor Parts

About the Allis-Chalmers D15

The D15 replaced the D14 in 1960 and carried the compact D Series design into the 1960s. Early D15 tractors used a four-cylinder engine available in gasoline, LP gas, or diesel versions, with more power and an eight-speed transmission option.

There are two main versions to keep in mind: Series I was built from 1960 through 1962, and Series II from 1963 through 1968. Series II tractors received larger gas and LP engines, a dry air cleaner, headlights moved to the rear fenders, and updated hood decals. These changes are why the model year and serial number should be checked before ordering a D15 part.

Serial Number Reference

Serial number locations: On Series I tractors, the tractor serial number is stamped at the left front end of the torque housing. The gasoline engine serial number is on the rear left-hand side behind the carburetor, and the diesel engine serial number is on the top left-hand side of the engine block. On Series II tractors, the tractor serial number is stamped into the flange where the engine and transmission meet on the left side; gasoline engine numbers are at the rear left-hand side near the carburetor, and diesel numbers are on the top left-hand side of the cylinder block.

The table below shows the beginning tractor serial number for each Model D15 year and series:



1960-1962
Model D15 year Beginning serial number
1960 - Series I 1,001
1961 - Series I 1,900
1962 - Series I 6,470
1963-1965
Model D15 year Beginning serial number
1963 - Series II 13,001
1964 - Series II 16,928
1965 - Series II 19,681
1966-1968
Model D15 year Beginning serial number
1966 - Series II 21,375
1967 - Series II 23,734
1968 - Series II 25,127

Total production: 7,169 Model D15 tractors: 6,212 gas/LP and 957 diesel.

Allis-Chalmers D15 Paint Reference

For restoration planning, the Allis-Chalmers D15 is listed in the Allis-Chalmers tractor paint guide with the original paint references below.

Allis-Chalmers D15 paint reference by production period
Production period Metal Wheels Disc Chassis Trim
1961 through 1977 Persian Orange 2 Cream, Persian Orange 2 Cream, Aluminum Persian Orange 2 Cream grille

Paint placement can vary by production year, series, and equipment configuration.

Sort By:

Display Type:
Filters
  • A cylindrical grey bushing with a hollow center, designed for Allis-Chalmers farm tractors. The product is identified as Upper Seat Spacer Pivot Bushing with the part number 70227915.

    Allis-Chalmers Upper Seat Spacer Pivot Bushing 70227915

    Allis-Chalmers
    $13.75
    70227915
    Upper seat spacer, pivot for shock absorber for Allis-Chalmers tractors.Sold individually; 2 per tractor.Part Number: 70227915FitsD10D12D14D15D17D19D21170175180185190190XT200210220Replaces / Cross
  • Allis-Chalmers Side Name Plate Emblem for D10 D12 D15 D17 models, featuring black raised lettering on a cream background with mounting holes.

    Allis Chalmers Side Name Plate Emblem D10 D12 D15 D17

    Allis-Chalmers
    $79.75
    ACR4421
    Allis Chalmers Side Name Plate Emblem for D10, D12, D15, and D17.1961-1963 style with creme background and black lettering.Part Number: ACR4421FitsAllis Chalmers - D10, D12, D15, D17Replaces / Cross...
  • Round Allis-Chalmers tractor fuel gauge with a chrome-colored bezel, white dial marked FUEL LEVEL, E, 1/2, and F, a red low-fuel segment, and a black needle pointing near empty.

    Allis Chalmers Fuel Gauge

    Allis-Chalmers
    $51.50
    DJS70240988
    Aftermarket fuel gauge made just like the original ones that came on the tractor when new. Made to give it that original look. Part Number: DJS70240988 Fits Allis Chalmers D21 Allis Chalmers...
  • Allis-Chalmers Carb Elbow and Strainer Assembly

    Carb Elbow and Strainer Assembly

    Allis-Chalmers
    $8.75
    AB-297D
    Carb elbow and strainer assembly for Allis-Chalmers and other listed tractors. New part with male end screen end 1/8" pipe thread and female end 1/4" flare.Part Number: AB-297DFitsAllis...
  • Aftermarket In-Line Fuel Filter AB-490D

    In-Line Fuel Filter for Various Models

    Aftermarket
    $12.95
    AB-490D
    In-line fuel filter for various models using 3/8" fuel lines. Includes hose and clamps.Use to help keep rust and dirt out of the carburetor.Part Number: AB-490DFitsAllis...
  • Allis-Chalmers Delco Distributor Terminal Insulator Assembly Square Style, black plastic insulator with metal terminal connectors on each end.

    Delco Distributor Terminal Insulator Assembly Square Style - AB-500D

    Allis-Chalmers
    $15.00
    AB-500D
    Delco Distributor Terminal Insulator Assembly, Square StyleImportant: AB-500D is a square-style Delco distributor terminal insulator assembly. It is for Delco distributors only and will not fit IH...
  • 160-degree thermostat assembly for an Allis-Chalmers farm tractor, shown with a black rubber ring and a brass-colored cap.

    160 Degree Thermostat - Allis Chalmers, Case, Cockshutt, Massey Ferguson

    Allis-Chalmers
    $34.00
    AB-1898D
    160 degree thermostat for select Allis Chalmers, Case, Cockshutt, Massey Ferguson, and Massey Harris models.Part Number: AB-1898DFitsAllis Chalmers - D10, D12, D14, D15 with 4 bolt housing. WD, WD45,...
  • Black curved rubber hose for an Allis-Chalmers D15 Series II tractor, connecting the carburetor to the air cleaner, shown on a white background.

    Allis-Chalmers D15 Series II Carburetor to Air Cleaner Tube Hose

    Allis-Chalmers
    $38.50
    70237760
    Carburetor to air cleaner tube hose for Allis-Chalmers D15 Series II tractors. Fits serial number 9001 and up.Part Number: 70237760FitsAllis-Chalmers D15 Series II, serial number 9001 and upReplaces...
  • Allis-Chalmers Sediment Glass Bowl Only, clear glass sediment bowl with metal rim for industrial or agricultural equipment.

    Sediment Glass Bowl Only

    Allis-Chalmers
    $4.00
    AB-123D
    Replacement sediment glass bowl only for listed tractor applications. Fits multiple Allis-Chalmers, Case, Ford, International, John Deere, Massey Ferguson, Oliver, and White models.Part Number:...
  • Bright orange, rounded Allis-Chalmers farm tractor seat cushion with a raised padded rim and smooth center, shown against a white background.

    Orange Tractor Seat Pad Cushion 19"

    Allis-Chalmers
    $39.75
    YF30ORG
    Orange tractor seat pad cushion with drawstring. Fits listed Allis-Chalmers, Case, and Cockshutt tractors with round pan seats.Part Number: YF30ORGFitsAllis Chalmers - B, C, CA, D10, D12, D14, D15,...
  • Black-and-white Allis-Chalmers farm tractor seat cushion bottom mounted on a wooden base, shown from above.

    Black & White Seat Cushion Bottom on Wood - Allis Chalmers

    Allis-Chalmers
    $118.75
    ACR0852
    Black & white vinyl seat cushion bottom on wood frame for listed Allis Chalmers models.Part Number: ACR0852FitsAllis Chalmers: D10, D12, D14, D15, D17, D19, D21, 170, 175, 180, 185, 190, 190XT, 200,...
  • Allis-Chalmers farm tractor steering shaft cross-and-bearing U-joint assembly, shown with four bearing caps, four retaining clips, and a grease fitting.

    Steering Shaft Cross and Bearing U-Joint for Allis-Chalmers

    Allis-Chalmers
    $17.75
    AB-2507D
    Allis Chalmers - D14, D15, D17, D19, RC, WC, WF (when using later style steering joint # 224825), WD, WD45 (dsl); Replacement for: 70224890, 224890 Case - 200B, 210B, 211B, 300B, 301B, 302B, 310B,...
  • Round Allis-Chalmers ammeter gauge for farm tractors, marked AMPERES with a 60-0-60 scale, negative and positive indicators, and a central needle at zero.

    OEM Allis Chalmers Ammeter Gauge 60-0-60

    AGCO
    $44.50
    70254407
    OEM AGCO ammeter gauge marked Amperes 60-0-60 for listed Allis Chalmers tractors and power units.Part Number: 70254407FitsAllis Chalmers D10Allis Chalmers D12Allis Chalmers D14Allis Chalmers D15Allis...
  • Black Allis-Chalmers tractor clutch alignment tool, with a circular eye at one end, a long slotted tapered body, and a narrow shaft at the other end, shown on a white background.

    Clutch Alignment Tool Allis Chalmers B C CA D10 D12 D14 D15

    Allis-Chalmers
    $13.50
    DJS14522
    Clutch alignment tool for Allis Chalmers B, C, CA, IB, D10, D12, D14, D15, H3, HD3, I500, and I600.Plastic tool that fits both 8-1/2" and 9" clutch assemblies.Part Number: DJS14522FitsAllis Chalmers...
  • Brass Allis-Chalmers carburetor fuel bowl or LP regulator drain cock, part number 70915514, with a threaded body, hex nut, and flat metal wing handle.

    Carburetor Fuel Bowl Drain Cock, LP Regulator Drain Cock for Allis-Chalmers 70915514

    Allis-Chalmers
    $7.75
    70915514
    Carburetor fuel bowl drain cock and LP regulator drain cock for listed Allis-Chalmers models. Includes 1/8" NPT and replacement 70915514.Part Number: 70915514FitsAllis Chalmers WC (Zenith & Marvel...

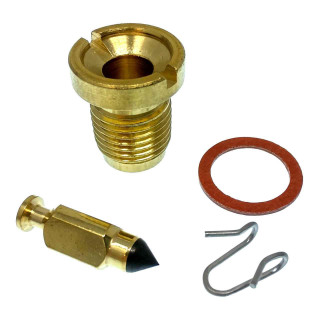

  • Replacement Viton needle float valve and threaded brass seat with copper-colored gasket and metal retaining clip for Marvel-Schebler carburetors on Allis-Chalmers farm tractors.

    Viton Needle Float Valve & Seat - Marvel Schebler Carburetors

    Allis-Chalmers
    $8.00
    AB-133D
    Viton needle float valve & seat for Marvel Schebler carburetors.Part Number: AB-133DFitsAllis Chalmers WD45Allis Chalmers D15 (Sn# 9001-Up)Allis Chalmers D17Allis Chalmers D19Allis Chalmers 170Allis...
  • Allis-Chalmers Allis Chalmers Steering Wheel Emblem With Decal Front Emblem D10 D12 D15 D17 D21 70246724

    Allis Chalmers Steering Wheel Emblem with Decal

    Allis-Chalmers
    $39.75
    A9904
    Allis Chalmers Steering Wheel Emblem with Decal fits as a steering wheel cap or a front emblem.Die cast, chromed construction with decal.Part Number: A9904FitsAllis Chalmers - Late: D10, D12, D15,...
  • Allis-Chalmers Spark Plug Wiring Set with 90 Degree Boots - FD-149D, black spark plug wires with 90 degree boots, includes four wire connectors and six brass terminals.

    Spark Plug Wiring Set w/90 Degree Boots - FD-149D

    Allis-Chalmers
    $18.00
    FD-149D
    Spark plug wiring set with 90 degree boots. Cut-to-length wires with copper core construction, aluminum coating for corrosion resistance, and waterproof neoprene boots. This set is listed for many...
