Allis Chalmers D15 Tractor Parts

About the Allis-Chalmers D15

The D15 replaced the D14 in 1960 and carried the compact D Series design into the 1960s. Early D15 tractors used a four-cylinder engine available in gasoline, LP gas, or diesel versions, with more power and an eight-speed transmission option.

There are two main versions to keep in mind: Series I was built from 1960 through 1962, and Series II from 1963 through 1968. Series II tractors received larger gas and LP engines, a dry air cleaner, headlights moved to the rear fenders, and updated hood decals. These changes are why the model year and serial number should be checked before ordering a D15 part.

Serial Number Reference

Serial number locations: On Series I tractors, the tractor serial number is stamped at the left front end of the torque housing. The gasoline engine serial number is on the rear left-hand side behind the carburetor, and the diesel engine serial number is on the top left-hand side of the engine block. On Series II tractors, the tractor serial number is stamped into the flange where the engine and transmission meet on the left side; gasoline engine numbers are at the rear left-hand side near the carburetor, and diesel numbers are on the top left-hand side of the cylinder block.

The table below shows the beginning tractor serial number for each Model D15 year and series:



1960-1962
Model D15 year Beginning serial number
1960 - Series I 1,001
1961 - Series I 1,900
1962 - Series I 6,470
1963-1965
Model D15 year Beginning serial number
1963 - Series II 13,001
1964 - Series II 16,928
1965 - Series II 19,681
1966-1968
Model D15 year Beginning serial number
1966 - Series II 21,375
1967 - Series II 23,734
1968 - Series II 25,127

Total production: 7,169 Model D15 tractors: 6,212 gas/LP and 957 diesel.

Filter By

Sort By:

Display Type:
Filters
  • Allis-Chalmers Chrome Dash Light Cover, shiny metallic chrome dash light cover with a smooth, rounded top surface.

    Allis-Chalmers Chrome Dash Light Cover

    Allis-Chalmers
    $18.99
    JD-589CHD
    Chrome dash light cover for select Allis-Chalmers, John Deere, and MM tractors. This 1-1/4 inch diameter chrome cover is for 2-screw style dash lights.Part Number: JD-589CHDFitsAllis Chalmers: D10,...
    Add to Cart
  • Allis-Chalmers Battery Cable 9" Non-Insulated Ground Cable AB-411D, a braided metal ground cable with a ring terminal at one end for battery connections.

    Battery Cable 9" Non-Insulated Ground Cable AB-411D

    Allis-Chalmers
    $18.75
    AB-411D
    Battery Cable 9" Non-Insulated Ground CableHeavy-duty 2 gauge battery cable with straight terminals. This 9" non-insulated ground cable is listed for select tractor applications.FitsAllis Chalmers -...
    Add to Cart
  • Allis-Chalmers Grill Screen for Allis-Chalmers D10 D12 D14 D15 D17 D19, square metal grill screen with grid pattern.

    Grill Screen for Allis-Chalmers D10 D12 D14 D15 D17 D19

    Allis-Chalmers
    $87.50
    ATC9918
    Grill screen for Allis-Chalmers D Series tractors. Can be used for replacing 100 and 200 Series grill screens.Part Number: ATC9918FitsAllis Chalmers: D Series (Late), D10, D12, D14, D15, D17,...
    Add to Cart
  • Allis-Chalmers Allis Chalmers Side Nameplate Rivets & Steel Clips Set - DJS015

    Allis-Chalmers Side Nameplate Rivets & Steel Clips Set

    Allis-Chalmers
    $19.75
    DJS015
    Part Number: DJS015Allis-Chalmers Side Nameplate Rivets & Steel Clips SetSet includes 14 aluminum rivets and 14 steel clips. For select Allis-Chalmers tractor side nameplates...
    Add to Cart
  • Allis-Chalmers Battery Cable 21" (Insulated) - AB-417D, black insulated battery cable with metal terminal end for connecting to batteries.

    Battery Cable 21" Insulated AB-417D

    Allis-Chalmers
    $19.75
    AB-417D
    Battery Cable 21" Insulated - AB-417D21-inch insulated battery cable with heavy-duty straight terminals and 2 gauge construction.Replacement for AM349T.FitsAllis Chalmers - variousCase -...
    Add to Cart
  • Allis-Chalmers Water Temperature Gauge, industrial water temperature meter with 130-280 degree range, with metal mounting and coiled sensor cable.

    Allis-Chalmers Water Temperature Gauge 130-280 Degree Range

    Allis-Chalmers
    $26.75
    UTG25
    Part Number: UTG25OverviewWater temperature gauge with a 130-280 degree range. Dash mount design with block fitting and chrome bezel included.Specs130-280 degree rangeDash mountIncludes block...
    Add to Cart
  • Allis-Chalmers UNIVERSAL STEERING JOINTS REPAIR KIT Allis Chalmers D14 D15 D17 D19 70228906

    Universal Steering Joints Repair Kit for Allis-Chalmers D14 D15 D17 D19

    Allis-Chalmers
    $123.00
    70228906
    Universal Steering Joints Repair Kit for select Allis-Chalmers tractors.Fits 7/8" (0.875) dia shaft both ends and includes yokes, pins, and grease fitting.Part Number: 70228906FitsAllis Chalmers -...
    Add to Cart
  • Allis-Chalmers Hydraulic Pump Screen Gasket Allis Chalmers D14 D15 D17 D19 70233249 233249

    Allis Chalmers Hydraulic Pump Screen Gasket for D14 D15 D17 D19

    Allis-Chalmers
    $18.75
    70233249
    Part Number: 70233249Allis Chalmers Hydraulic Pump Screen GasketOEM AGCO brand hydraulic pump screen gasket for the listed Allis Chalmers tractors.FitsAllis Chalmers D14Allis Chalmers D15Allis...
    Add to Cart
  • Allis-Chalmers 12 Volt Voltage Regulator Allis Chalmers (WD45 D15 D17 All Diesel)

    12 Volt Voltage Regulator for Allis-Chalmers WD45 D15 D17 Diesel

    Allis-Chalmers
    $38.00
    ACR6368
    12 volt voltage regulator for select Allis-Chalmers and other tractor applications.This is a 12 V voltage regulator saddle mount.Part Number: ACR6368FitsAllis Chalmers - [WD45 Diesel, D15 Diesel, D17...
    Add to Cart
  • Allis-Chalmers LOWER WATER PIPE | Allis Chalmers D10 D12 D14 D15

    Allis-Chalmers Lower Water Pipe for D10 D12 D14 D15 | AC-249D

    Allis-Chalmers
    $39.75
    AC-249D
    Lower water pipe for Allis-Chalmers D10, D12, D14, and D15. Fits gas and LP models. SKU AC-249D.Part Number: AC-249DFitsAllis-Chalmers D10Allis-Chalmers D12Allis-Chalmers D14Allis-Chalmers...
    Add to Cart
  • Allis-Chalmers Delco Starter Commutator Brush Band Cover, metallic band with mounting screw for engine starter repair.

    Delco Starter Commutator Brush Band Cover

    Allis-Chalmers
    $19.75
    AB-1203D
    Delco starter commutator (brush) band cover for select Allis-Chalmers and other tractor models.Made in the USA. Comes complete as shown, with screw and nut.Part Number: AB-1203DFitsAllis Chalmers...
    Add to Cart

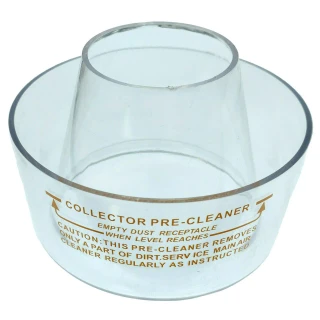

  • Allis-Chalmers 5-1/2 Small Pre-Cleaner Bowl, clear plastic collector pre-cleaner bowl with label and instructions.

    Allis-Chalmers 5-1/2" Small Pre-Cleaner Bowl AB-484D

    Allis-Chalmers
    $24.75
    AB-484D
    Product Overview5-1/2" small pre-cleaner bowl in clear plastic. Use the fitment and dimensions below to compare against your original part.Replacement / cross reference: abc484FitsAllis-Chalmers -...
    Add to Cart
  • Allis-Chalmers Threaded Hub Cap 70220403, silver metal wheel hub cover for tractor or machinery application.

    Allis-Chalmers Threaded Hub Cap 70220403

    Allis-Chalmers
    $18.75
    70220403
    Threaded hub cap for Allis-Chalmers tractors.Part Number: 70220403FitsD15D17D19170175180185190190XT20060706080Replaces / Cross Reference70220403NotesThreaded hub cap
    Add to Cart
  • Allis-Chalmers Allis Chalmers Valve Train Kit B C IB RC CA

    Allis Chalmers Valve Train Kit B C IB RC CA

    Allis-Chalmers
    $124.75
    AC-2129D
    Valve train kit for select Allis Chalmers models. Includes the listed replacement parts and usage notes.Part Number: AC-2129DFitsB, C, IB, RC (with engine serial numbers CE161057 and above)CAD10 (up...
    Add to Cart
  • Allis-Chalmers Air Filter Allis Chalmers D15 5040 5045 5050 70239518

    Allis-Chalmers D15 5040 5045 5050 Air Filter 70239518

    Allis-Chalmers
    $39.50
    70239518
    Part Number: 70239518Air FilterAir filter for listed Allis-Chalmers models.FitsAllis-Chalmers D15Allis-Chalmers 5040Allis-Chalmers 5045Allis-Chalmers 5050Replaces / Cross...
    Add to Cart
  • Allis-Chalmers Zenith Carb Float for Allis-Chalmers WD45, D15, D17, vintage tractor parts, brass carburetor float with metal mounting bracket.

    Zenith Carb Float for Allis-Chalmers WD45, D15, D17

    Allis-Chalmers
    $24.75
    AB-452D
    Zenith carb float for the listed applications. Verify the carburetor manufacturer number before ordering, since fitment depends on the carb MFG number.Part Number: AB-452DFitsAllis-Chalmers: WD45,...
    Add to Cart
  • Allis-Chalmers D14 D15 Clutch Inspection Cover Plate 227610, round orange metal cover with two holes, with metal clips attached.

    Allis-Chalmers D14 D15 Clutch Inspection Cover Plate 227610

    Allis-Chalmers
    $19.75
    AC-1507D
    Clutch inspection cover plate for Allis-Chalmers D14 and D15 tractors. Replaces: 227610, 70227610 Note: May vary in color. Primed for convenience. Part Number: AC-1507DFits Allis-Chalmers D14 ...
    Add to Cart
  • Allis-Chalmers 1 Wire Mini Alternator with Pulley 35 Amp 1/2 Pulley

    1 Wire Mini Alternator with Pulley 35 Amp

    Allis-Chalmers
    $199.50
    AB-535D
    1 wire mini alternator with pulley, 35 amp. Used to convert 6 volt systems to 12 volt systems on negative ground systems only. Preferred for tractors requiring a smaller diameter alternator for...
    Add to Cart
